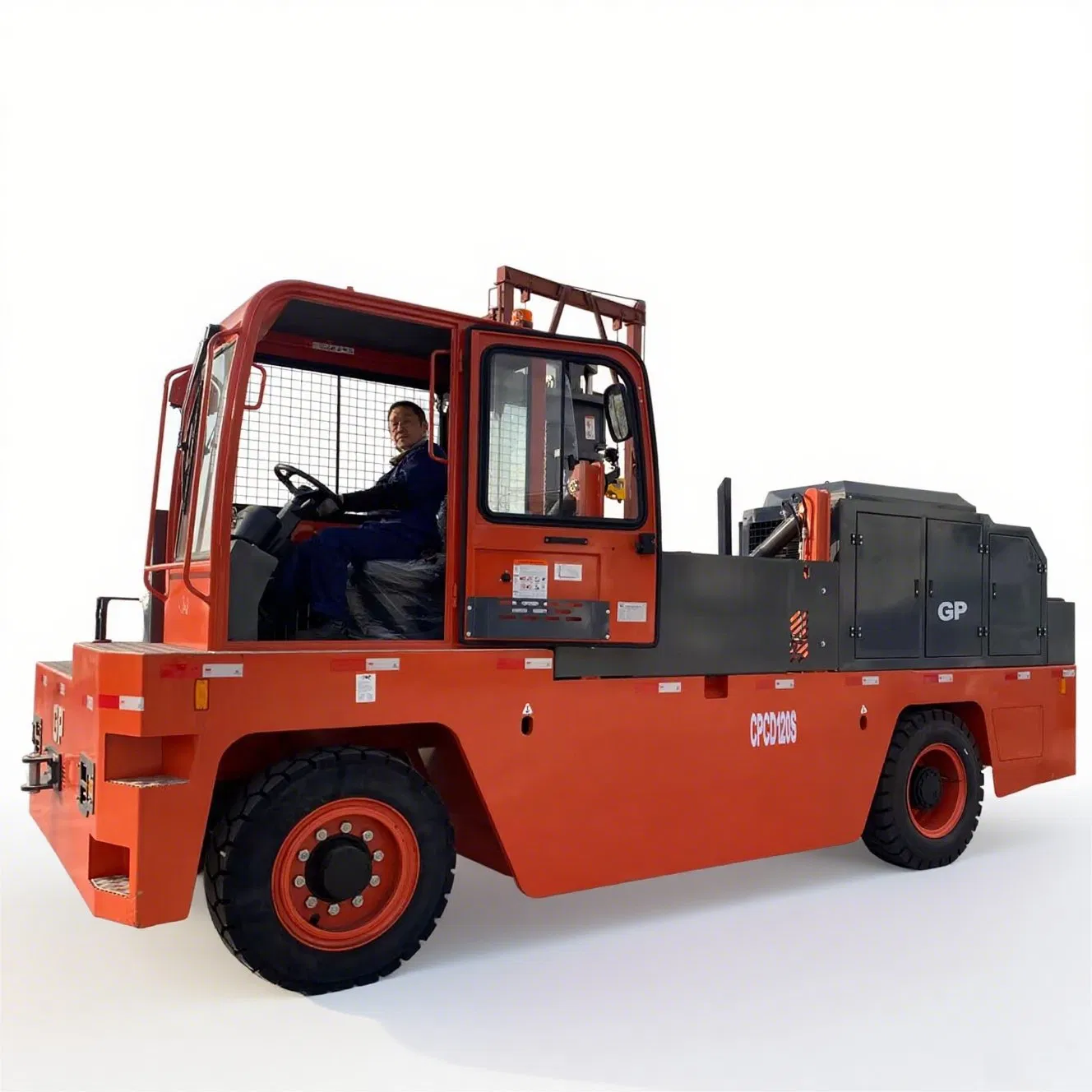

12ton Heavy-Duty Diesel Side Loader Weichai/Cummins Power 3.6m Lift Tier 4 Engine Port & Logistics PRO

Customization: Available
After-sales Service: 1years
Warranty: 1 Years

Product Description

i

Basic Specifications

Model:
CPCD120S
Type:
Side Loader
Power Source:
Diesel Engine
Load Capacity:
10T - 18T
Lift Height:
3000~5000mm
Load Center:
>500mm
Cab Location:
Adjustable
Tyre Type:
Pneumatic
Fork Size:
1520*180*100
Dimensions:
6250*2620*2960

Product Description

The side forklift truck is a specialized material handling solution designed for long and bulky cargoes. Unlike traditional counterbalanced forklifts, the forks are mounted on the side of the body. In addition to lifting and tilting, the forks can traverse to the right side of the truck frame and retract back into the middle section.

This unique design allows long cargoes to be loaded lengthwise along the truck deck, significantly reducing the width of the passageway required. It is particularly suitable for handling timber, section steels, line poles, cement tubes, plastic pipes, and other over-length materials. It is widely used in railway stations, oilfields, harbours, warehouses, and construction sites.

📋

Technical Parameters

Main Parameters Unit CPCD100S CPCD120S
Rated load capacityKg1000012000
Load centremm600600
Maximum Lifting Heightmm35003600
Maximum Lifting Speed (laden)mm/s350315
Tilting Angle (up/down)°5°/3°5°/3°
Grade Ability (laden)%20%20%
Overall Dimension (L*W*H)mm6250*2620*29606250*2620*2960
Platform Widthmm18001800
Self-Weightkg1560015800
Engine PowerKw84.6/250092/2500
Fuel tank capacityL260260
📷

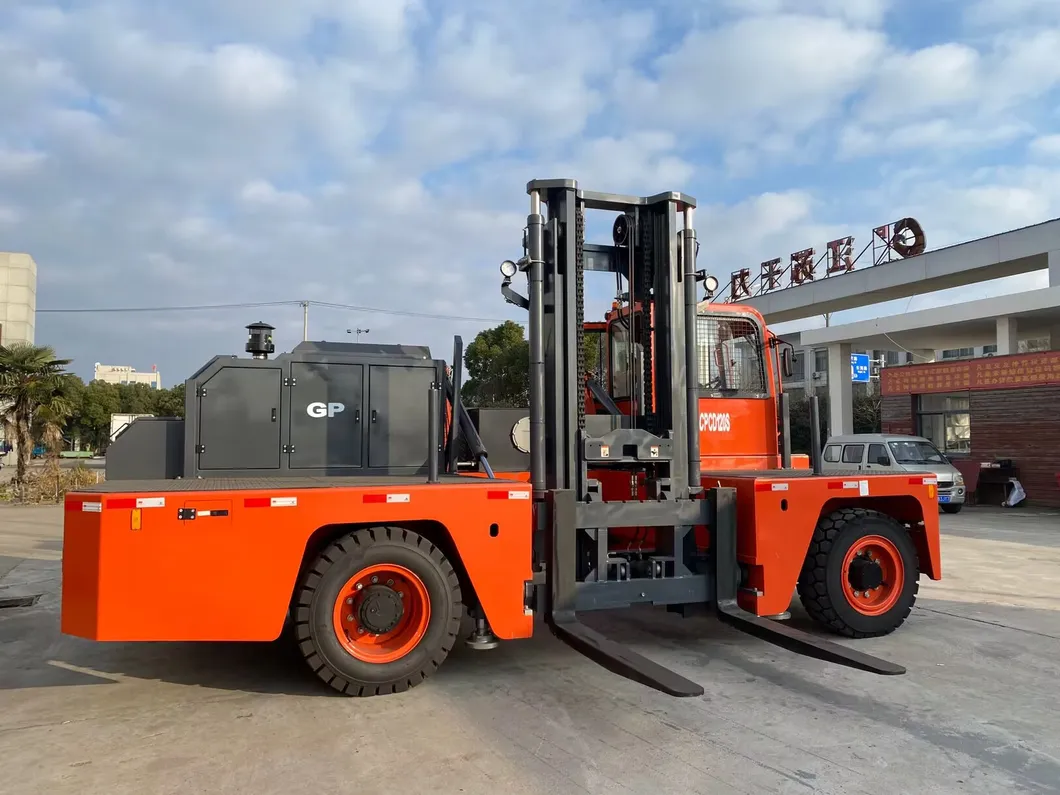

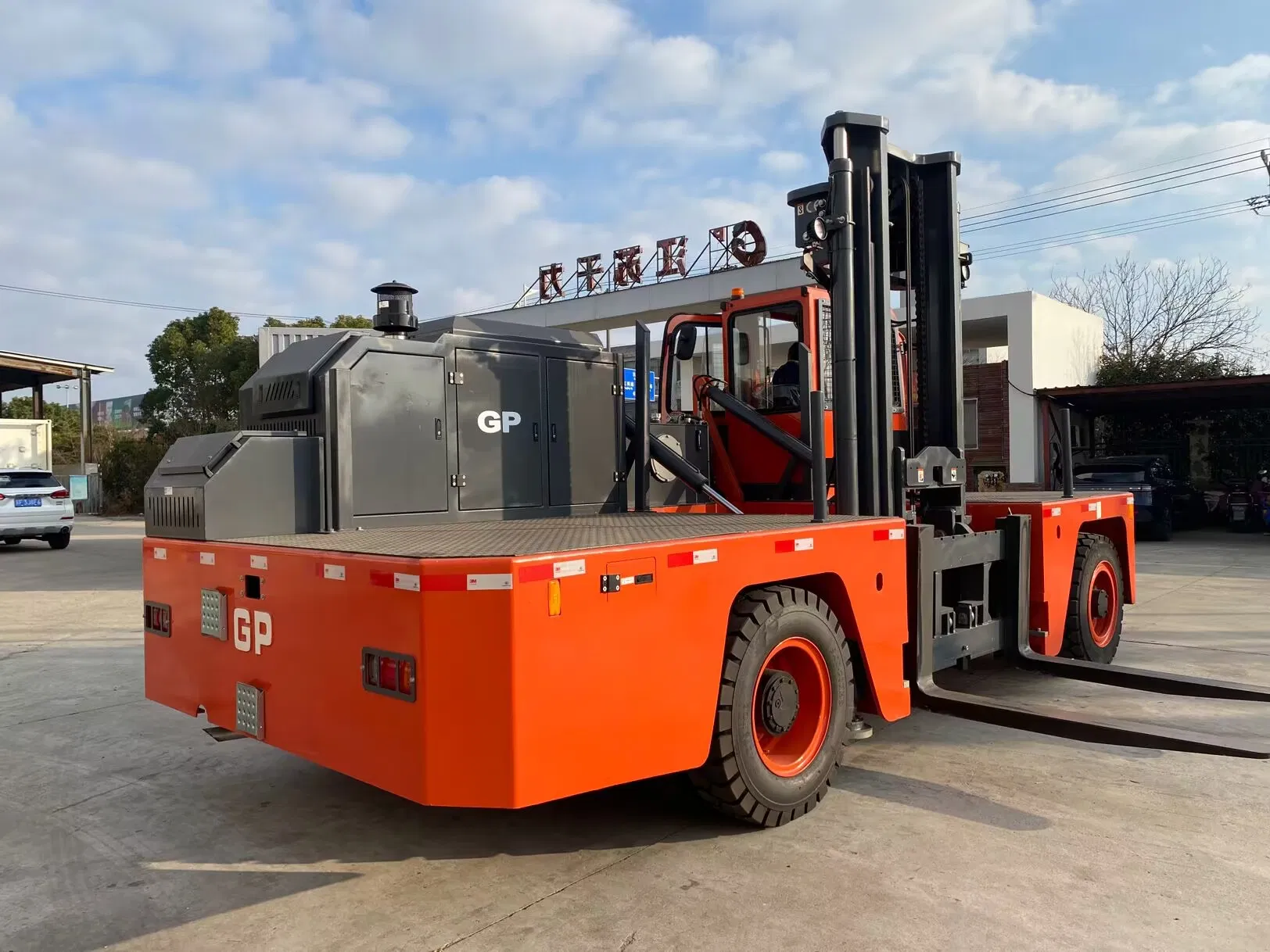

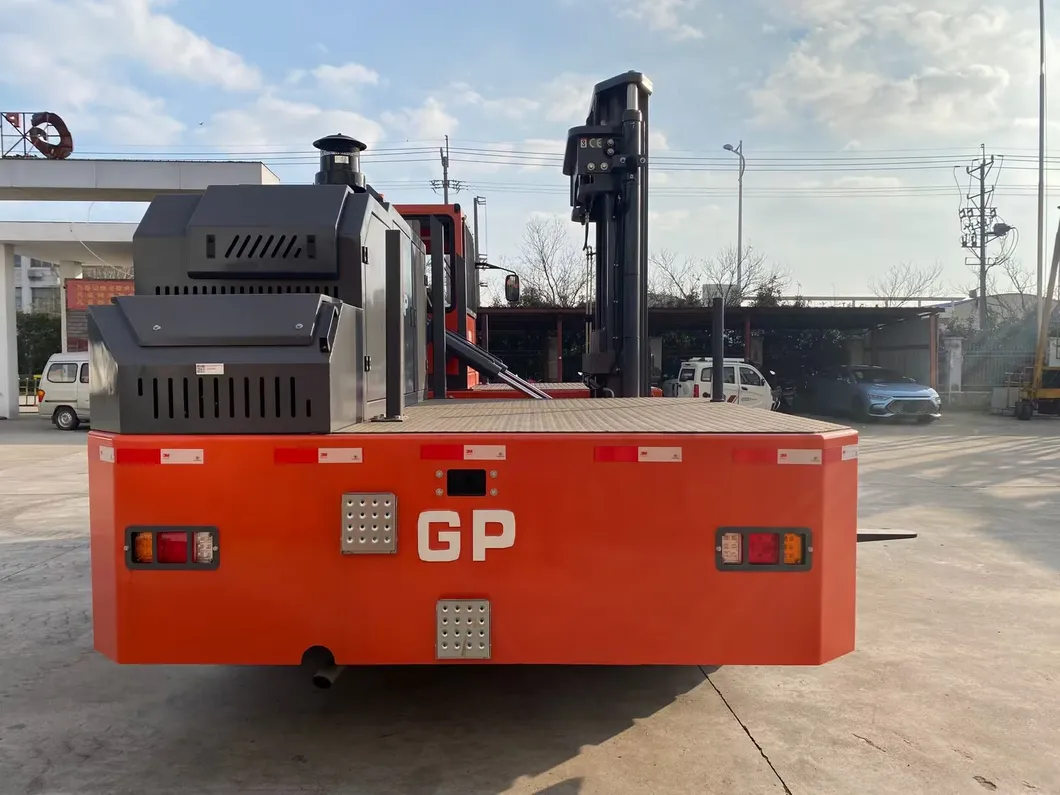

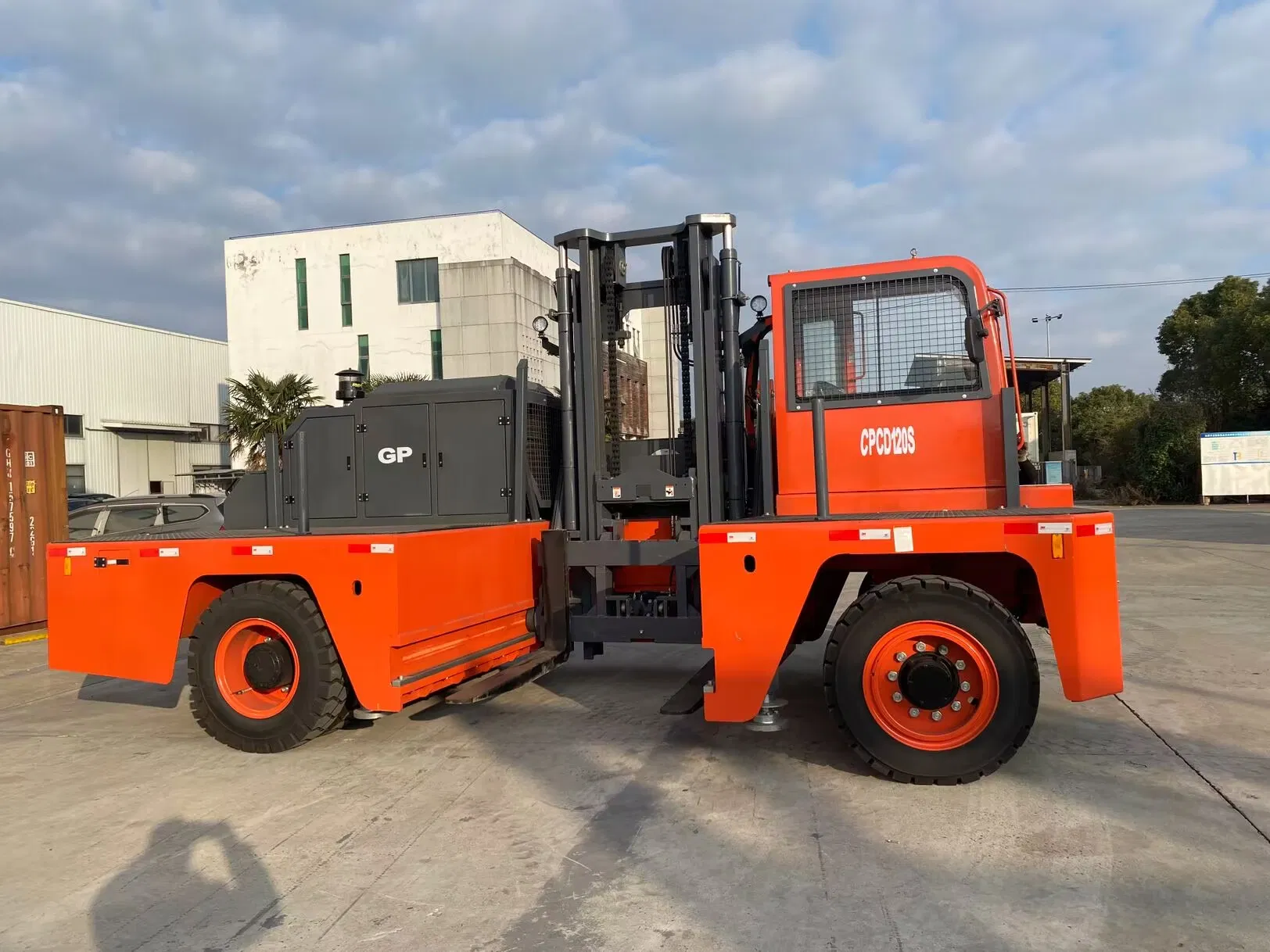

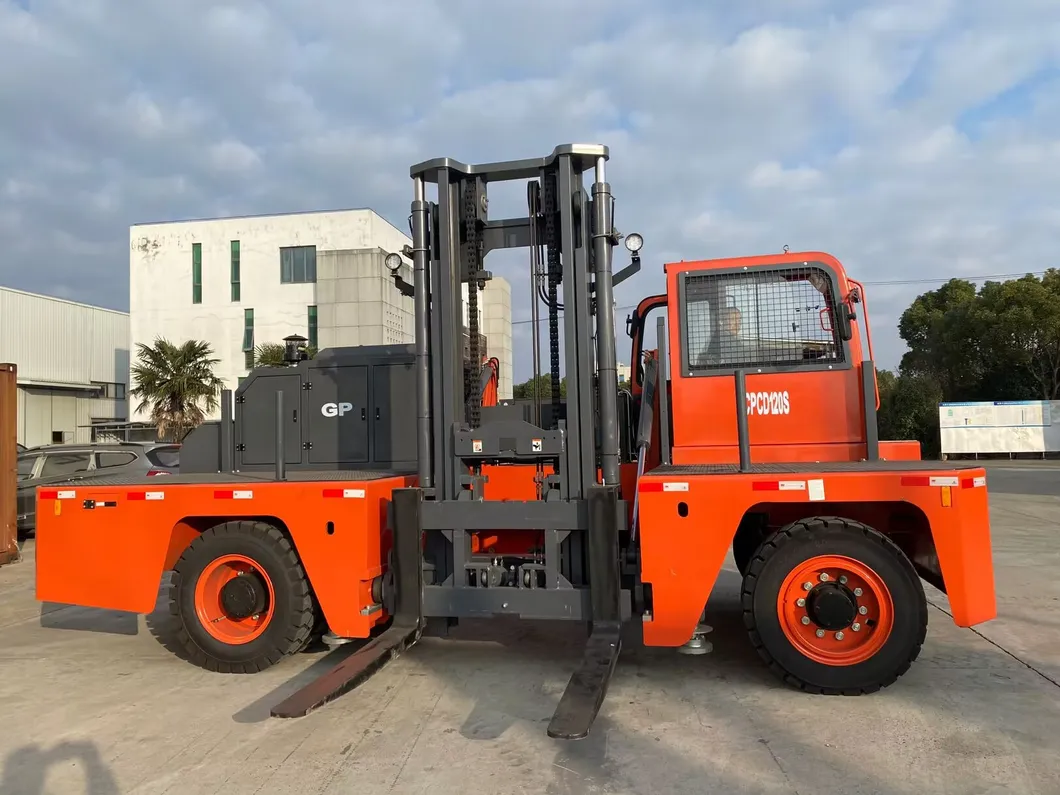

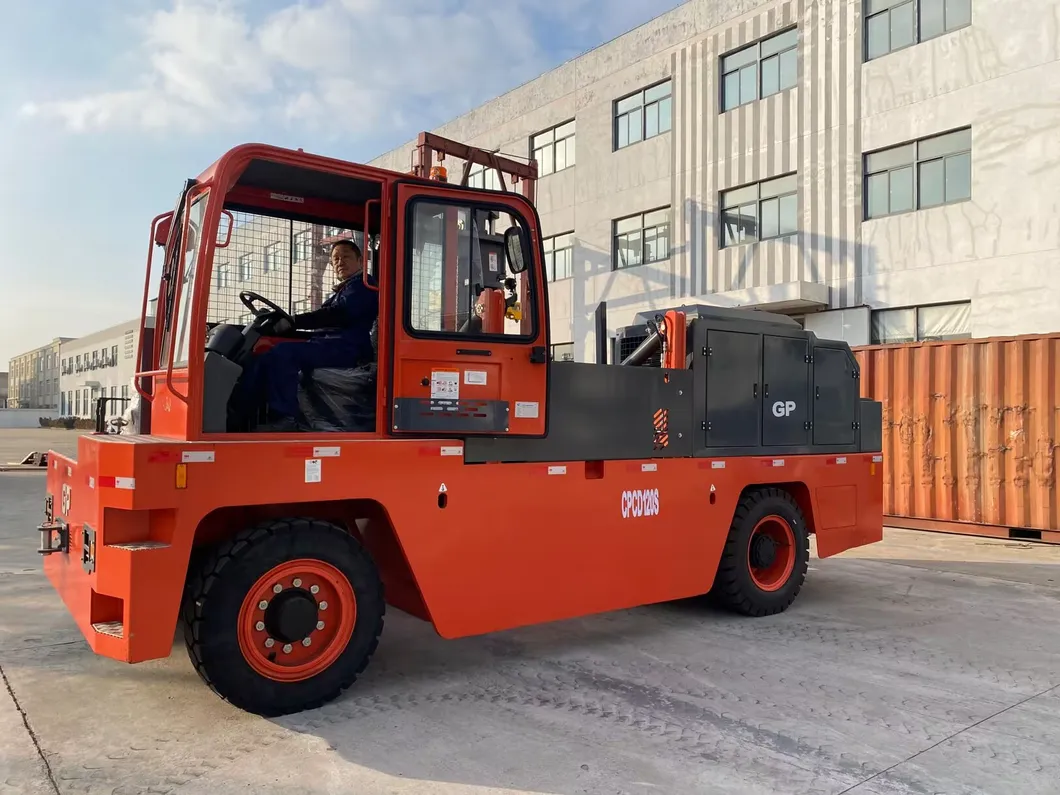

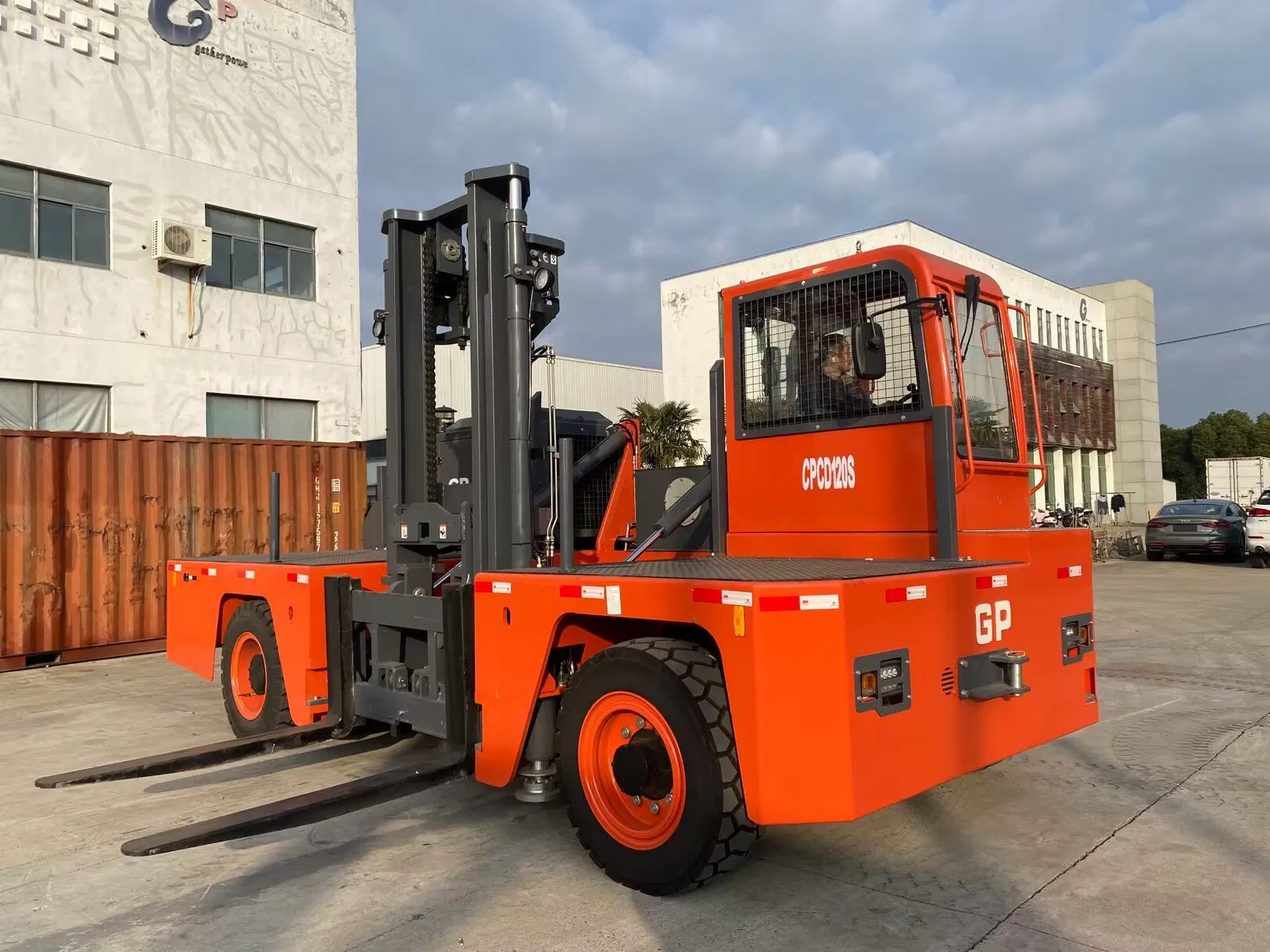

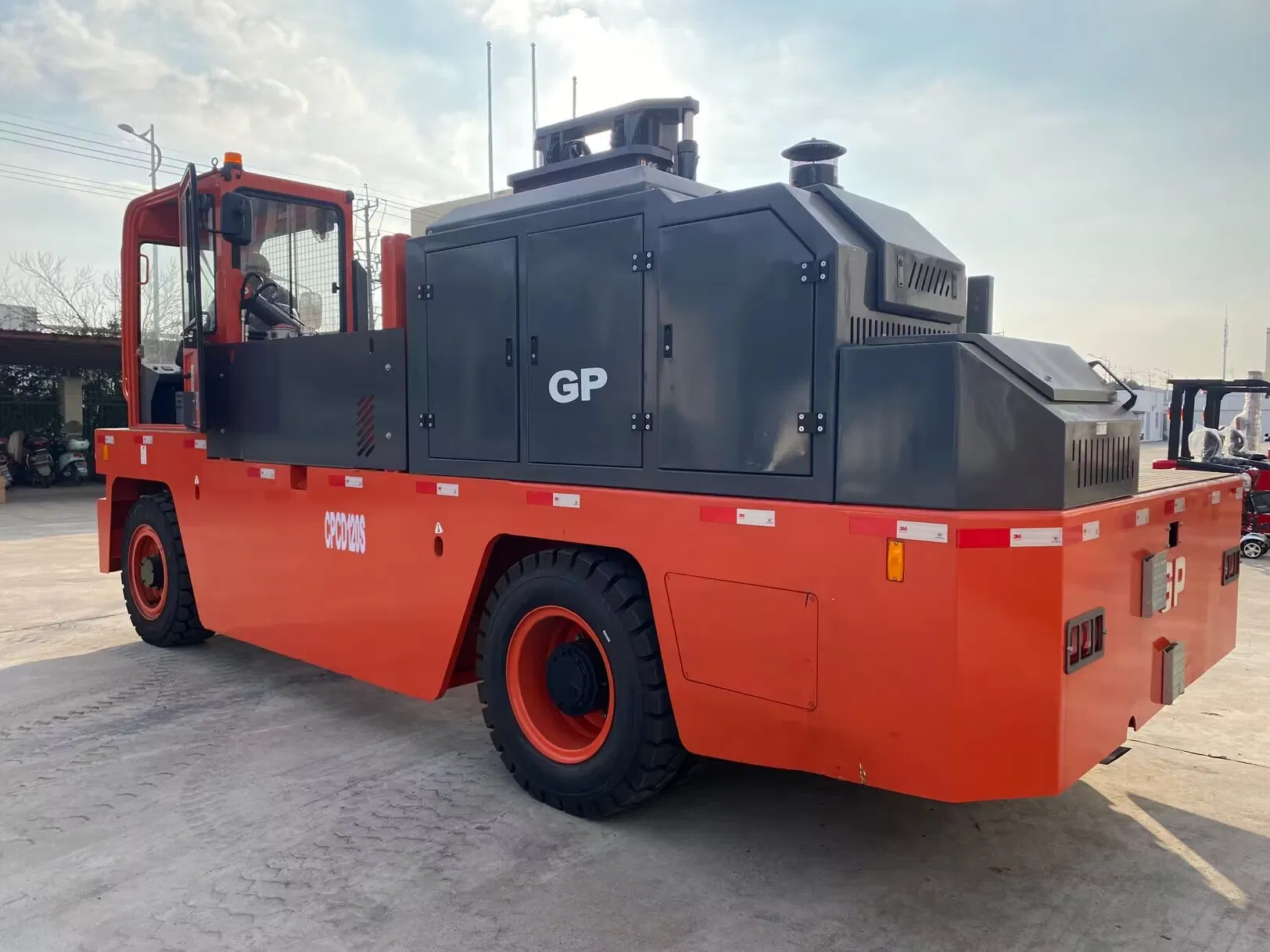

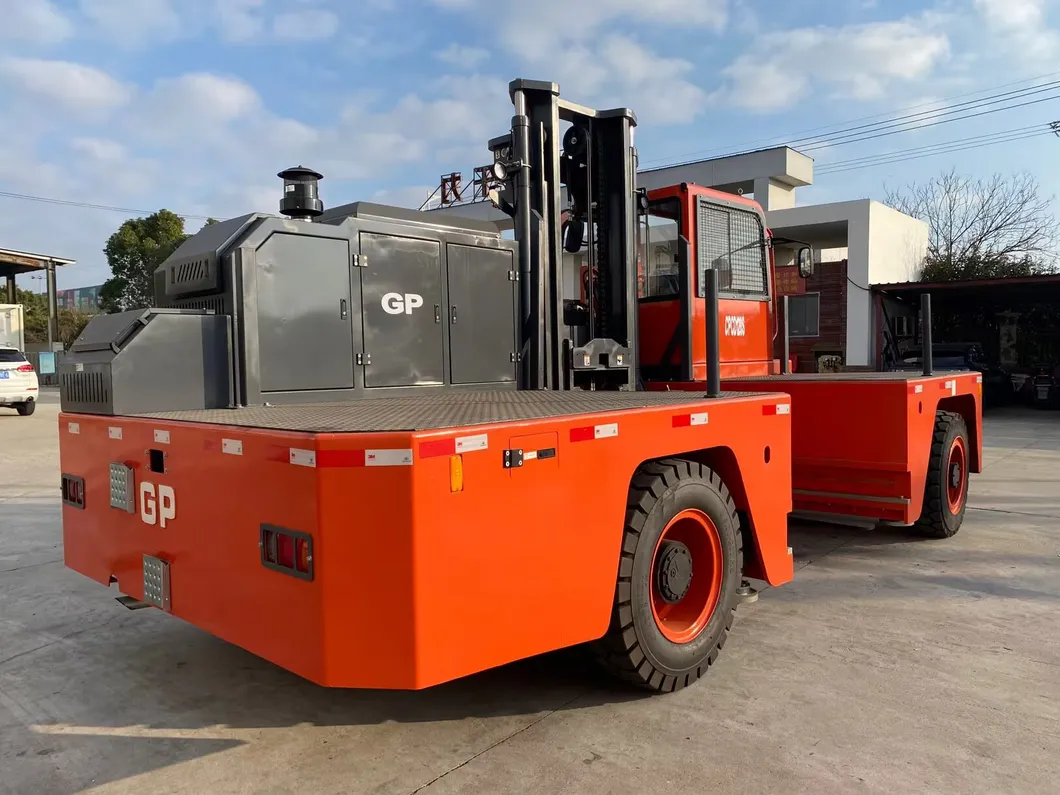

Detailed Photos

?

Frequently Asked Questions

What is the main advantage of using a side loader forklift?
The primary advantage is its ability to handle long loads (like timber or pipes) in narrow aisles by carrying them lengthwise on its platform, which is impossible for standard front-loading forklifts.
What engine options are available for the CPCD120S model?
The CPCD120S typically comes with a high-performance diesel engine. Options often include reputable brands like Weichai or Cummins for Tier 4 compliance.
Can this side loader be used in outdoor construction sites?
Yes, with its pneumatic tires and powerful diesel engine, the side loader is well-suited for both indoor warehouse environments and rugged outdoor construction or port sites.
What is the maximum lift height for these models?
The standard maximum lift height ranges from 3000mm to 5000mm, with the CPCD120S specifically rated at 3600mm in its standard configuration.
Is the operator cabin adjustable?
Yes, the cab location is designed to be adjustable to provide the operator with the best possible visibility for safe loading and maneuvering.
What industries most commonly use this equipment?
It is widely used in forestry (timber), steel logistics (section steels), utility maintenance (poles), and manufacturing plants that handle long plastic or cement piping.
