Electric Articulated Forklifts Very Narrow Aisle Forklift Articulated Narrow Aisle Forklift Master Vna Very Narrow Aisle Turret Truck Vna Forklift Truck

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MCC1615

Type

Electric Forklift

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

500mm

Lift Height

3000-9000mm

Condition

New

Turning Radius

1880mm

Origin

China

Production Capacity

1000 PCS/Year

Product Description & Technical Data

Model	Unit	MC10	MC10SQ	MC15	MC15SQ
Power type	-	Battery	Battery	Battery	Battery
Operation Type	-	Stand-on	Stand-on	Stand-on	Stand-on
Service weight	kg	4260	4800	4690	5520
Rated capacity	kg	1000	1000	1500	1500
Load center	mm	500	500	600	600
Lift height	mm	3000	4500	3000	4500
Turning radius	mm	1880	1880	1980	1980
Travelling speed (laden)	km/h	7.5/8	7.5/8	7.5/8	7.5/8

Main Applications

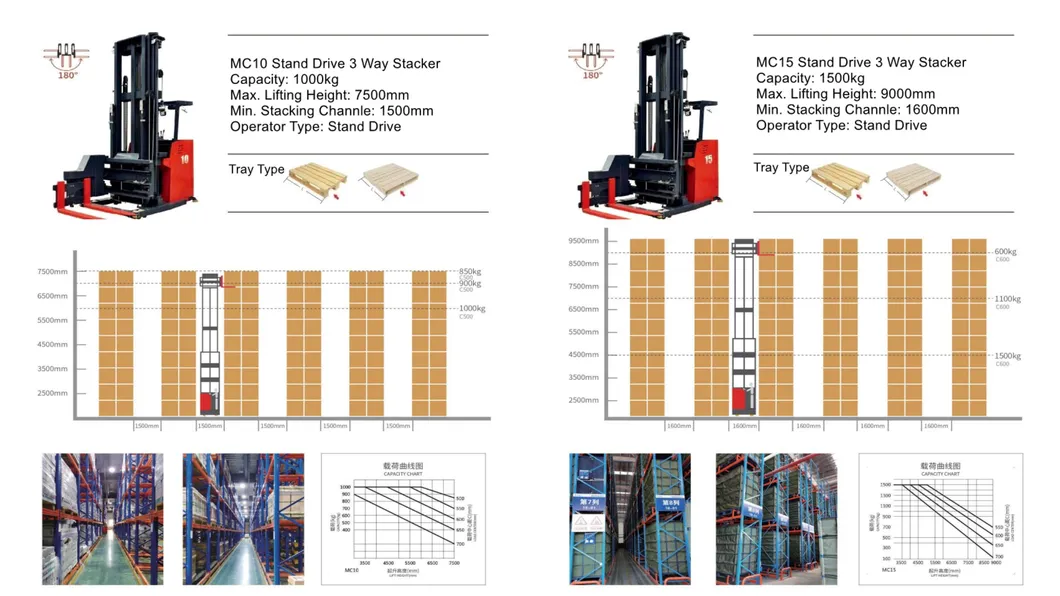

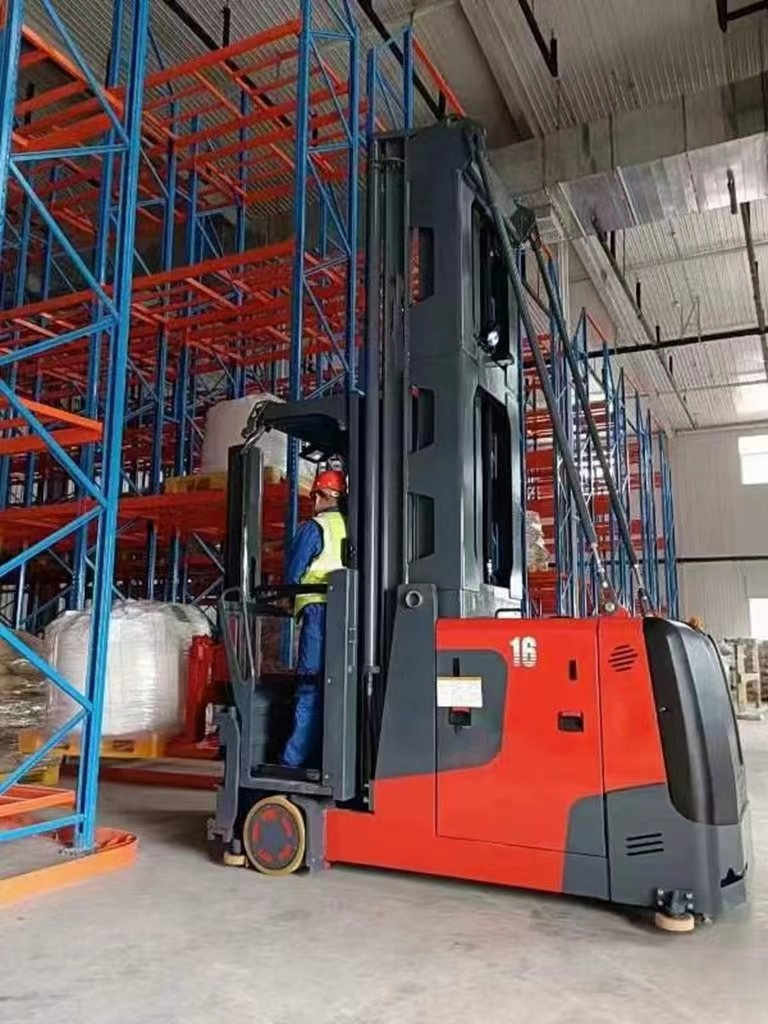

MC Series 1.0-1.5T 3-way pallet stacker (Stand-on Driving type)

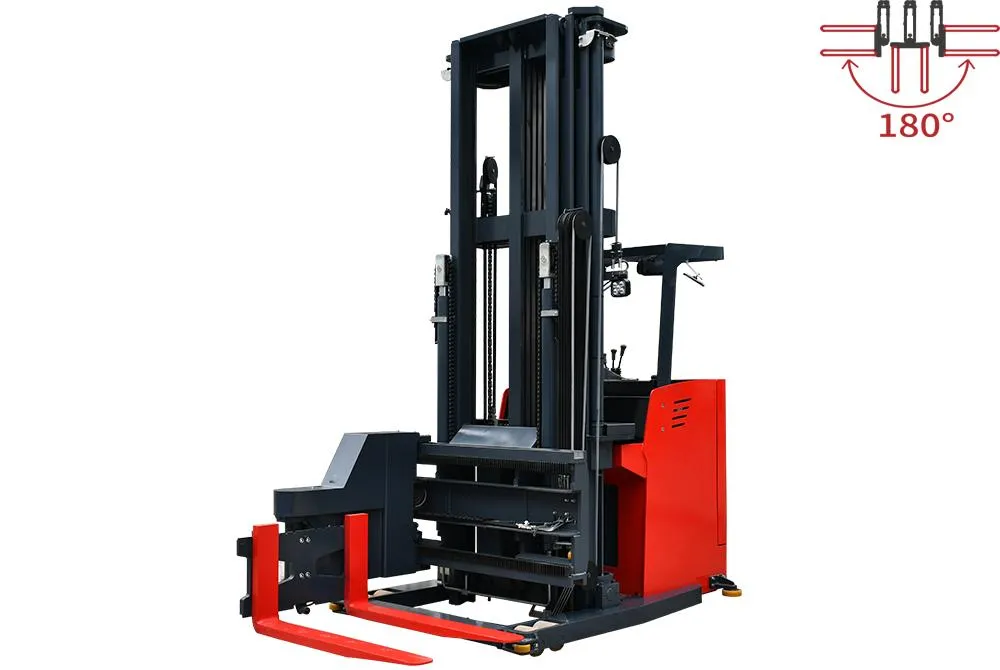

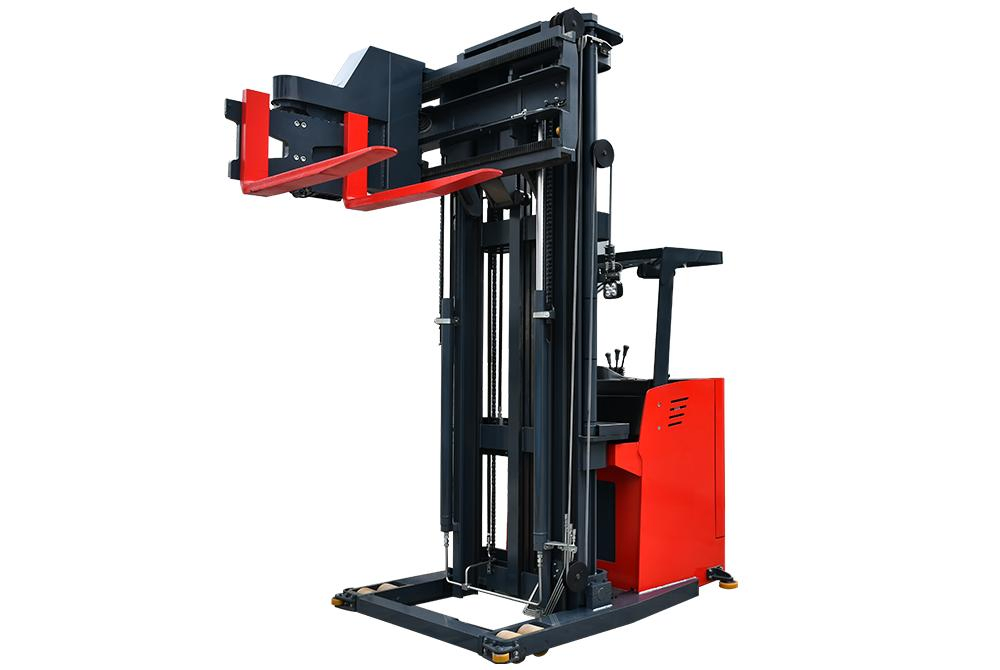

3-way stacking function: forks can rotate 180° and do left-right side shift without body turning. The 3-way pallet stacker is the first choice for intensive storage, mainly used in logistics, medicine, food, and low-temperature cold storage.

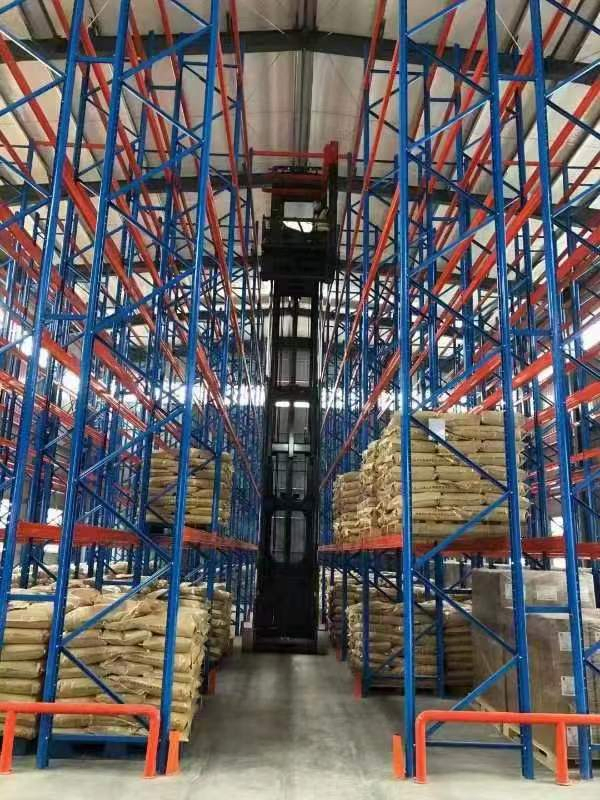

Stacking in ultra-narrow roadways and high shelf design
Horizontal handling
Efficient load/unload operations

Core Features

Gantry channel steel imported from Germany with shock absorption to reduce vibration during lifting.

Maintenance-free AC drive motor and imported AC controller for high efficiency.

Danfoss or Eaton side shift and rotary motors for precise 180° fork rotation.

American AMP waterproof and dustproof plug-ins to protect electrical lines.

H-shaped channel steel and central guide rail design for stability at high positions.

Service & Warranty

Pre-Sales

Inquiry and consulting support, photos & videos provided before shipment, and factory visiting.

After-Sales

Operational training, lifetime spare parts supply, and detailed user manuals/videos.

Warranty

One-year guarantee for main parts and 24-hour technical support via email.

Frequently Asked Questions

Q1: What is the maximum lifting height of this VNA forklift?

The MC Series 3-way pallet stacker can reach a maximum lifting height of up to 9000mm, making it ideal for high-shelf intensive storage.

Q2: How does the 3-way stacking function work?

The forks can rotate 180° and perform left-right side shifts. This allows the forklift to pick or stack pallets from either side of the aisle without the vehicle body needing to turn.

Q3: What is the minimum aisle width required for operation?

This forklift is designed for ultra-narrow aisles (VNA), requiring a minimum net channel width of only 1500mm.

Q4: Are the motors maintenance-free?

Yes, the system utilizes a maintenance-free whole-AC driving system, which offers quick reaction times, low noise, and significantly reduced maintenance costs.

Q5: What is included in the after-sales service package?

Our service includes a one-year warranty on main parts, lifetime supply of spare parts, 24-hour technical support, and comprehensive training materials like manuals and videos.

Q6: Is the battery easy to charge and maintain?

Yes, the forklift features a side-pull type battery design, which makes charging and battery replacement highly convenient.
