2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
1 / 5
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll
2.5t Electric Pallet Jack for Paper Roll

2.5t Electric Pallet Jack for Paper Roll

Customization: Available
Cab Location: Not Adjustable
Type: Powered Pallet Truck
Send Inquiry

Product Description

Basic Specifications

Model NO.
NEW-TE30
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
500mm
Lift height
120mm
Condition
New
Rated Capacity
3000kg
Total Weight
830kg
Wheel Base
1495mm
Tyre Type
PU
Control System
Curtis
Battery
24V / 210ah
Origin
China
HS Code
84271020

Warehouse Electric Pallet Truck 2ton

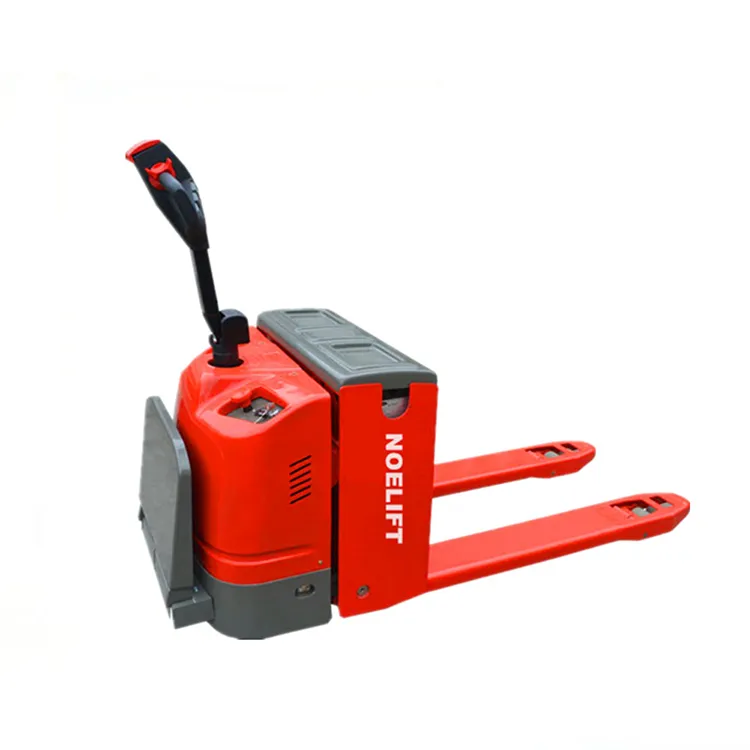

Electric Pallet Jack 1

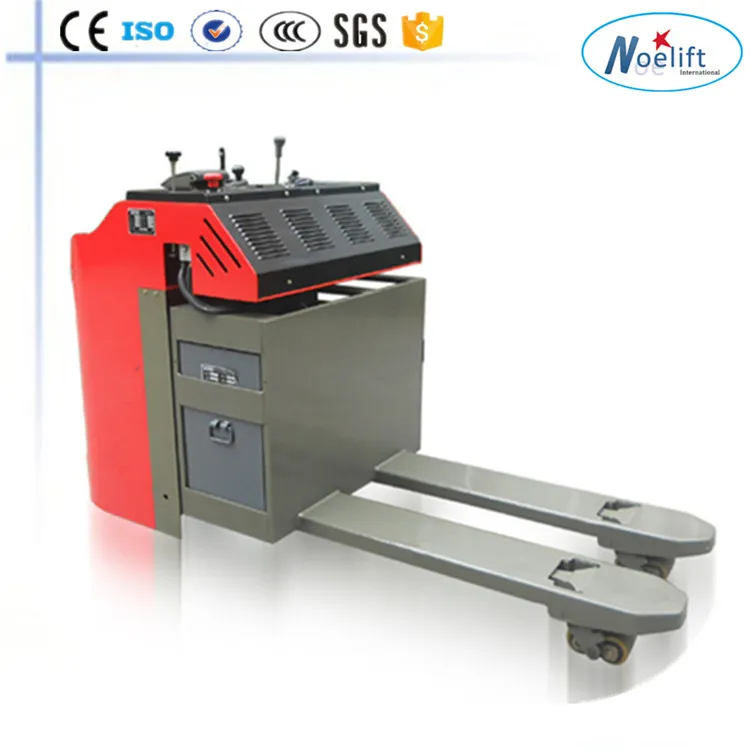

Electric Pallet Jack 2

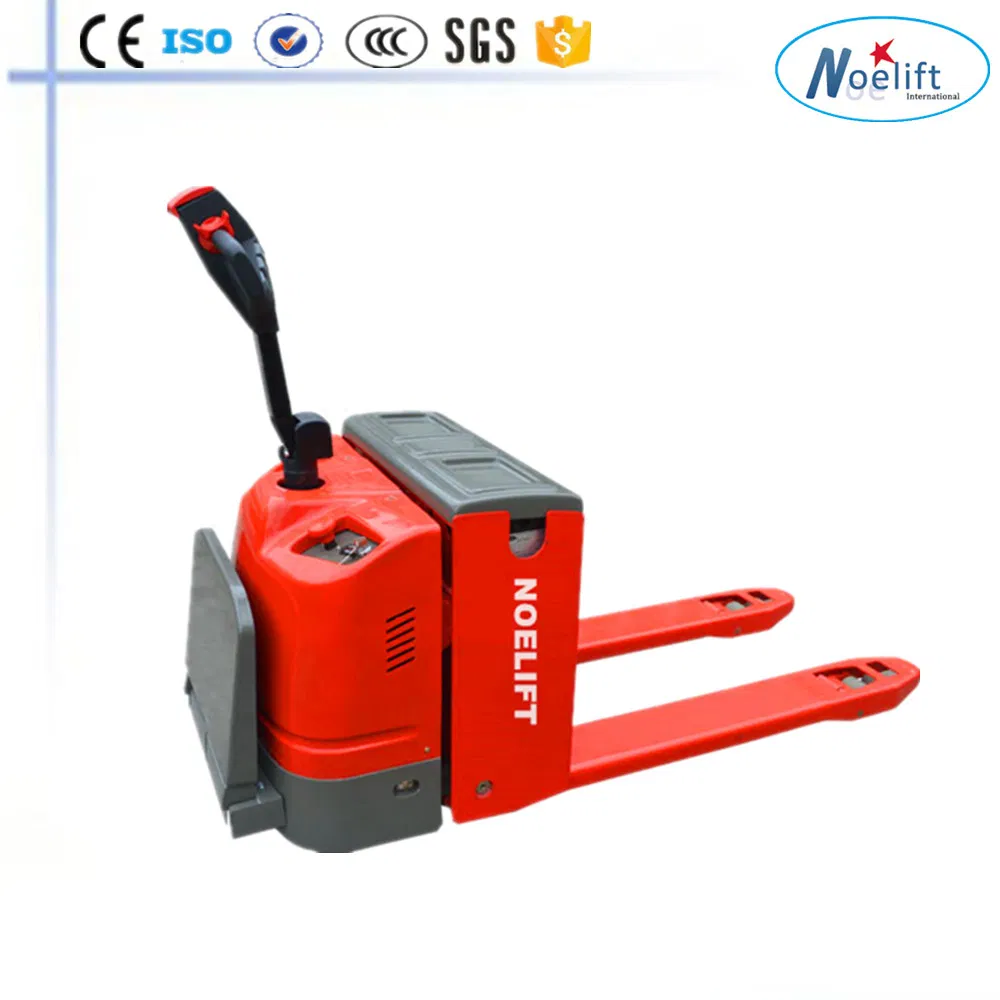

Electric Pallet Jack 3

Main Features

TE Series is popular across multiple industries, designed for high efficiency and safety.

✔Suit for horizontal transport over long distances.
✔Fast lifting and driving speed powered by 48v motors.
✔Wide pallet capacity range from 1500kg to 6000kg.
✔Safety enhanced by Auto Curve Speed-reduction function.
✔Anti-roll back prevents uncontrolled speed on ramps during loading.
✔Small ground clearance designed to protect the operator.
✔High-strength frame design suitable for tough workplaces.

Technical Parameters

No. Description Unit TE25 with CE TE30 with CE
1Power type-BatteryBattery
2Operation type-Stand-inStand-in
3Rated Load Capacitykg25003000
4Load centermm600600
5Wheelbasemm13451550
6Tyre type-Solid PUSolid PU
7Overall heightmm14201420
8Lift heightmm120120
9Forks dimensionmm1150/170/561150/170/56
10Turning radiusmm2065/16451845/2240
11Battery voltage/capacityV/Ah24V/210Ah24V/210Ah
12Steering system-ElectricElectric

Certification

CE Certification

Our Professional Services

Quick Response
Timely replies to all inquiries.
Maintenance
1-year free maintenance support.
OEM Service
Customized manufacturing solutions.
Tracking
Product status updates every two days.

Frequently Asked Questions

Q1: What is the maximum load capacity of the TE series?
A: The TE series supports a rated capacity ranging from 1500kg up to 6000kg, with the TE30 model specifically rated for 3000kg.
Q2: Does this electric pallet truck come with safety features for ramps?
A: Yes, it features an anti-roll back system that prevents uncontrolled travel speed or rolling back when operating on ramps.
Q3: What kind of battery and motor does it use?
A: It is equipped with a high-performance AC motor and a 24V/210Ah battery for long-lasting operation.
Q4: Is the steering system manual or electric?
A: The TE series features a full electric steering system for effortless maneuverability in warehouse environments.
Q5: What is the turning radius for the TE30 model?
A: The outside turning radius for the TE30 model is between 1845mm and 2240mm depending on the configuration.
Q6: Are these pallet trucks certified for international standards?
A: Yes, our TE series pallet trucks come with CE certification, ensuring they meet essential health and safety requirements.
