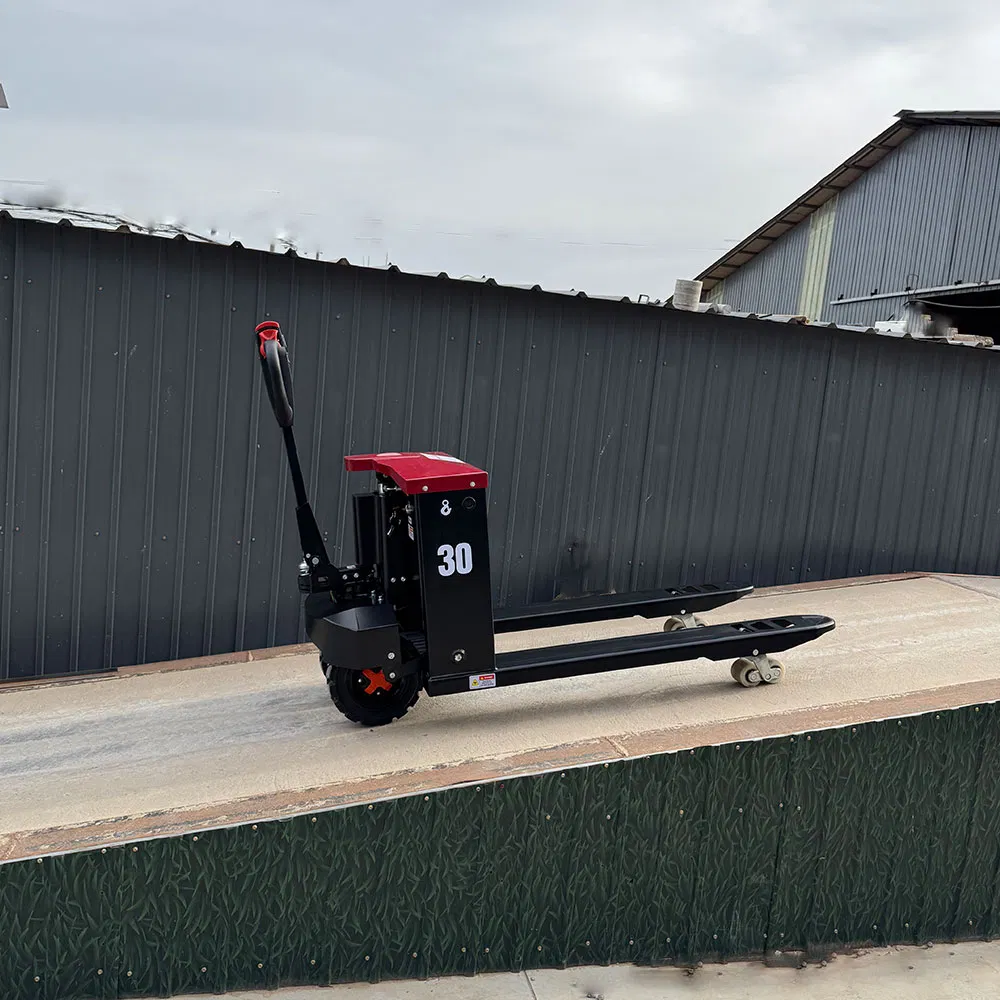

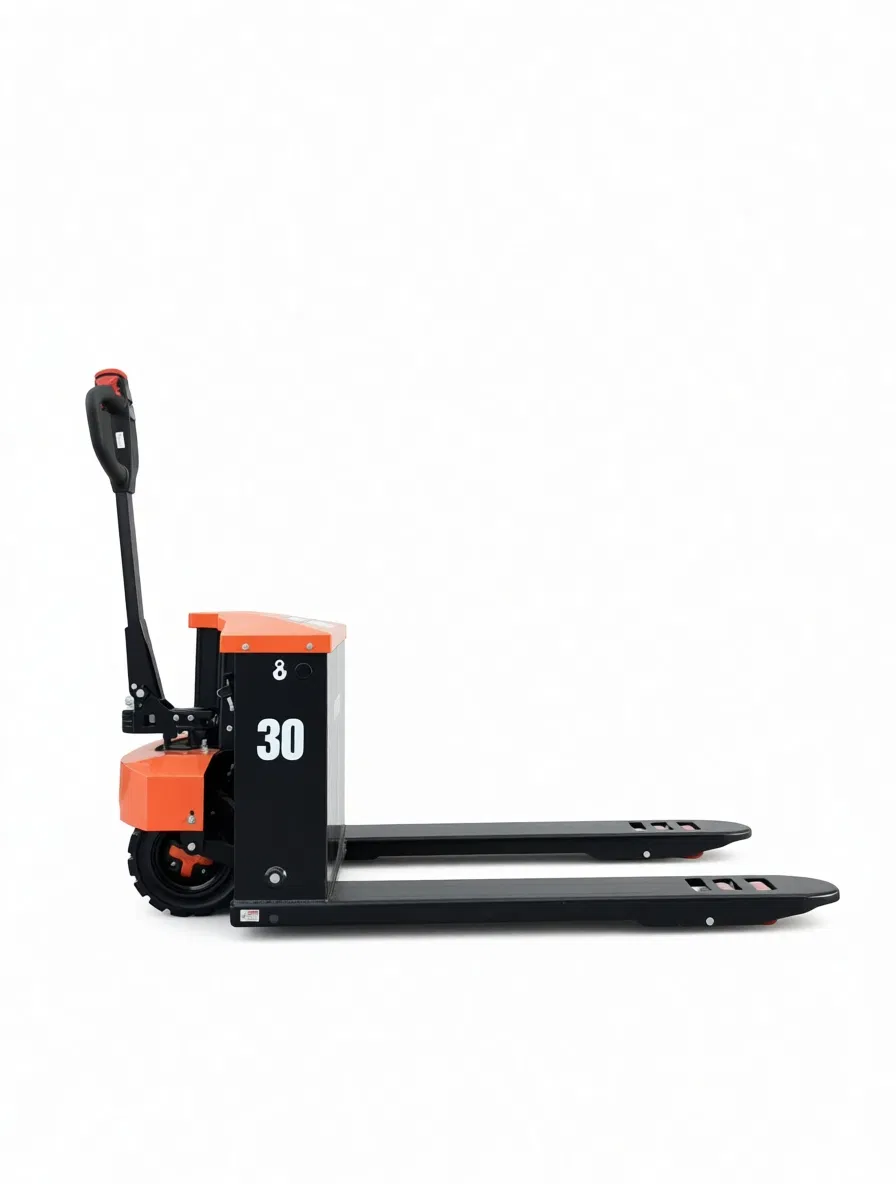

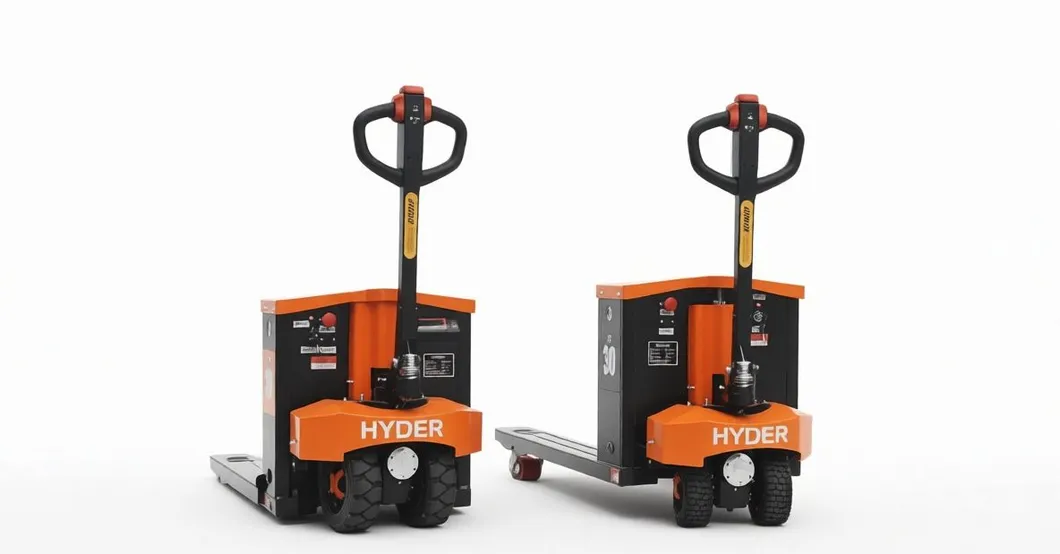

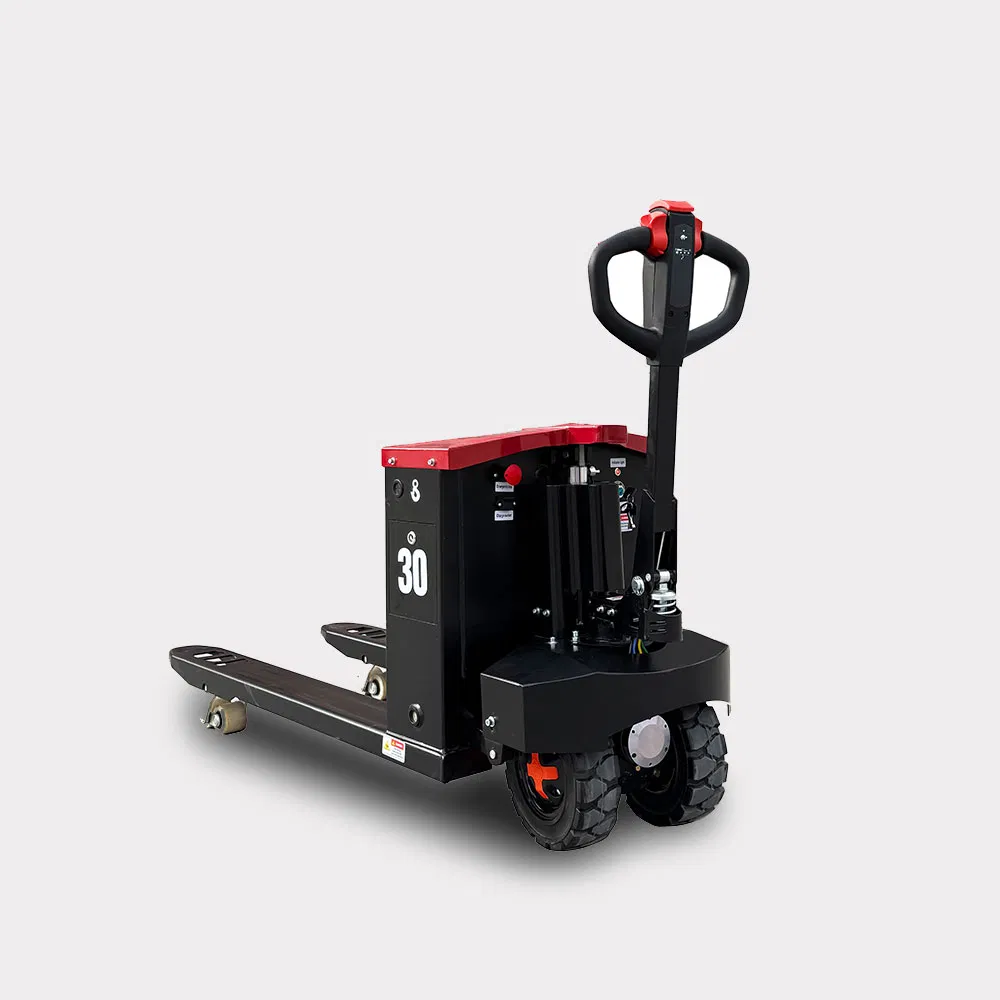

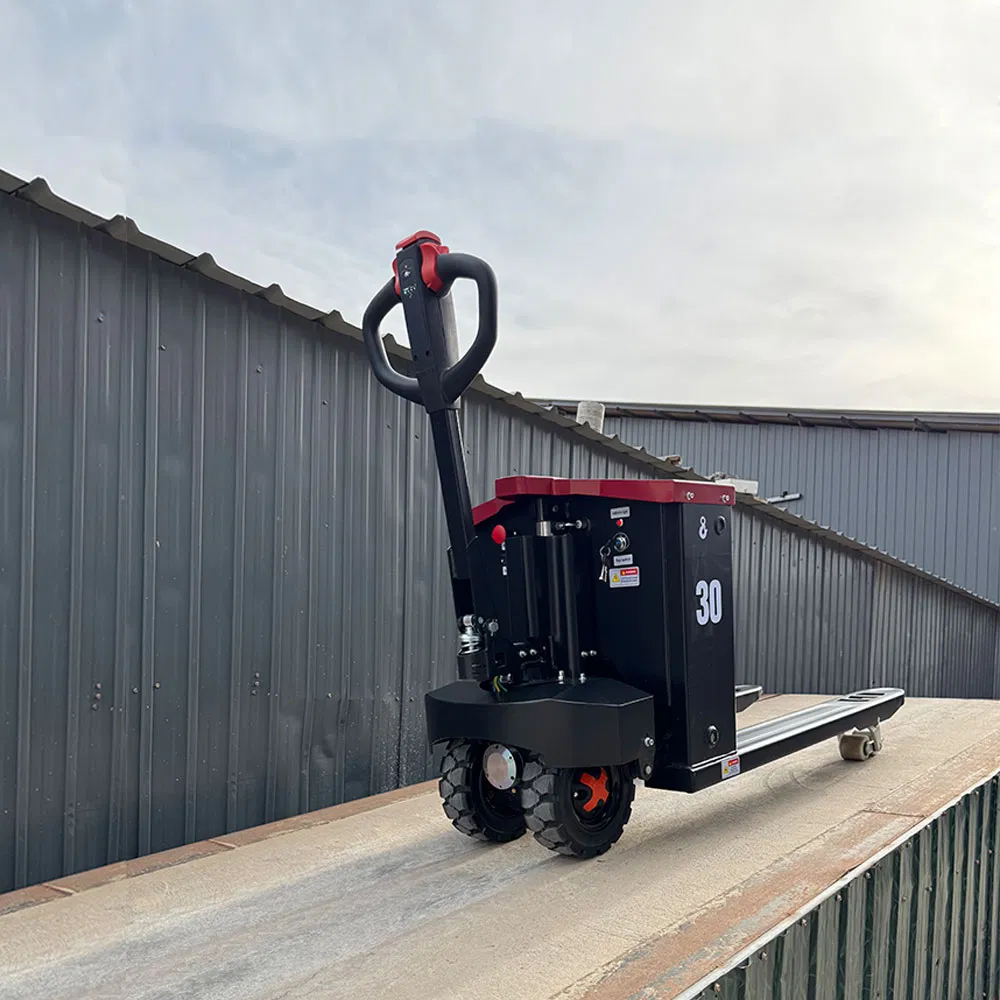

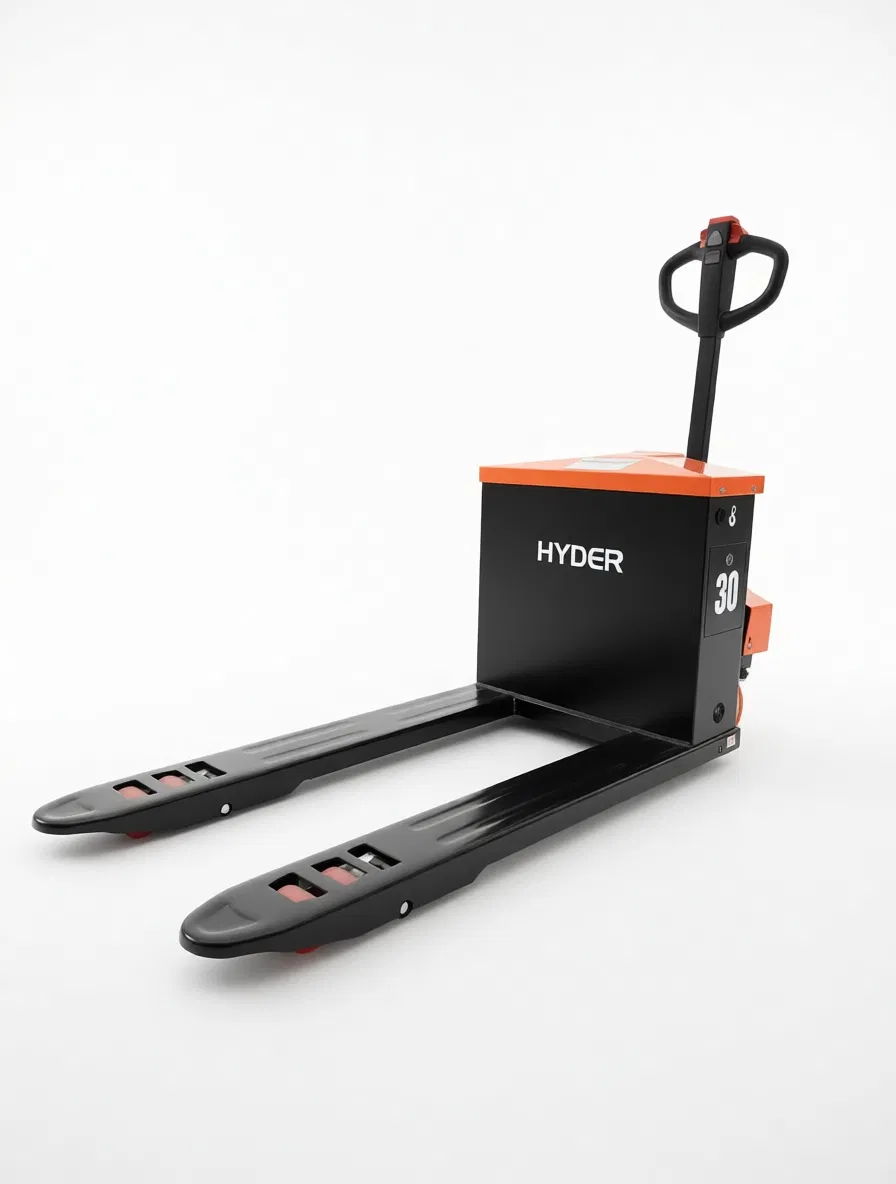

The Rough Terrain Electric Pallet Stacker is a piece of equipment designed to handle pallets in tough and uneven terrains. This type of stacker is electric-powered, allowing for easier and quieter operation, as well as being environmentally friendly. Its unique design allows it to traverse rough and uneven surfaces, making it suitable for use in warehouses, factories, construction sites, and other areas where ground conditions are challenging.

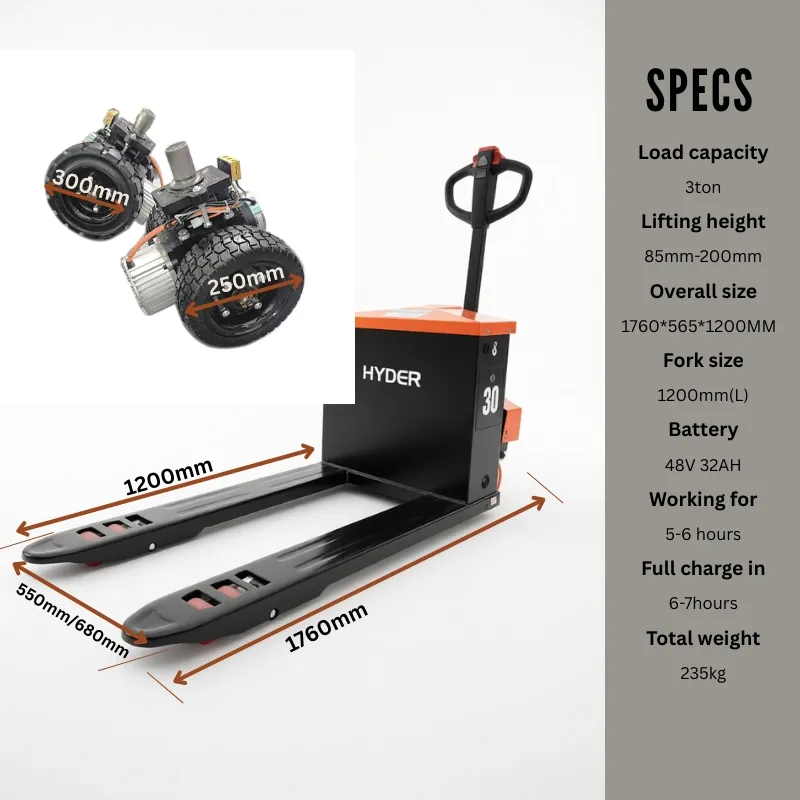

| Parameter | Unit | Specification |
|---|---|---|
| Model | -- | HTB30R |
| Power Type | -- | Lead-acid battery / Optional lithium battery |
| Operation | -- | Walkie |
| Load Capacity | kg | 3000 |
| Loading Center | mm | 600 |
| Lifting Height | mm | 200 |
| Overall Length | mm | 1760 |
| Fork Dimensions | mm | 1200×160×55 |
| Turning Radius | mm | 1200 |
| Tire Type | -- | Solid Rubber |
| Driving Speed (Full/No Load) | km/h | 3.5 / 4 |
| Waterproof Rating | -- | IPX4 |
