Chinese with Scale 5-12.5m Maximum Lift/Lifting Height 1.5t 2t 2.5t 3t Retractable Fork Electric Reach Truck Price for Narrow Aisles/Pallet/Forklift/Stacking

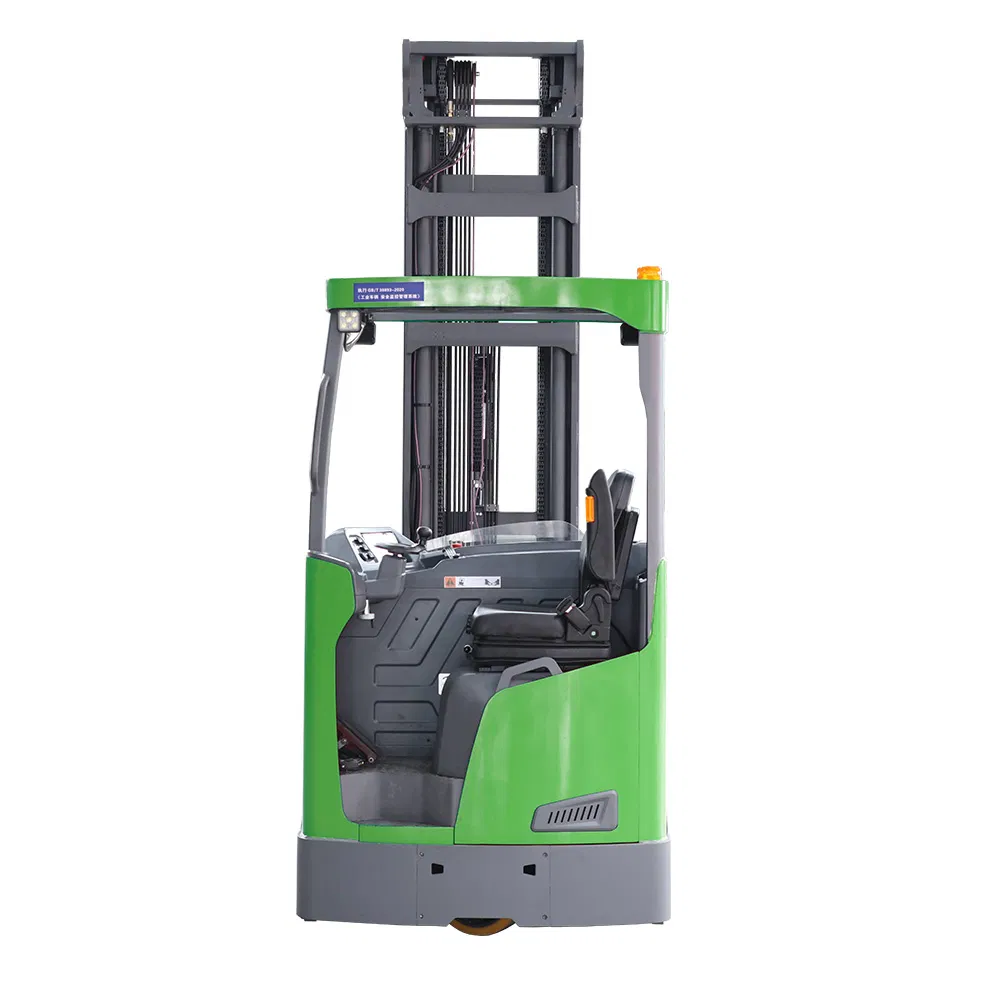

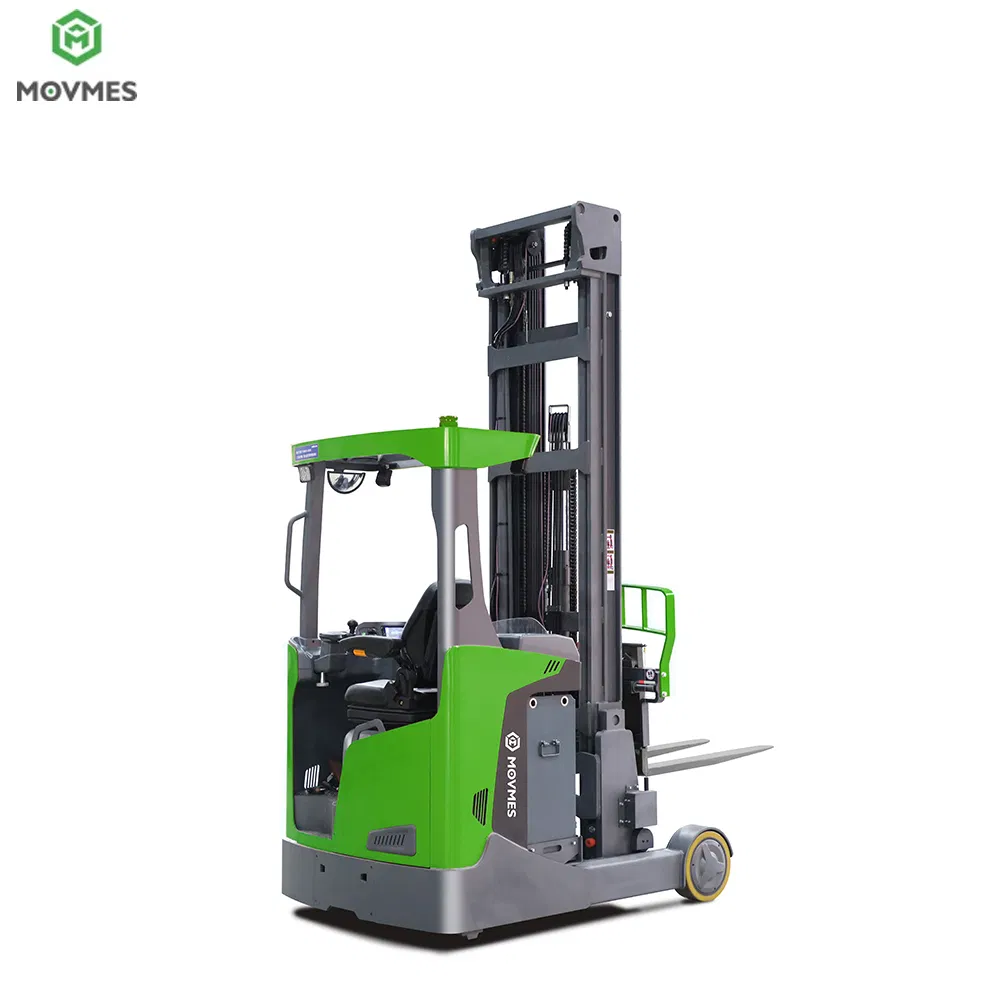

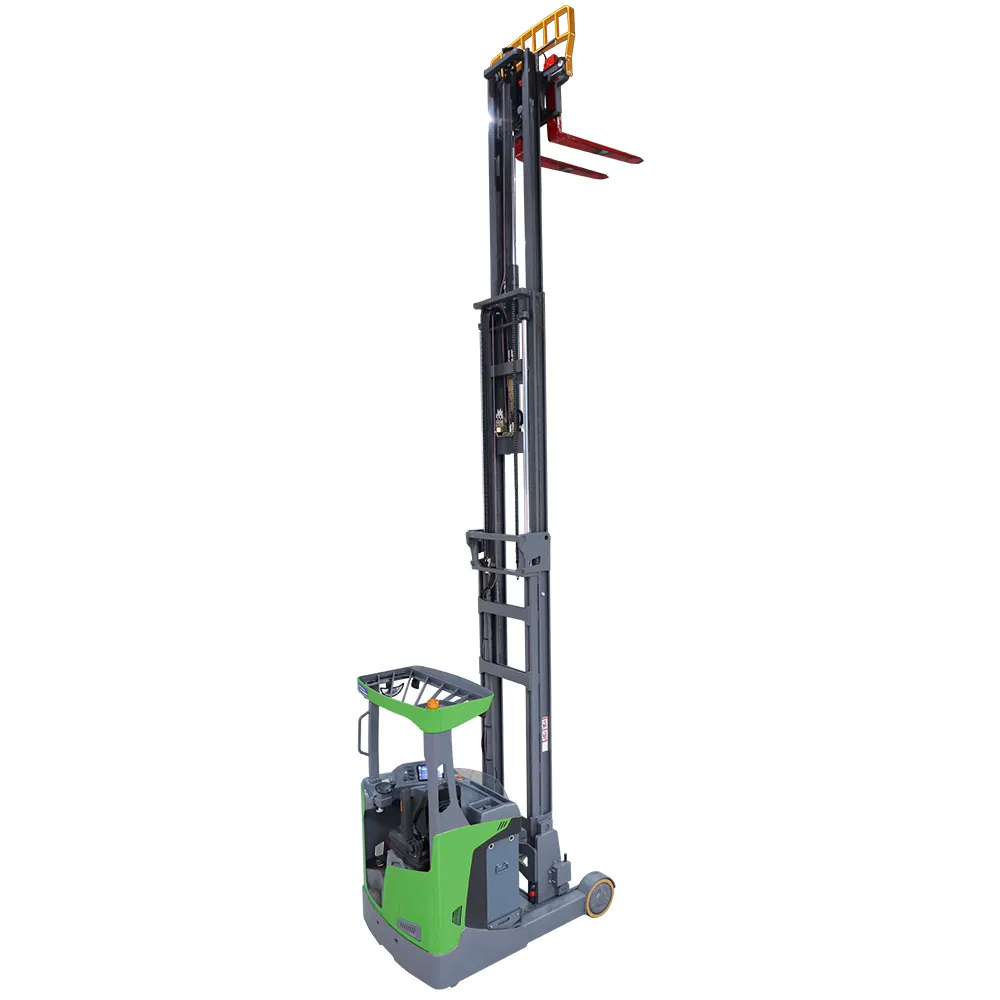

The CQD20-D Reach Truck is engineered for efficient and precise material handling in narrow aisle and high-racking warehouse environments. Its compact design and stable reach system allow operators to stack and retrieve pallets safely, even in confined spaces.
Powered by a reliable electric drive system, the CQD20-D delivers smooth operation, low noise, and zero emissions—making it an ideal solution for indoor logistics, distribution centers, and modern warehouses. The ergonomic operator compartment and responsive controls help improve productivity while reducing operator fatigue.

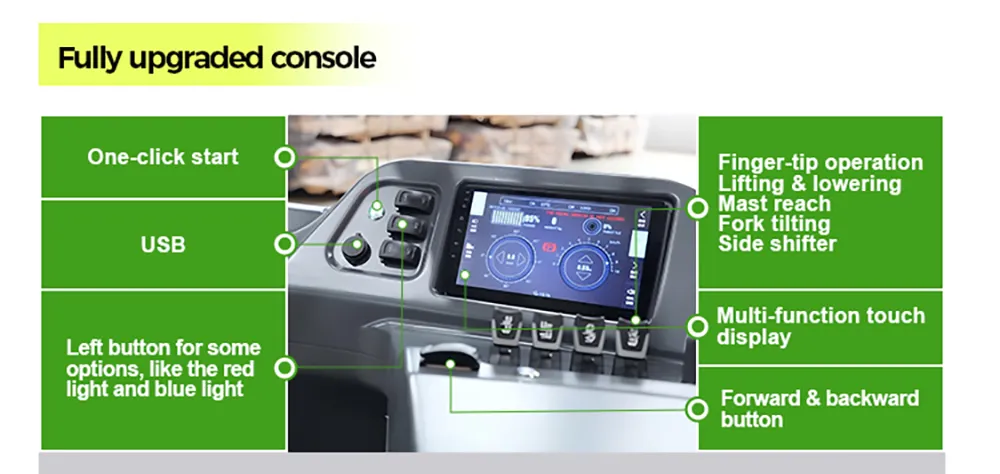

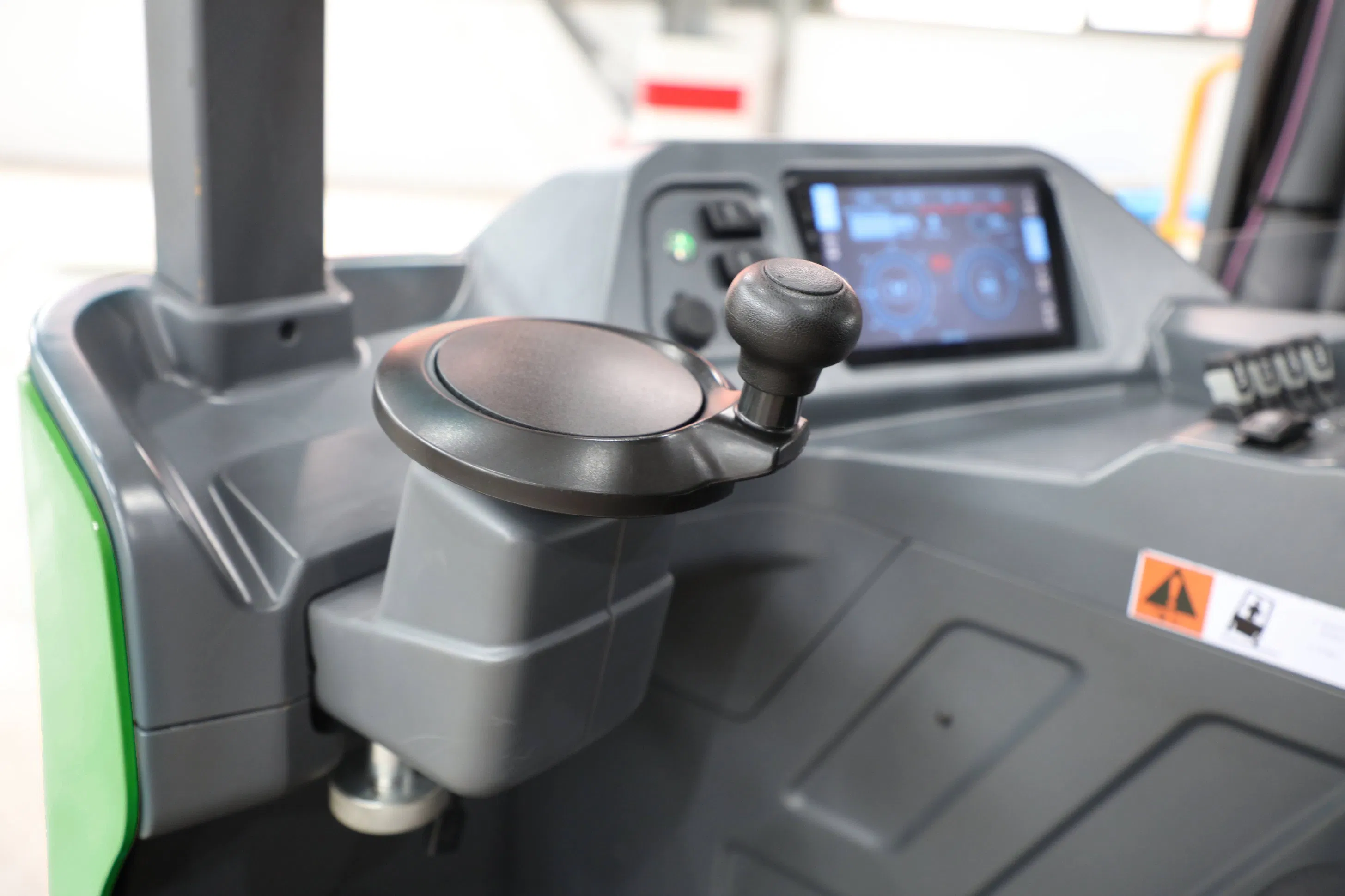

Smart Control: Large-screen instrument and finger-tip sticks with ergonomic design.
Real-time Display: Monitoring of battery power, wheel angle, speed, and fault information.

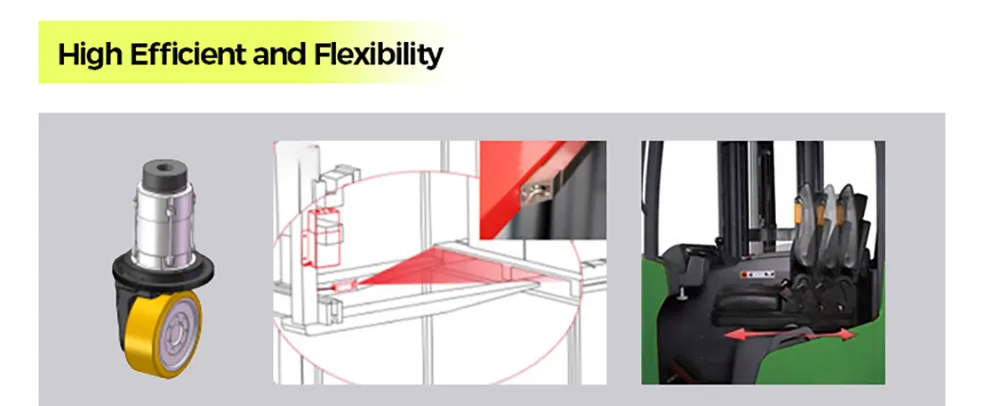

Precision Steering: Electric Power Steering (EPS) with 180°/360° steering modes.
Safety Integration: Automatic speed reduction near mast endpoints and intelligent turning control.
Enhanced Visibility: Offset mast design and optional fork-side camera for better stacking accuracy.
Braking System: Hydraulic + regenerative service brakes and auto electromagnetic parking brake.

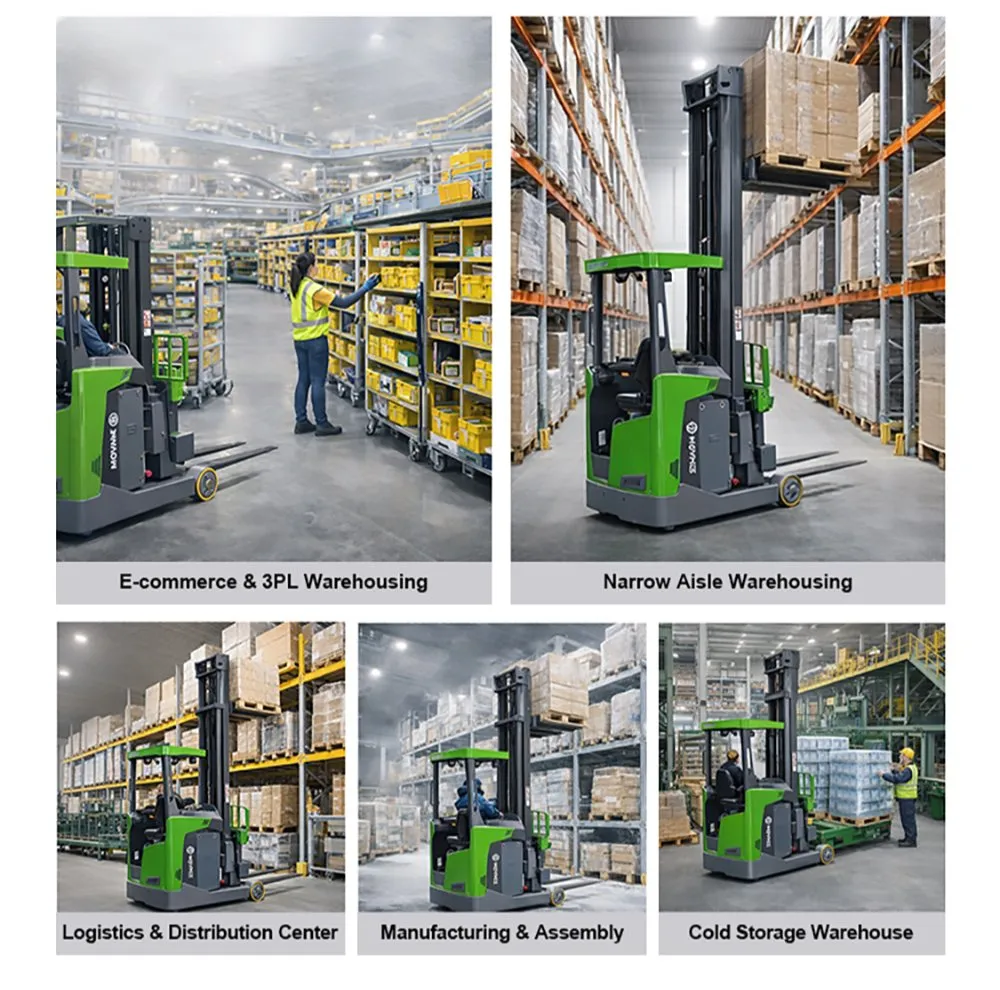

Application Scenarios
Technical Specifications
Parameter
Unit
Specification (CQD20-D)
Drive Type
-
Electric
Operator Type
-
Seated
Rated Load
kg
2000
Load Center Distance
mm
600
Wheelbase
mm
1510
Service Weight
kg
4205
Travel Speed (Laden/Unladen)
km/h
10.5 / 11
Lift Speed (Laden/Unladen)
m/s
0.3 / 0.46
Lowering Speed (Laden/Unladen)
m/s
0.5 / 0.56
Gradeability (Laden/Unladen)
%
10 / 10
Battery Voltage/Capacity
V/Ah
48 / 500
Overall Width
mm
1260 / 1270
Packaging & Maintenance

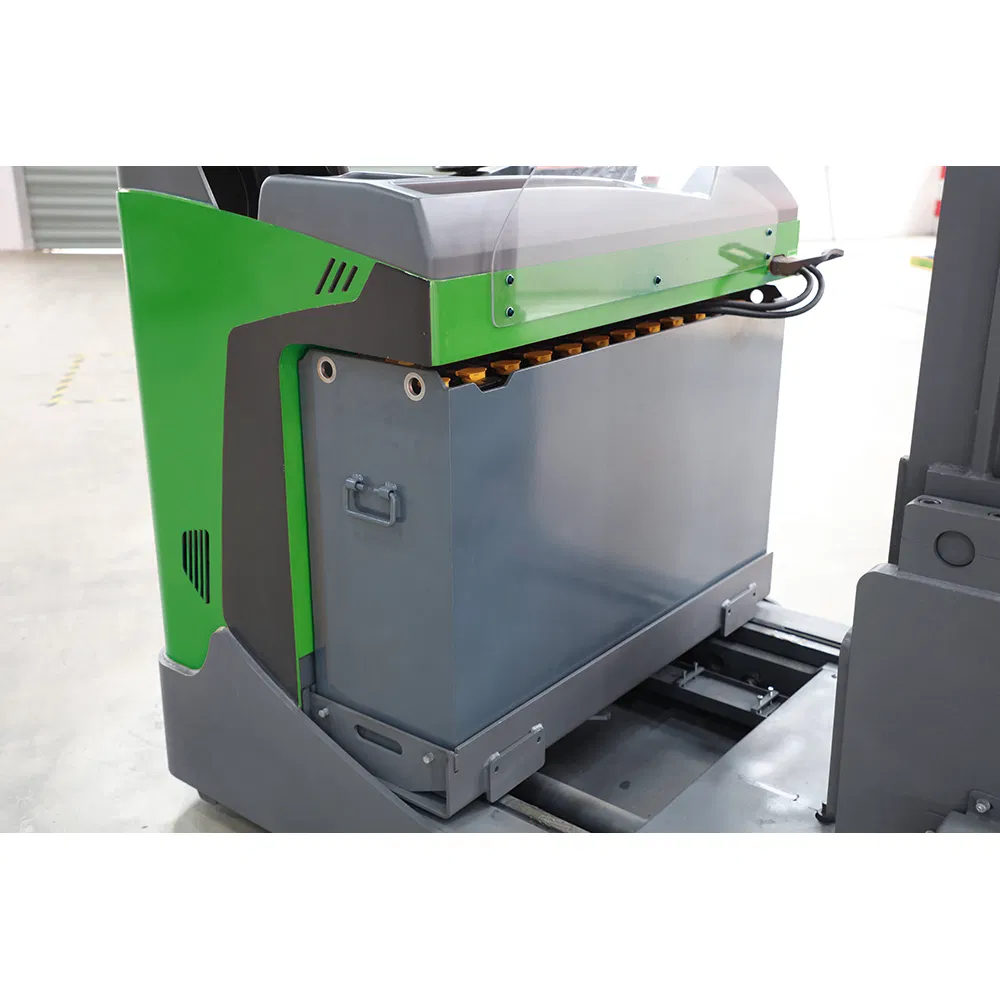

The CQD20-D is designed for ease of service. The one-piece upper cover allows for quick maintenance of the controller, pumps, hydraulics, and motors. A sideway battery system is integrated with the mast for rapid battery replacement during multi-shift operations.
Frequently Asked Questions
How long is the continuous working time for the CQD20-D series?
The continuous working time is approximately 3-6 hours, depending on the battery volume and application intensity. Charging usually takes between 3 to 6 hours for a full cycle.
What are the charger specifications?
The unit comes with a charger compatible with the 48V 500Ah Lead-acid battery. Power plugs can be configured to meet USA, UK, Australian, or European standards.
Can you provide customized products or OEM services?
Yes, there is a professional history of developing warehouse logistics equipment since 1985, including customized pallet trucks, stackers, and reach trucks for global industry partners.
What is the warranty period for this reach truck?
The product comes with a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.
What safety features are included for high-lifting operations?
Standard safety features include automatic speed reduction near mast endpoints, height and turning speed limits, and a fork-side camera for better visibility at high elevations.
How is maintenance handled for the electrical components?
The truck features modular electrical components for quick installation. The one-piece upper cover allows easy access to all primary internal systems including motors and hydraulics.
