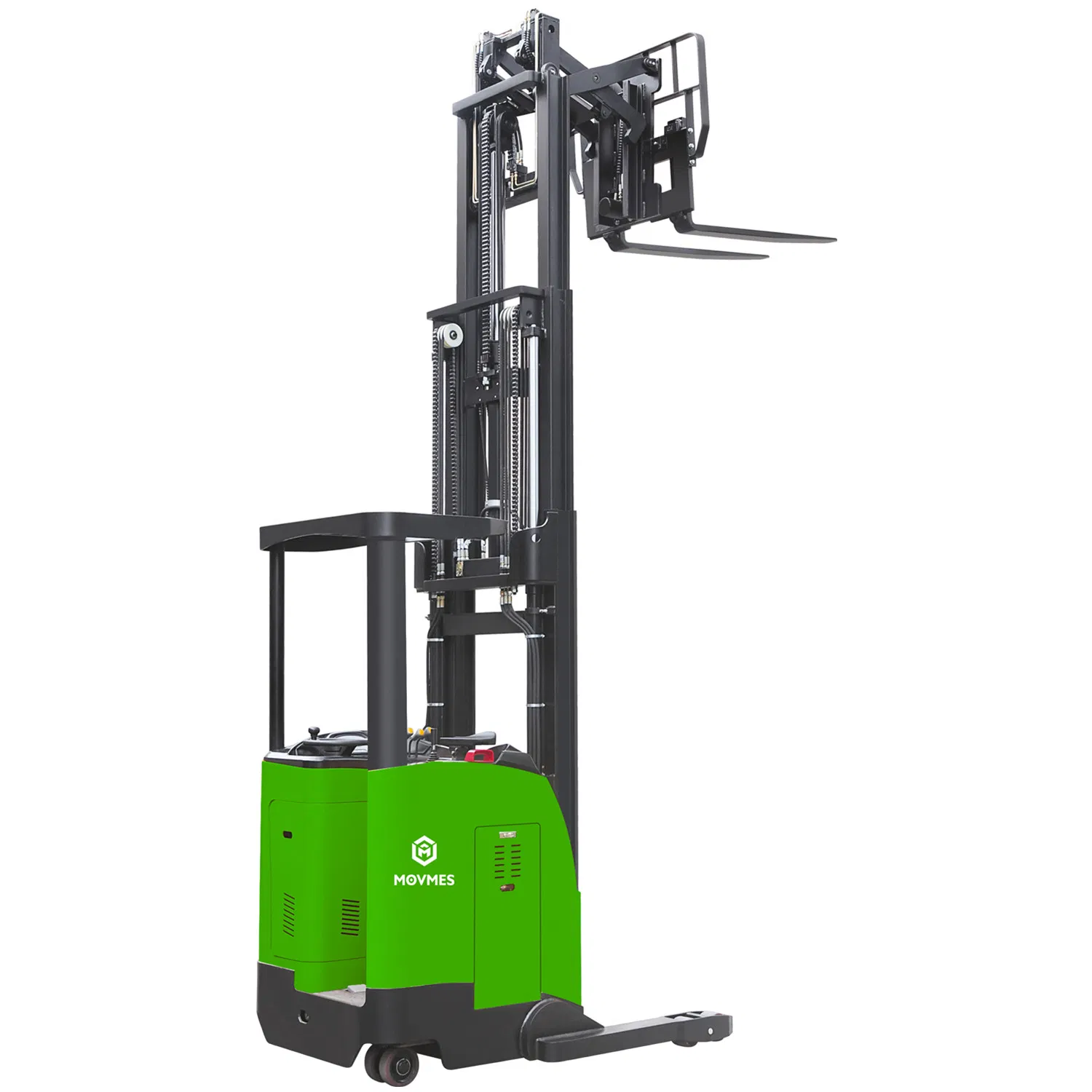

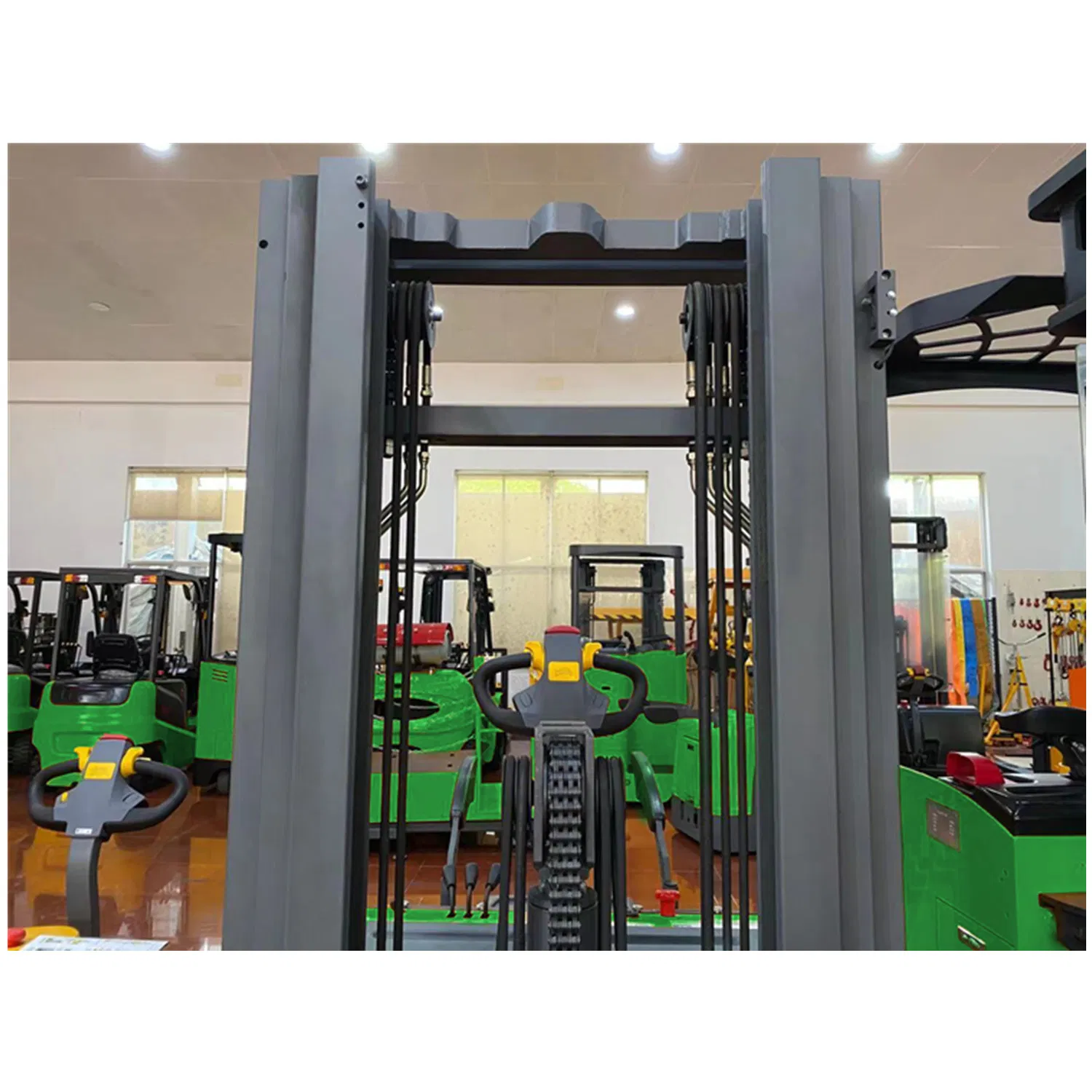

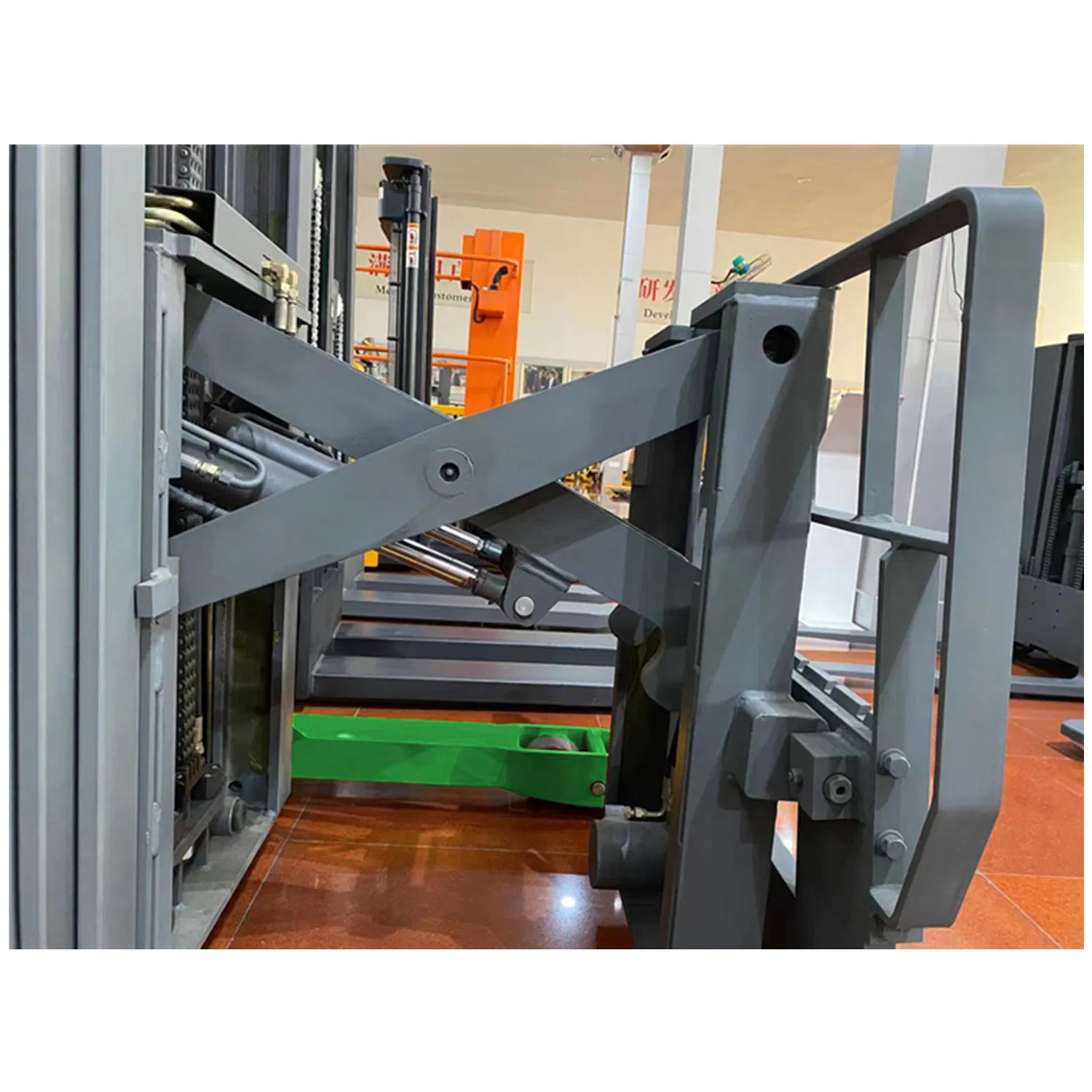

High Quality Electric Reach Truck with Single Scissor

1 / 5

High Quality Electric Reach Truck with Single Scissor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

CQDH15C

Type

Reach Forklift

Power

AC Motor

Load Capacity

1.0 - 1.5 Ton

Fuel

Electric

Lift Height

3000 to 6500 mm

Turning Radius

1718 mm

Battery Voltage

24V / 36V

HS Code

8427109000

Condition

New

🏗️ Product Overview

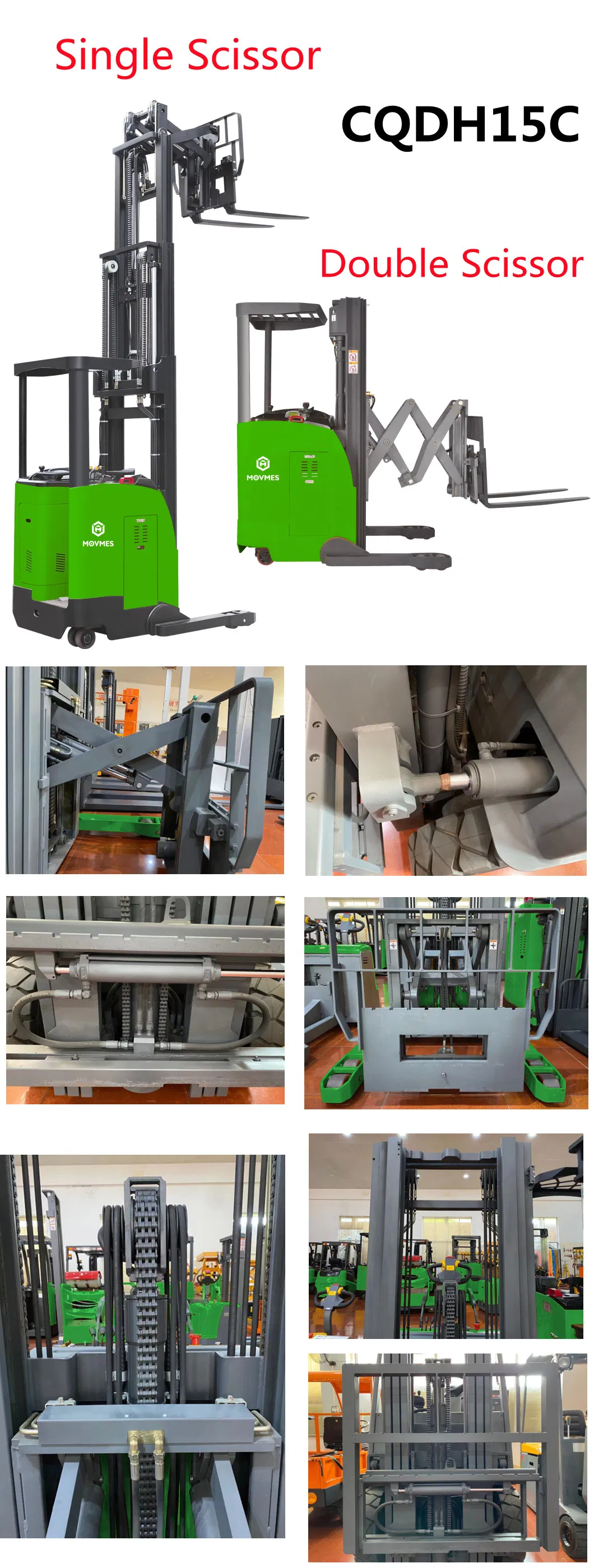

High Quality Electric Reach Truck with Single/Double Scissor

Technical Parameter	Unit	CQDH15C (Single Scissor)	CQDH15C (Double Scissor)
Drive type	-	Battery	Battery
Load capacity	Q(kg)	1500	1000
Load centre distance	c(mm)	500	500
Tyre size, front	mm	280x100+160x60	280x100+160x60
Max. lift height	h3(mm)	3000 - 6000	3000 - 6500
Overall width	b1/b2(mm)	1310/1040	1295/1040
Travel speed (laden/unladen)	Km/h	6.5/7	6.5/7
Turning radius	Wa(mm)	1718	1791

💡 Core Advantages

Safety and Stability

Advanced AC control system eliminates motor brushes and directional contactors.
Stepless speed control with intelligent regenerative braking system.
Multi-function display: battery status, hour meter, and fault indicator.
Emergency power disconnect for enhanced operator protection.
Built-in pressure relief valve protects against overloads.

Structural & Serviceability

Low center of gravity ensures stable high-lift operations.
Vertical driving wheel provides small turning radius and easy maintenance.
CANbus technology reduces wiring complexity and increases reliability.
Easy-open back cover for quick adjustment of valves and electronic parts.

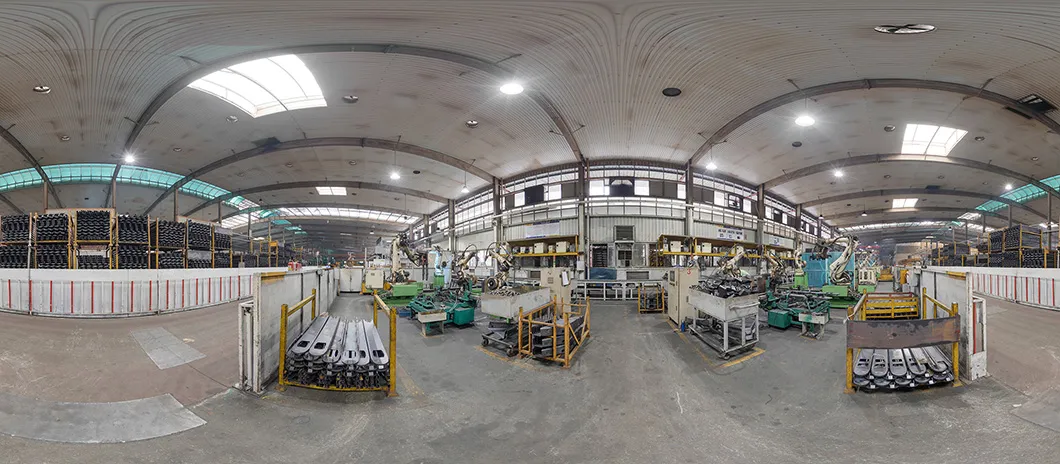

🛠️ Production & Quality Control

36+
Years Experience

150,000m²
Factory Area

500+
Equipment Types

157
Export Countries

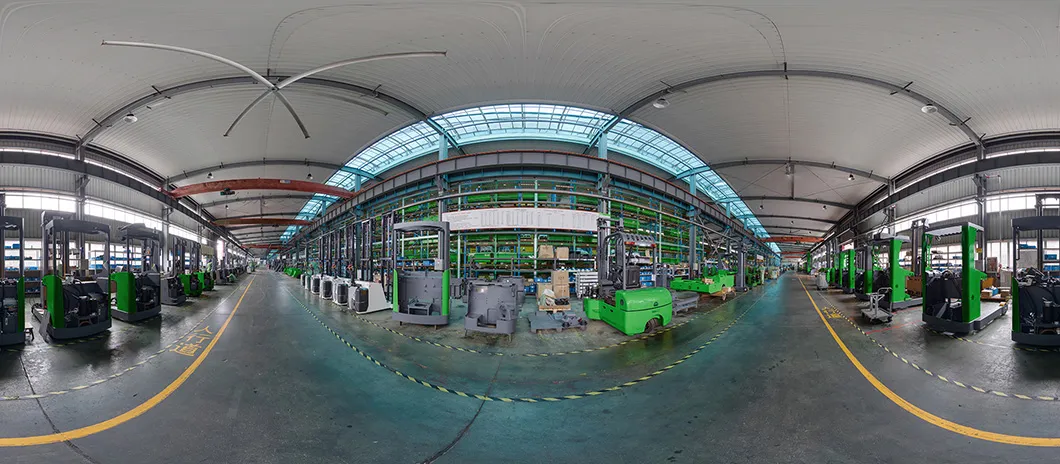

Testing System

Strengthening test detection
Stability detection
Climbing performance and current detection
Braking performance debugging
Technical parameter verification

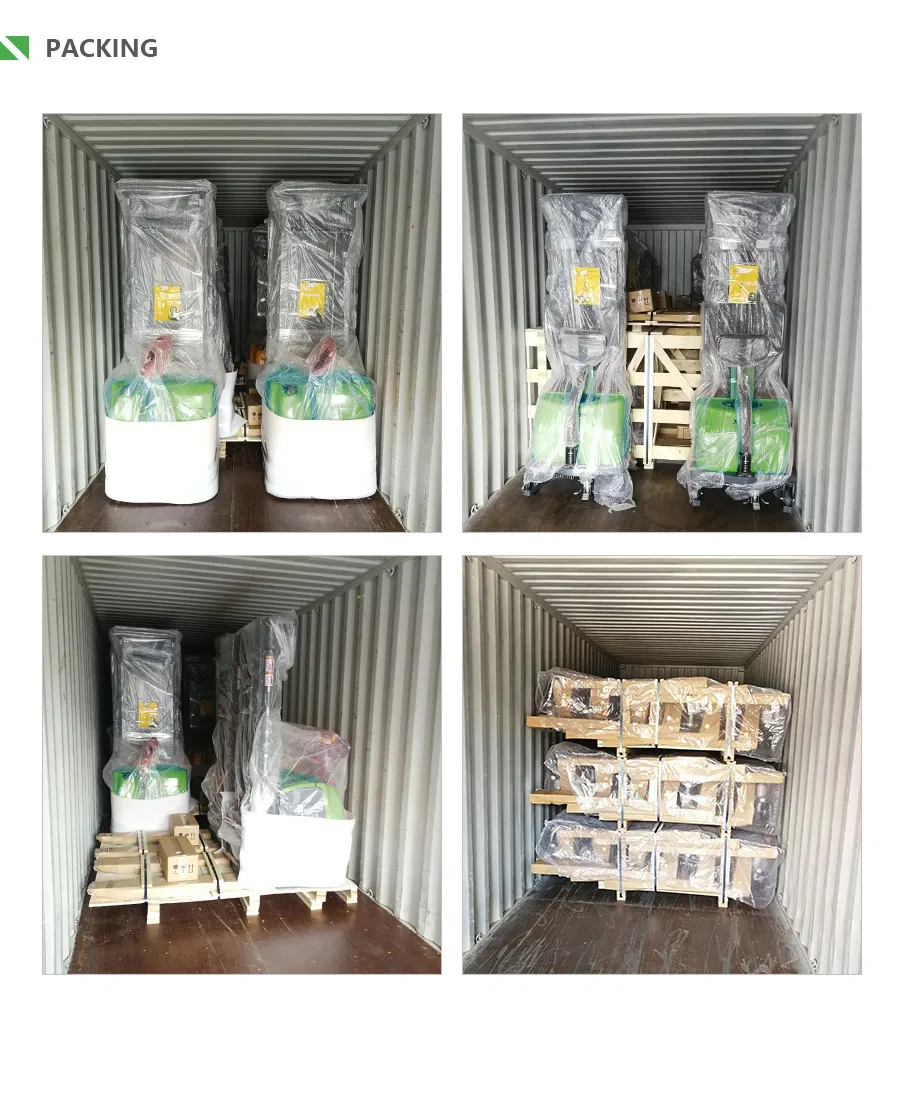

📦 Packaging & Delivery

Each truck is carefully packaged according to delivery requirements. Photos and videos are provided for approval before dispatch to ensure product integrity.

🌟 Hot Sales & Feedback

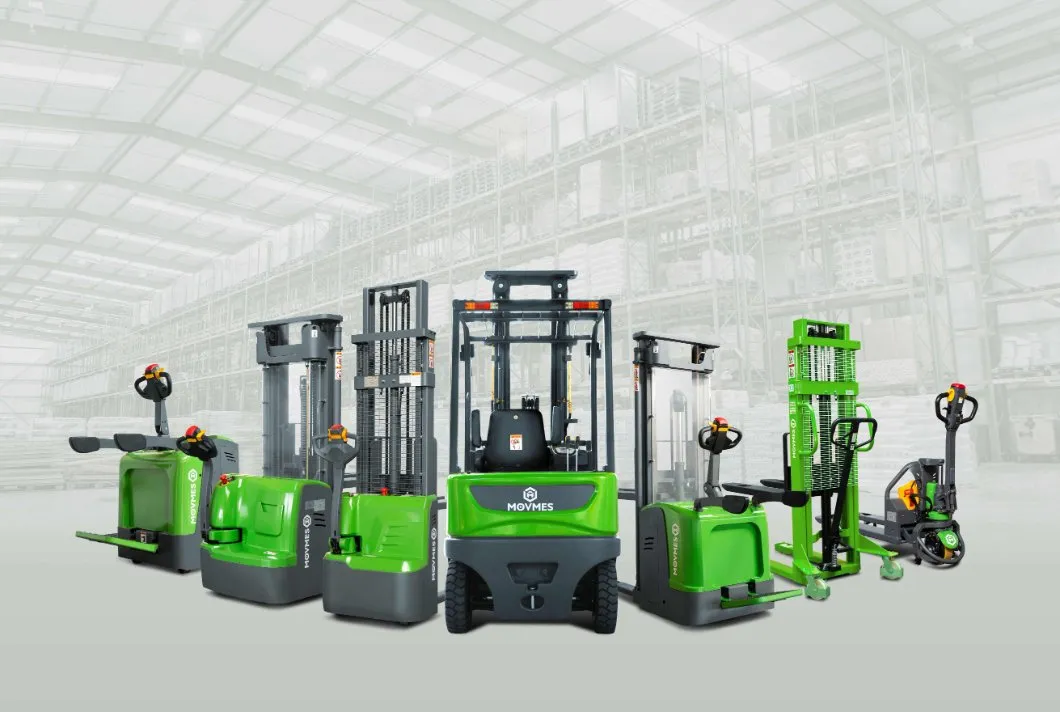

Electric Pallet Truck (2000kg)

Electric Stacker (1000kg)

Hand Pallet Truck (3000kg)

❓ Frequently Asked Questions

How long is the continuous working time and charging time? The continuous working time is approximately 3-6 hours depending on battery volume. A full charge typically requires 3-6 hours.

What are the specifications for the battery chargers? We offer 24V and 48V chargers. Power plugs can be customized to USA, UK, Australia, or European standards.

Can you provide customized products or OEM/ODM services? Yes, we specialize in developing and producing customized warehouse equipment. We have extensive experience providing professional manufacturing solutions for global brands.

What is the warranty period for these electric trucks? We provide a one-year warranty. During this period, we offer free replacement for wearing parts damaged by non-human factors.

What safety features are included in the design? The trucks include an emergency power disconnect, built-in pressure relief valves for overload protection, and an intelligent regenerative braking system.

How is the maintenance handled for the electronic components? The truck features a vertical driving wheel for easy access and a back cover that opens easily to allow quick adjustment of the valve, oil tubes, and electronic parts.
