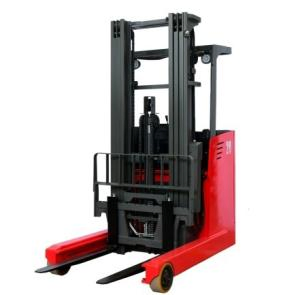

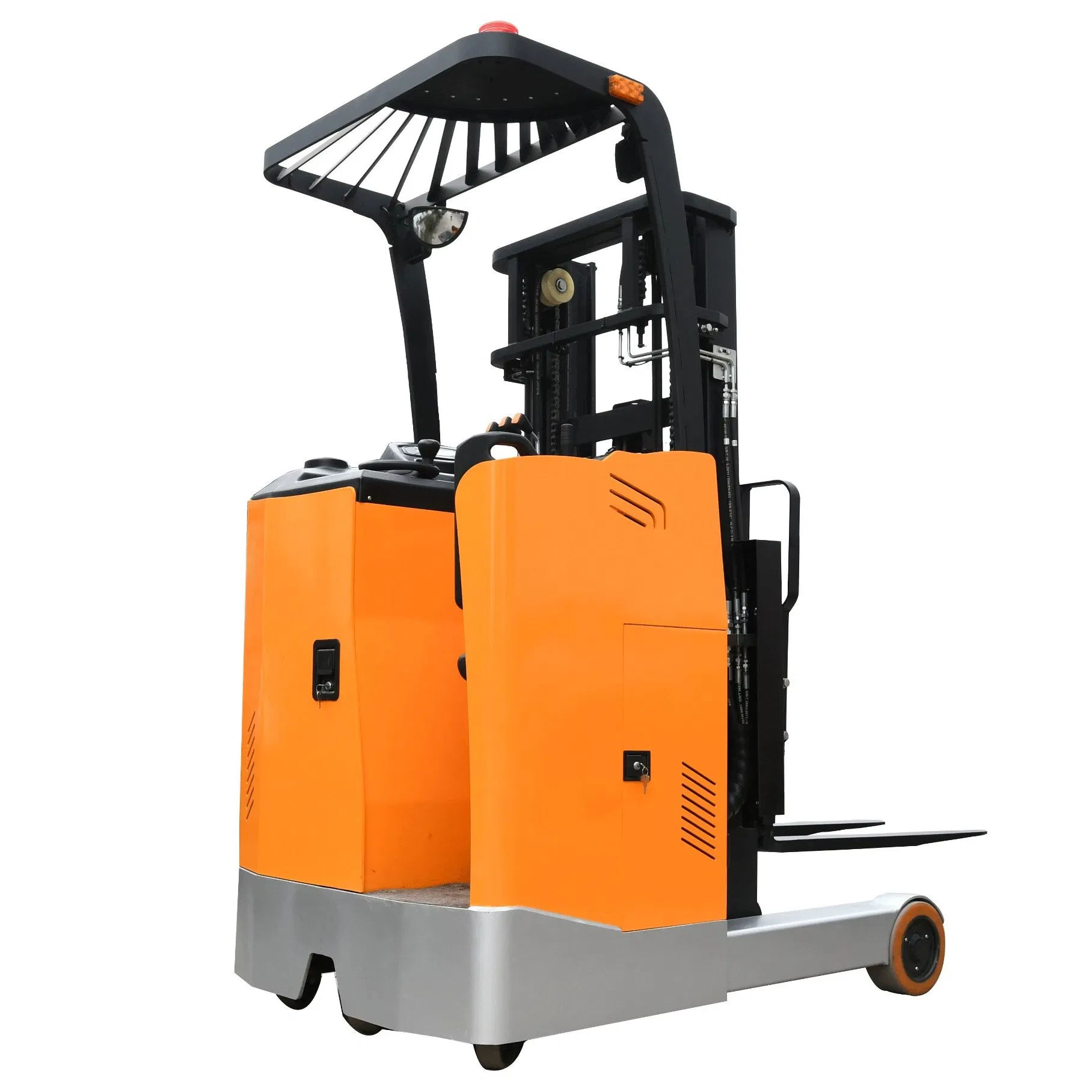

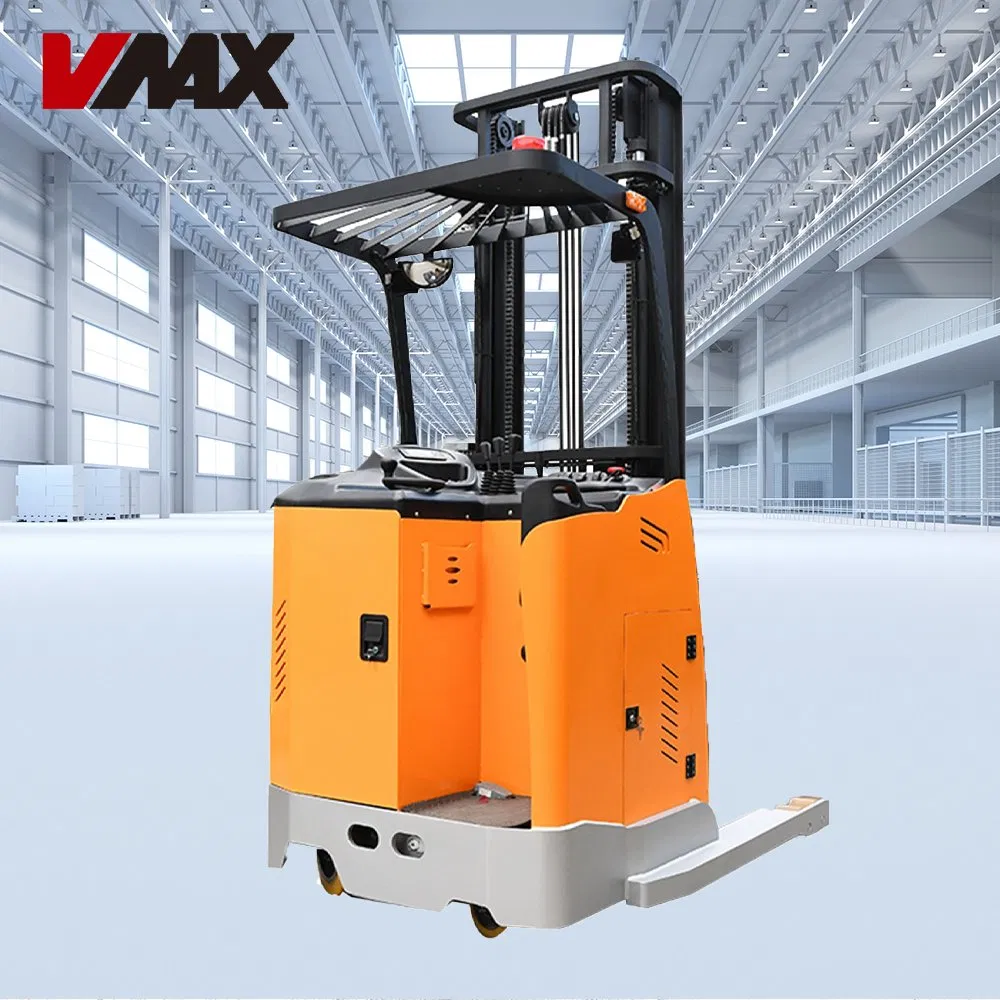

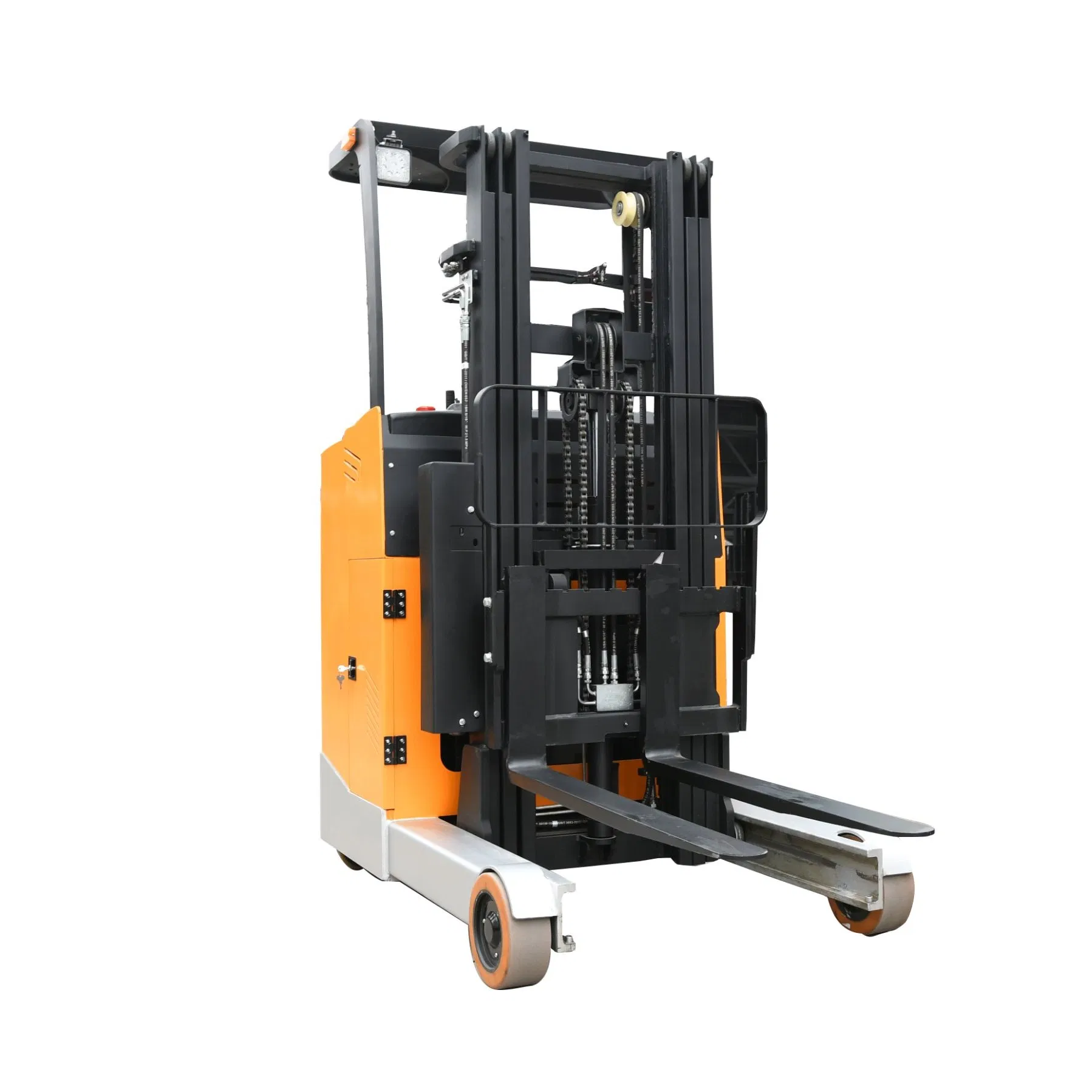

Warehouse Narrow Aisle Forklift 1.5 Ton 2 Ton Electric Reach Truck Price

Customization:	Available
Warranty:	1 Year or 2000 Hours
Cab Location:	Standing Type

Basic Information

Model:CQD

Type:Electric Forklift

Power:AC Motor

Load Capacity:1-3t

Fuel:Electric

Load center:500mm

Lift height:3000-8000mm

Condition:New

Tyres:PU Wheels

Steering:EPS

Product Description

Warehouse Narrow Aisle Forklift Electric Reach Truck

Suitable for heavy capacity and high lifting storage applications, the maximum load capacity can reach 3000kg. Featuring mast reach capabilities, it is ideally suited for storage conditions such as large plants, warehouses, supermarkets, and wharves.

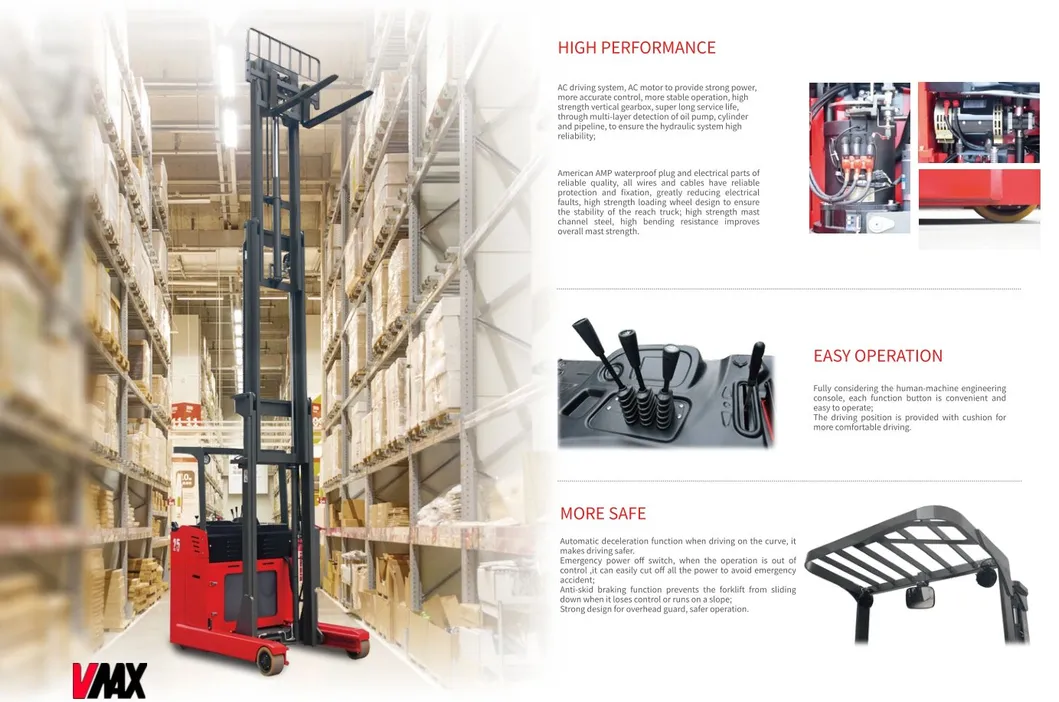

Key Product Features

Narrow Aisle Design: Significantly saves aisle width and increases storage capacity. For Model CQD12, the minimum aisle width requirement is only 2502mm.
Optimized Efficiency: AC drive motor and EPS steering reduce energy consumption by 20%, extending battery working time.
High Performance: Disc brakes and EPS steering system coordinated for high operating efficiency, ensuring better performance during heavy tasks.
Comfortable Operation: Ultralow standing plate height reduces operator fatigue; side-pull battery design allows for simple replacement and maintenance.
Curve Control Technology: Automatically reduces speed during turns to ensure the safety of goods and the operator.

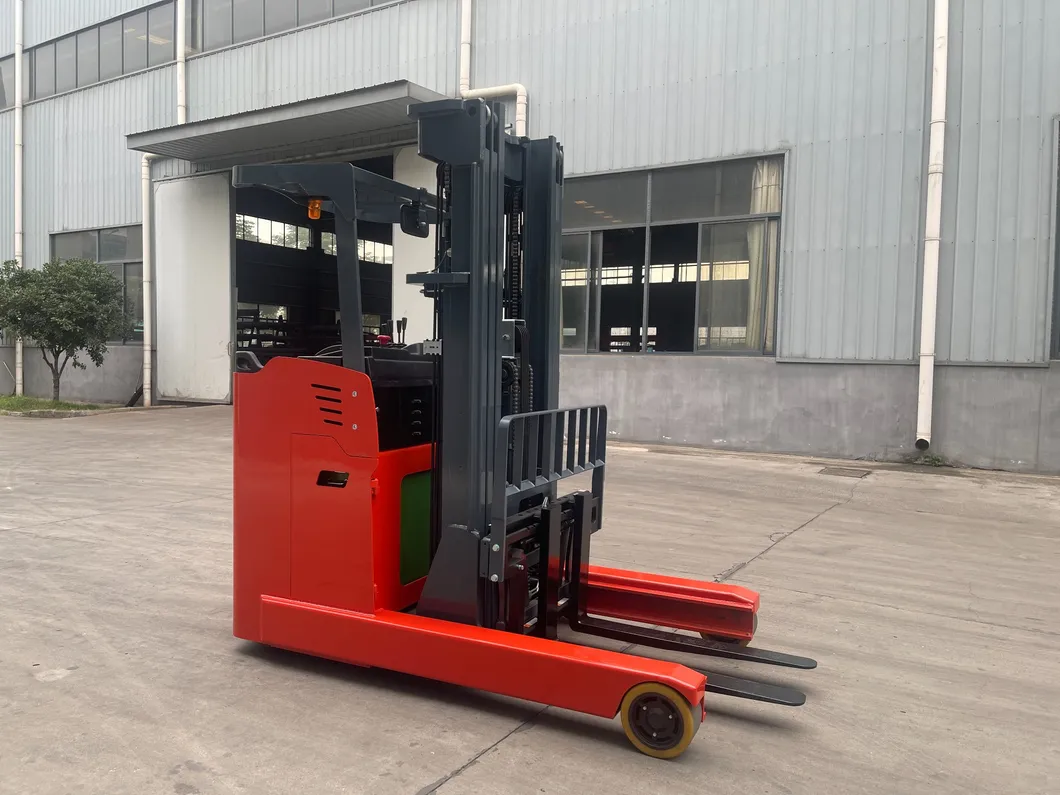

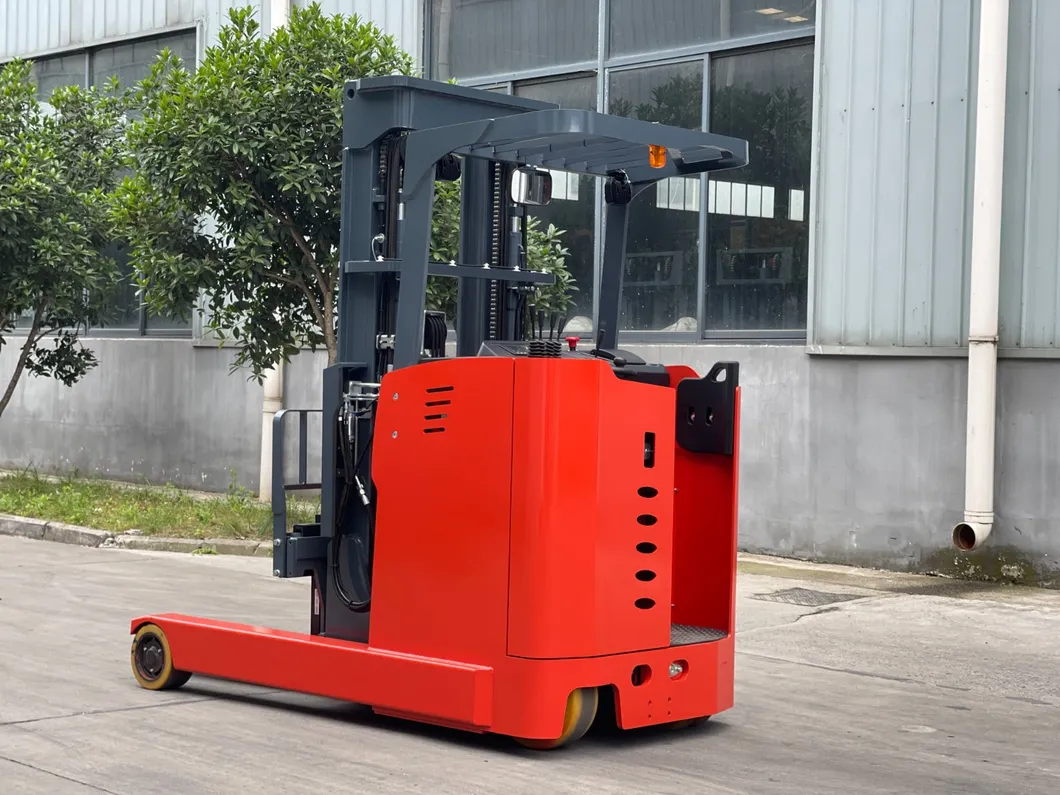

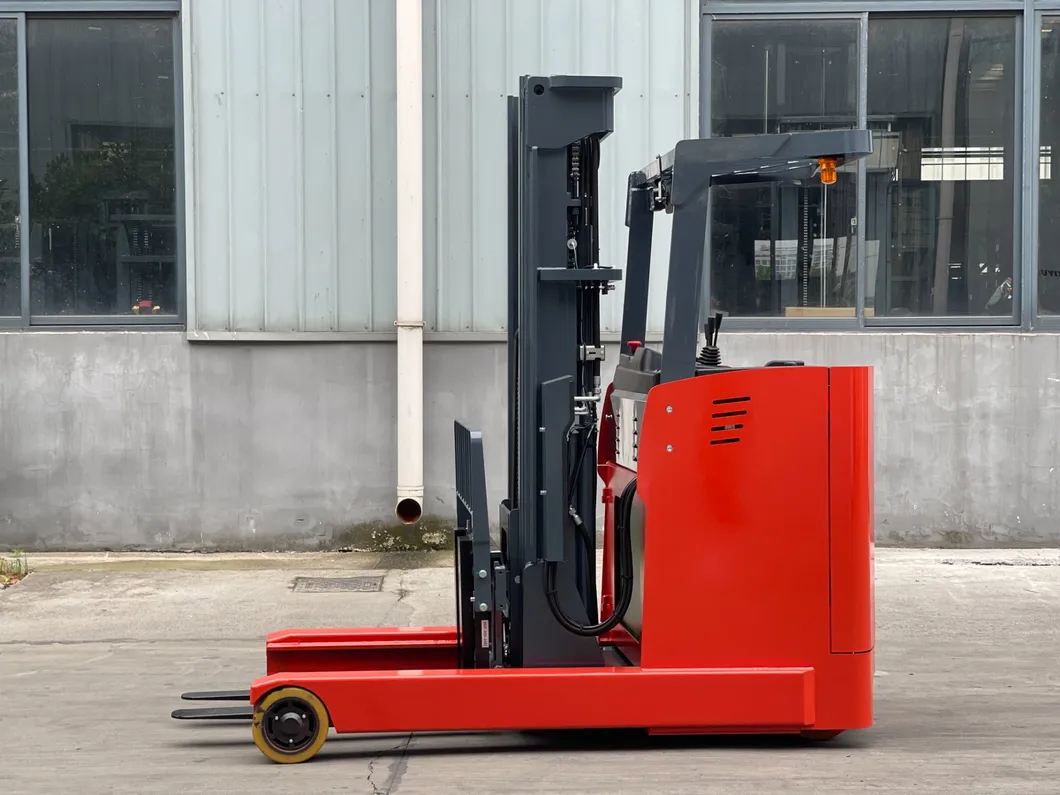

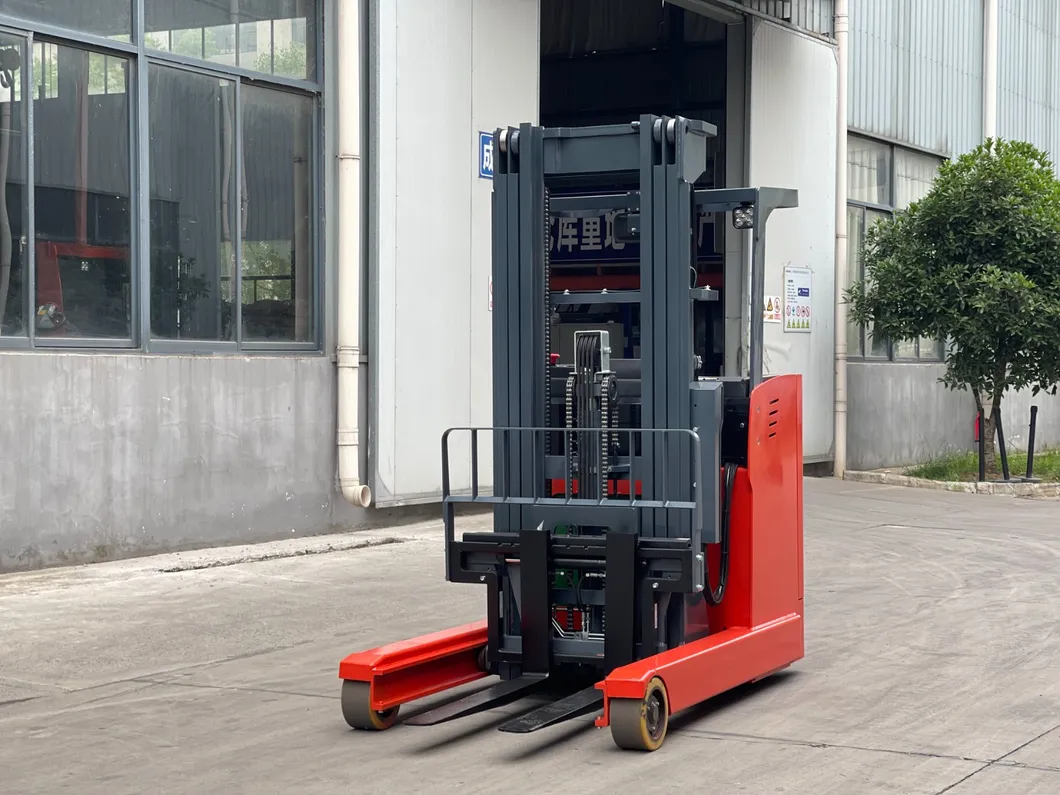

Detailed Photos

Technical Parameters

Model	Unit	CQD15	CQD20
Load capacity	kg	1500	2000
Load center	mm	500	500
Reach distance	mm	530	655
Total weight with battery	kg	2700	3025
Wheel type	-	PU	PU
Lifting height	mm	4500	6000
Overall length (without fork)	mm	1752	1902
Overall width	mm	1195	1195
Battery Capacity	V/Ah	48V300Ah	48V400Ah
Travel speed (load/unload)	km/h	7/6.5	10/9

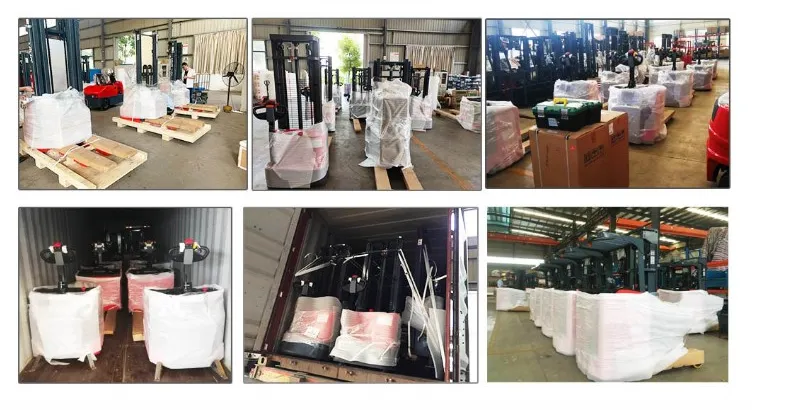

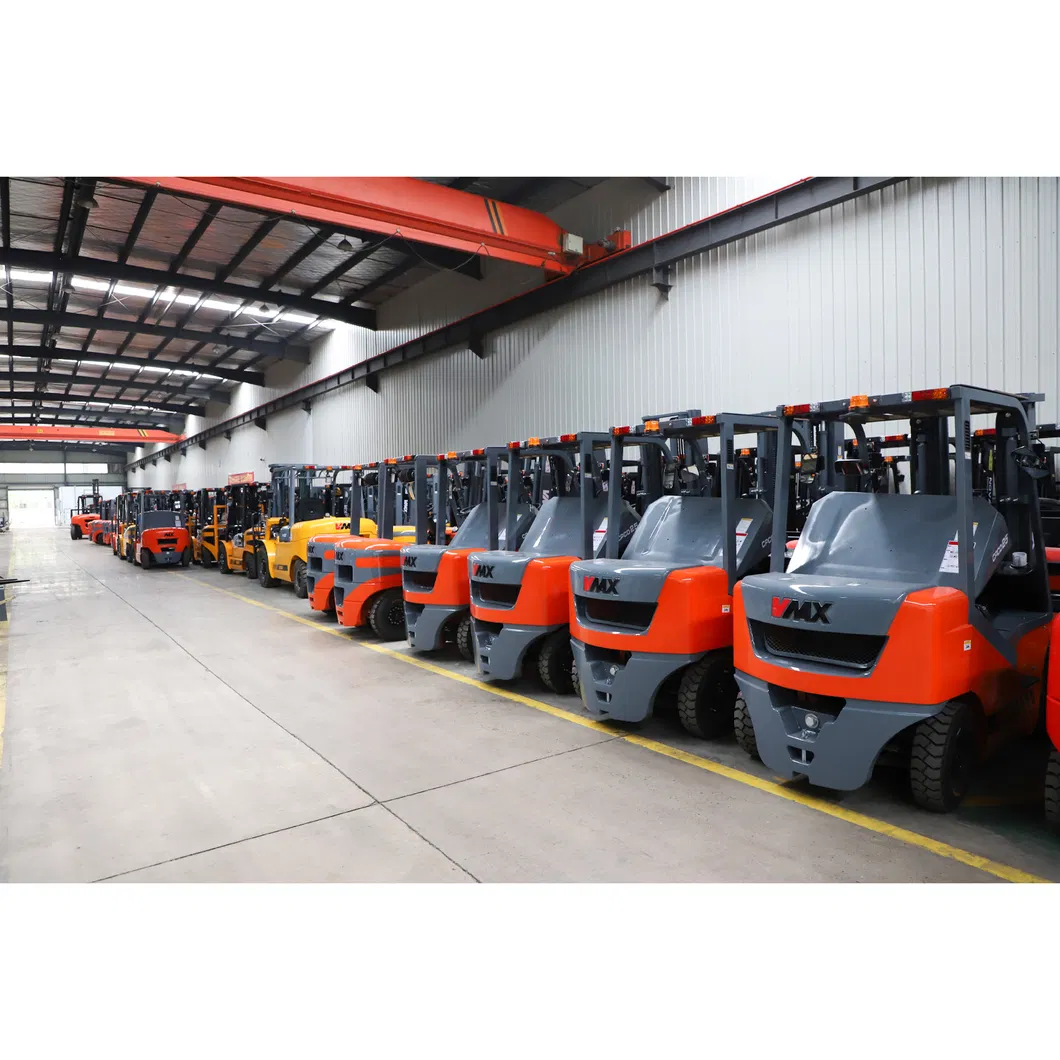

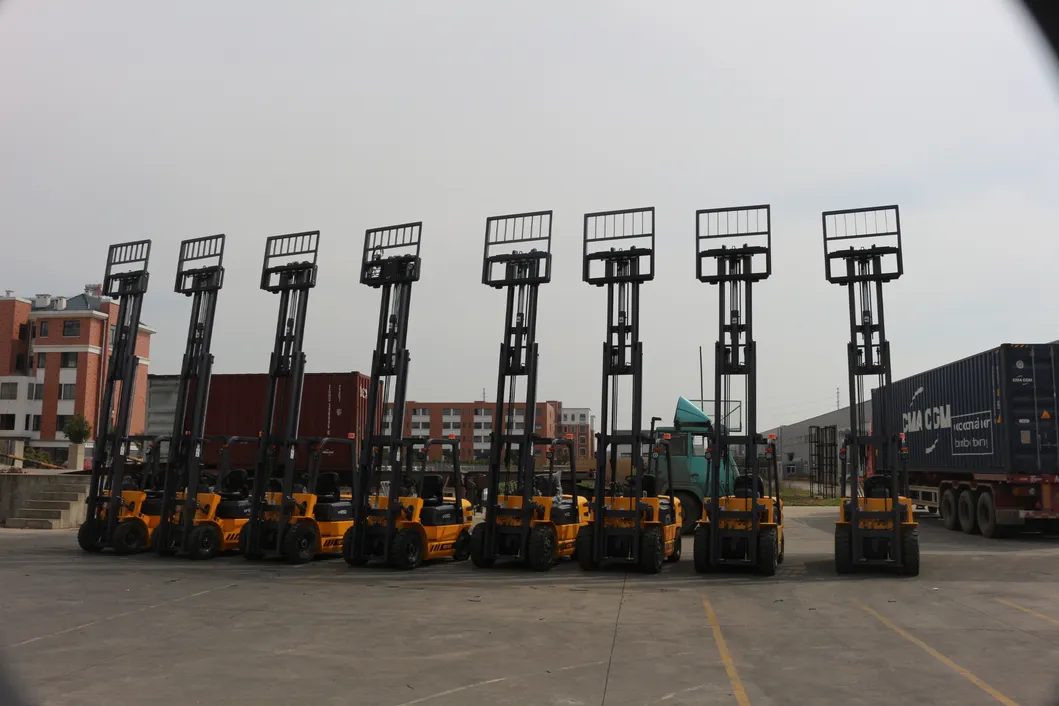

Certifications & Shipping

Frequently Asked Questions

1. What quality certifications do the forklifts have?

The workshop meets ISO9001:2008 Quality System standards, and all products are CE and SGS certified.

2. Can the forklift be customized to specific requirements?

Yes, we can customize and design according to client needs, including special colors, provided the modifications are safe and scientifically implemented.

3. What is the standard warranty period?

The standard warranty is 1 year or 2000 working hours, whichever comes first.

4. Do you offer OEM services?

Yes, with proper brand authorization, we can produce products labeled with the client's brand.

5. What are the typical payment terms?

Normally, we require 30% T/T in advance as a deposit, with the balance paid before shipment. 100% L/C at sight is also available.

6. What is the estimated delivery time?

Standard configurations are usually in stock. Production for custom orders typically takes 30-45 days after confirmation.
