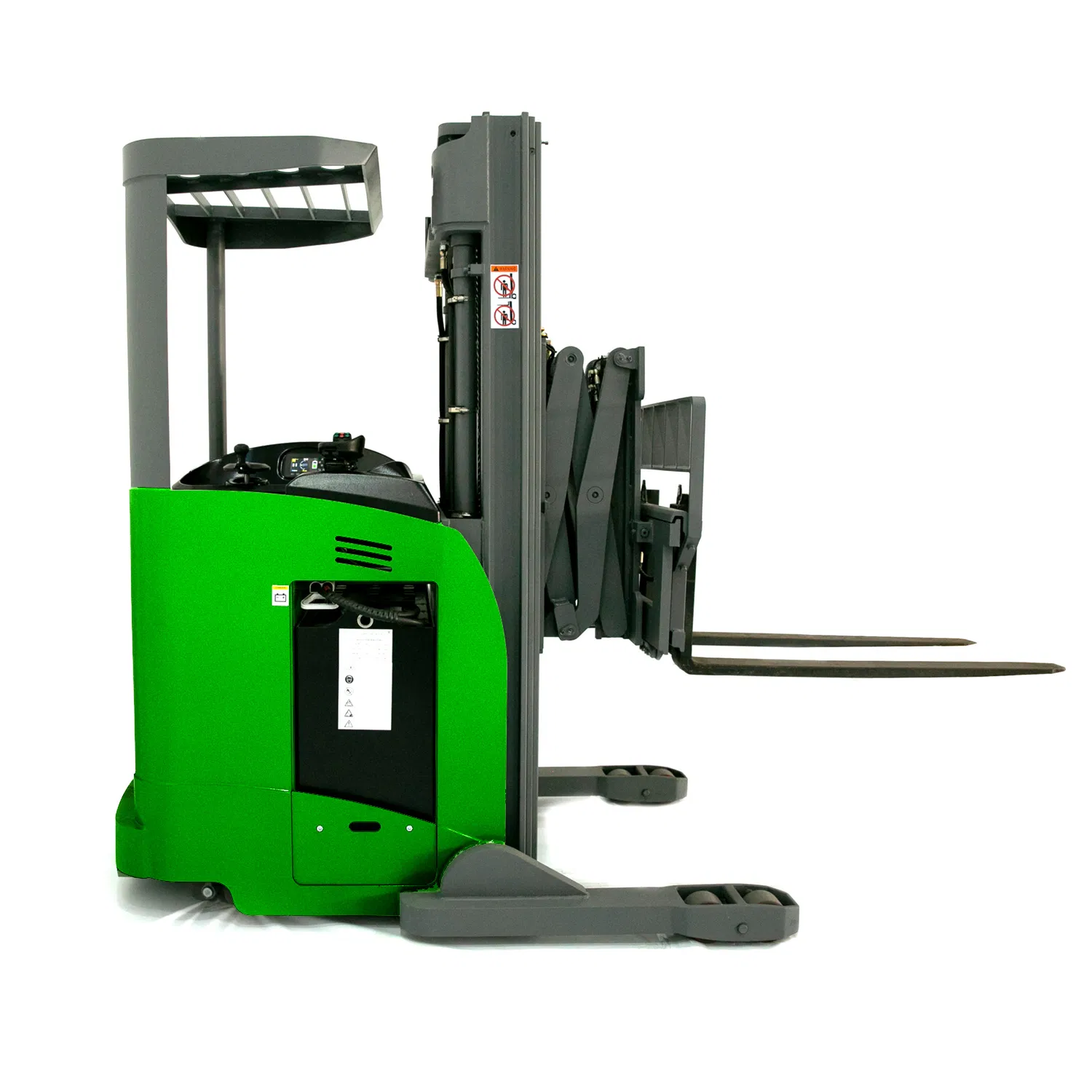

Material Handing Four Directional Vna Seated Full Power/Powered/Battery/Electric Fork/Forklift/Lift/Reach Truck Price with Single or Double Scissors Max 10000

■

Basic Specifications

Model NO.

CQDH20C

Type

Reach Forklift

Power

AC Motor

Load Capacity

1.6 Ton

Fuel

Electric

Lift height

5000-10000mm

Turning Radius

1865 mm

Battery

36V/700Ah

■

Technical Parameters

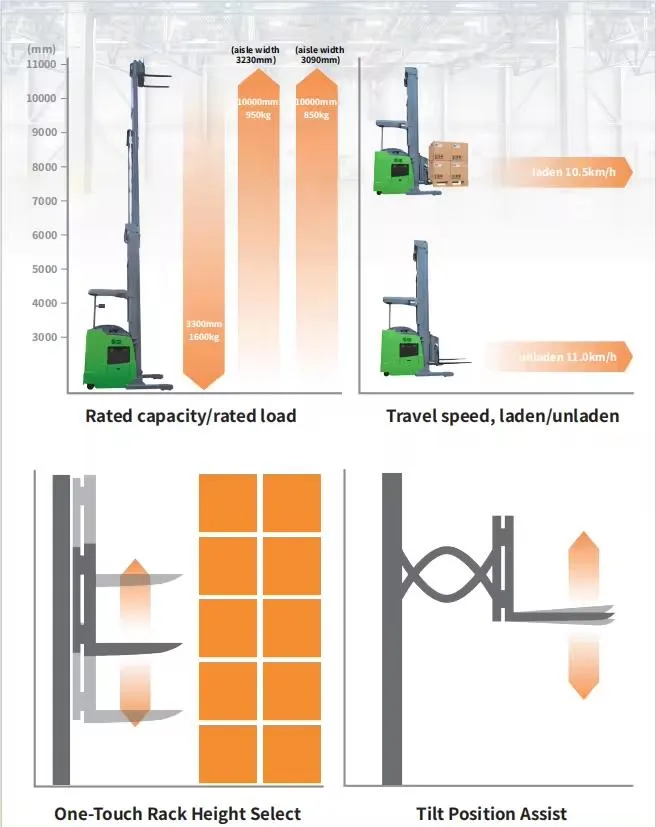

Model Parameter	Unit	CQDH20C (Double Scissor)
Drive type	-	Battery
Load capacity/rated load	Q(kg)	1600
Load centre distance	c(mm)	600
Tyre size, front	mm	343*140
Max. lift height	h3(mm)	4500-10000
Overall width	b1/b2(mm)	1352/1070
Travel speed, laden/unladen	Km/h	10.5/11
Lift speed, laden/unladen	m/s	0.29/0.29
Battery voltage/capacity	V/Ah	36/700 - 36/1000

■

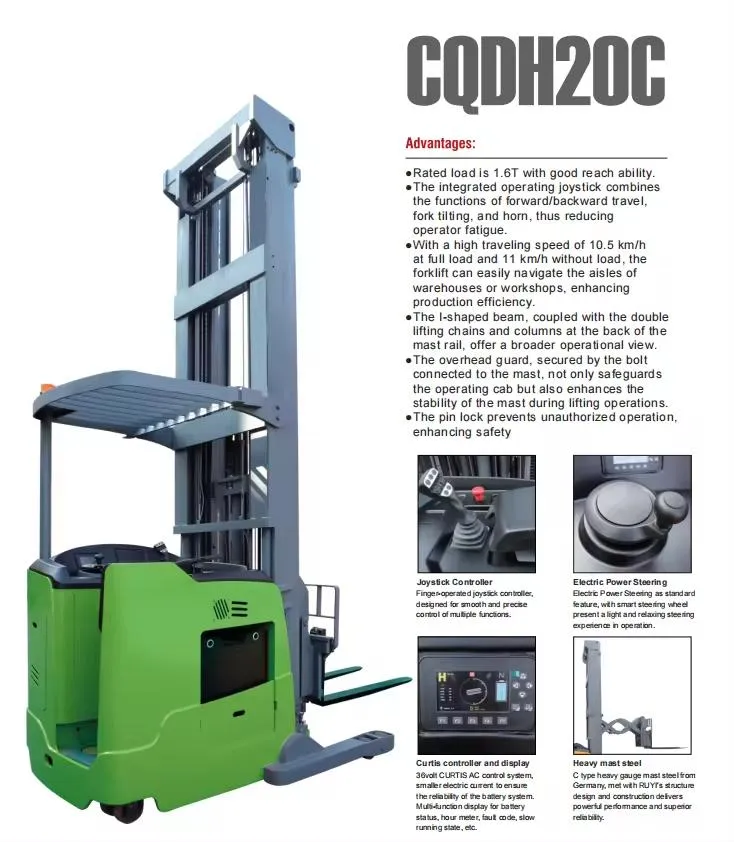

Key Advantages

✚

Ergonomic Control: Integrated operating joystick combines forward/backward travel, fork tilting, and horn functions to reduce operator fatigue.

✚

High Efficiency: Features a high traveling speed of 10.5 km/h at full load, enhancing warehouse production efficiency.

✚

Superior Visibility: The I-shaped beam and double lifting chains design provide a broader operational view for safety.

✚

Robust Protection: Overhead guard secured by mast bolts safeguards the cab and increases mast stability during lifting.

✚

Operational Security: Built-in pin lock prevents unauthorized use, ensuring site safety.

■

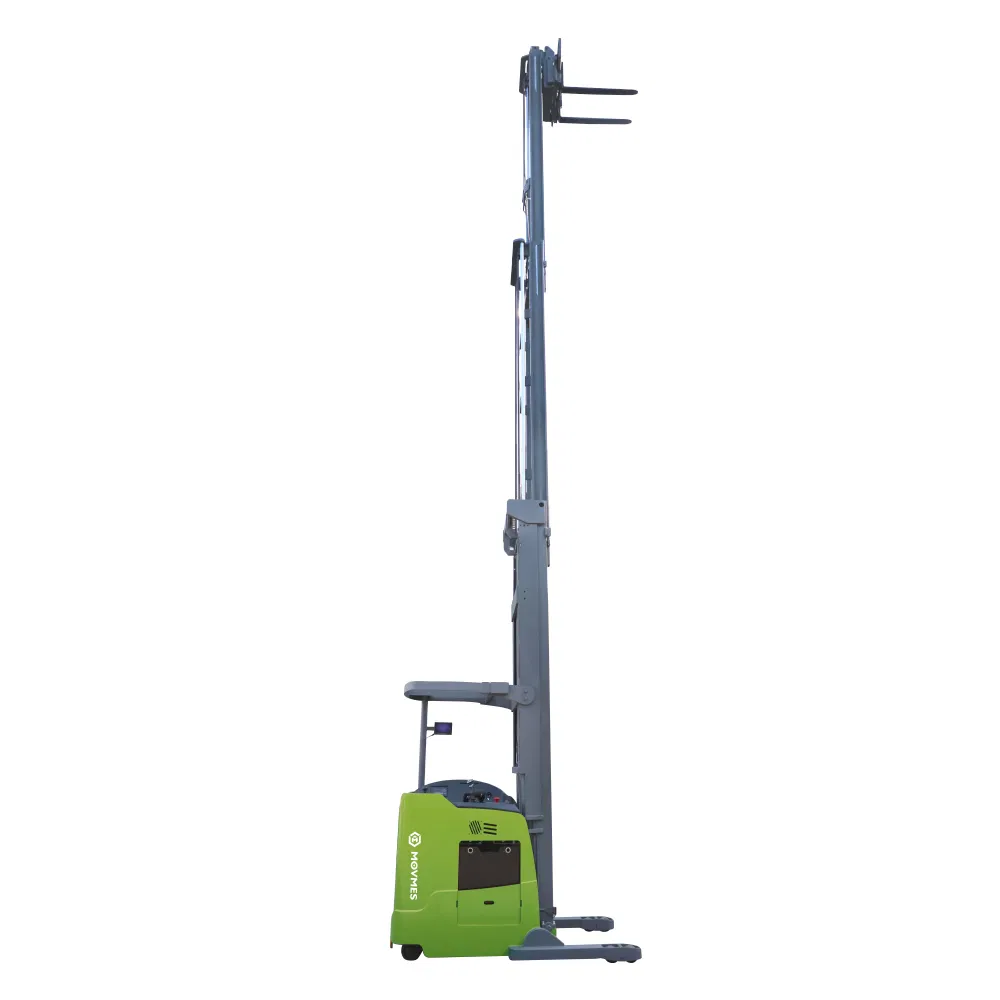

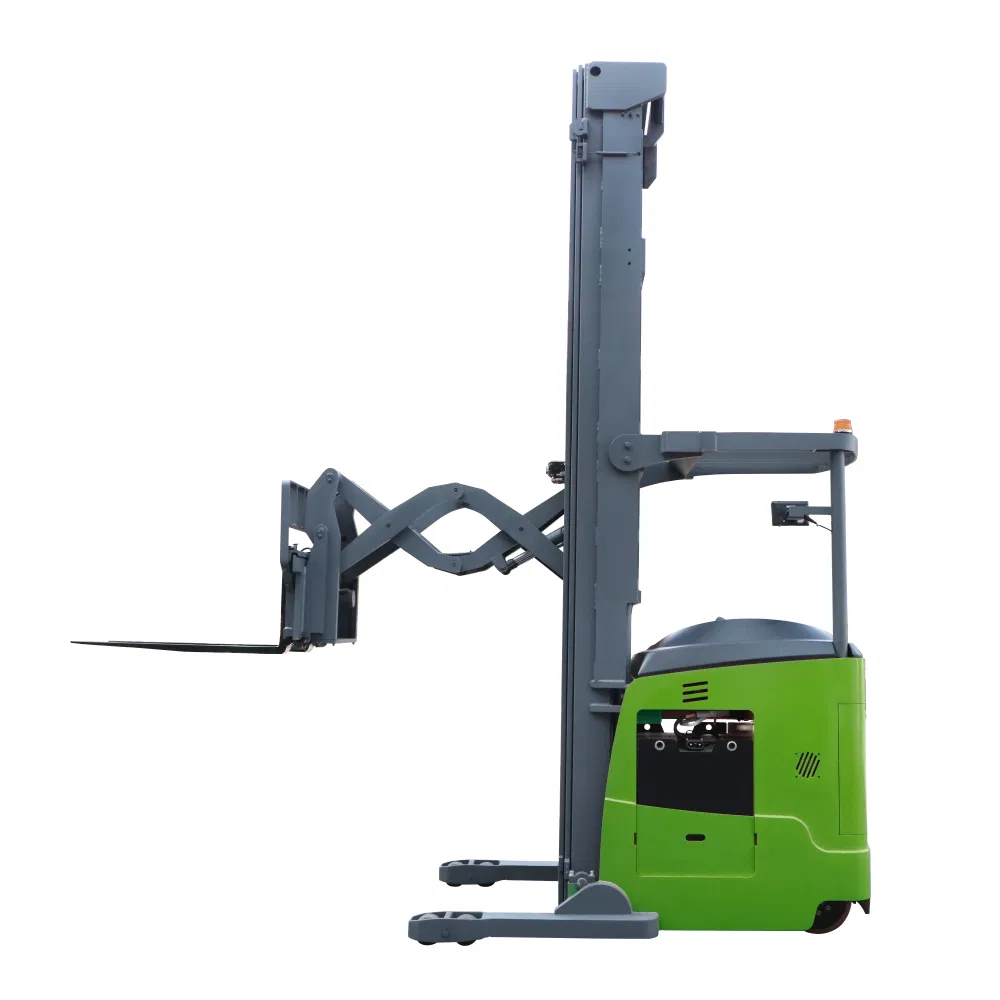

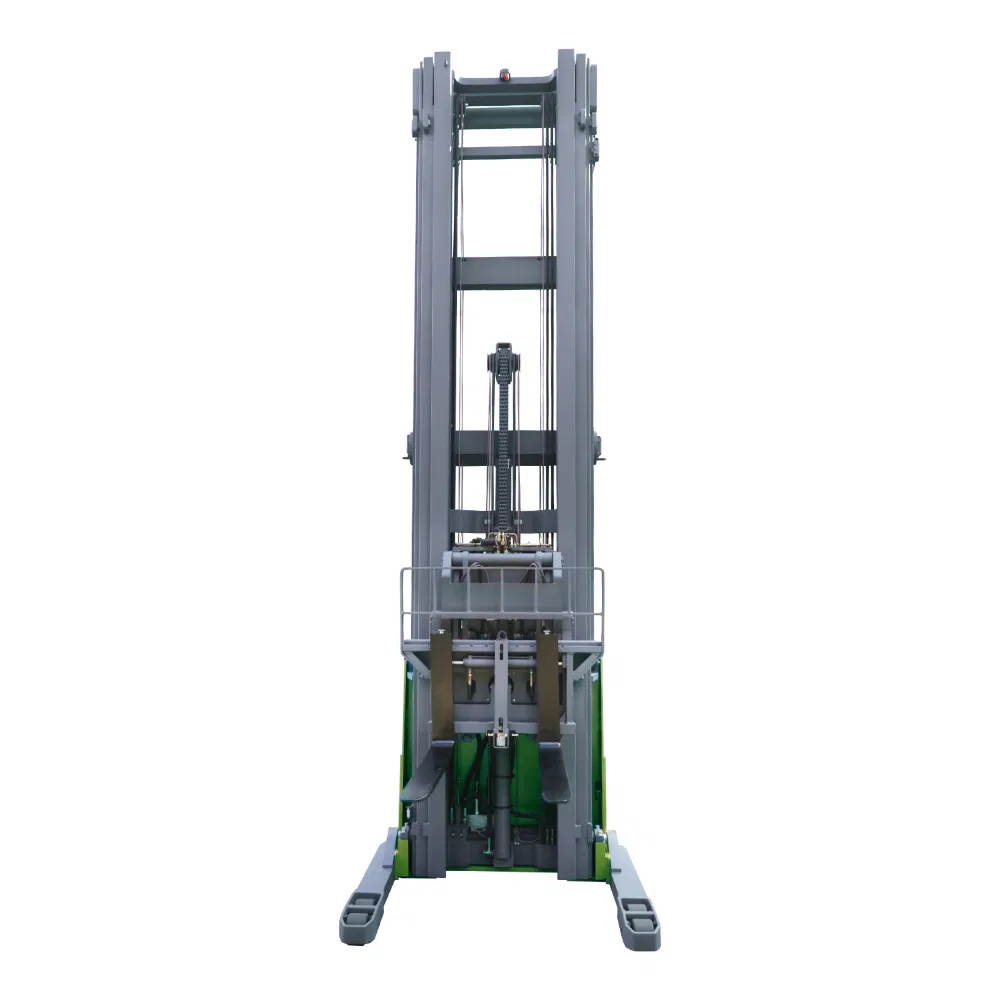

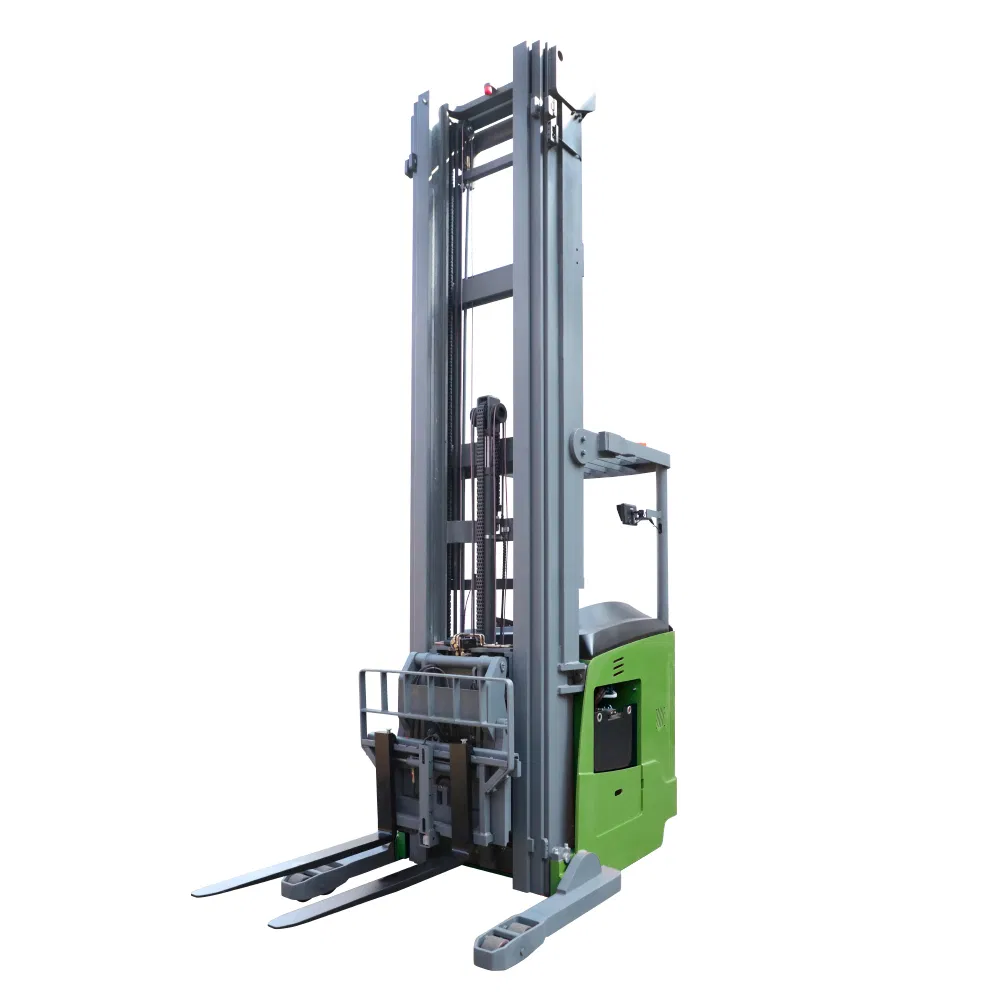

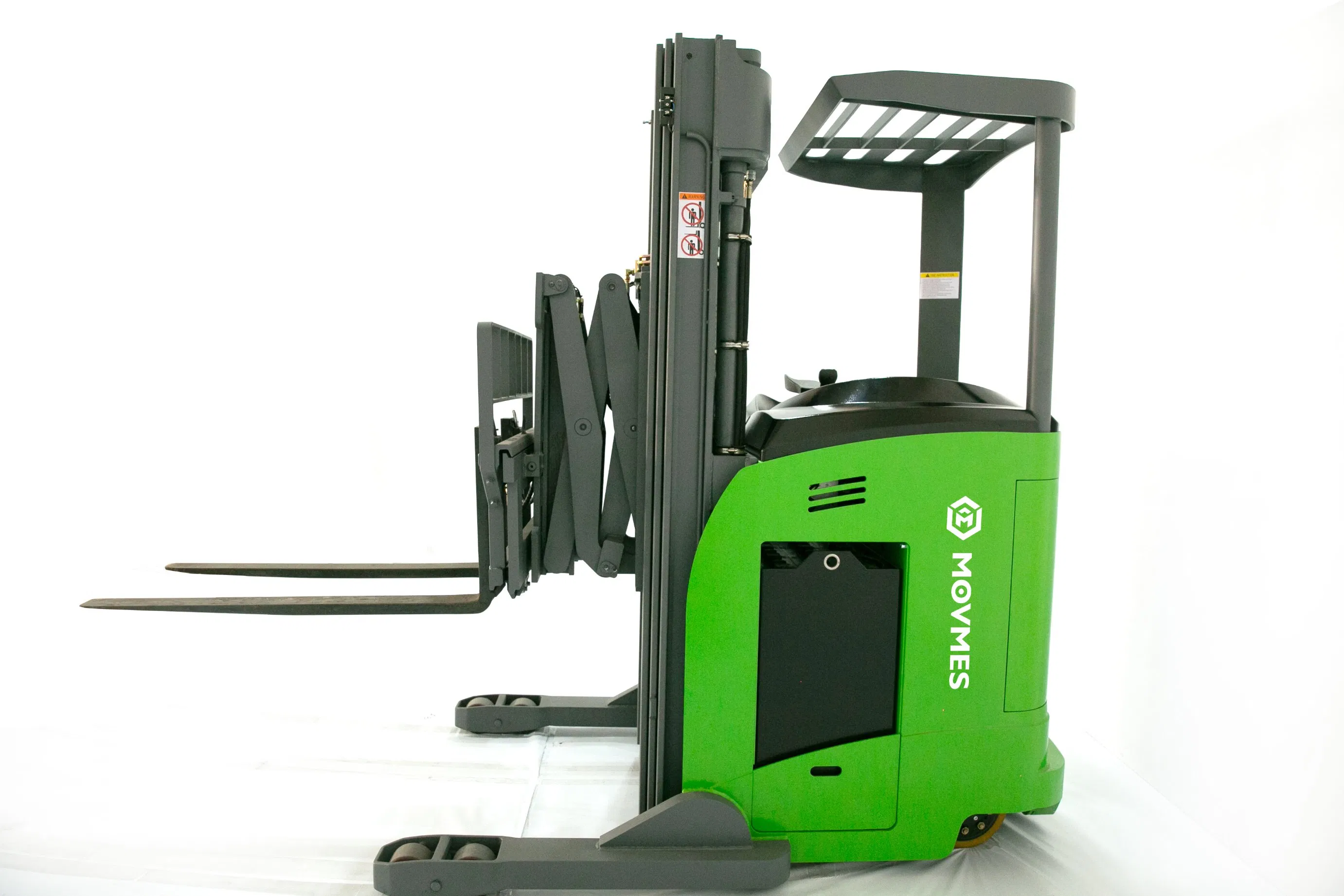

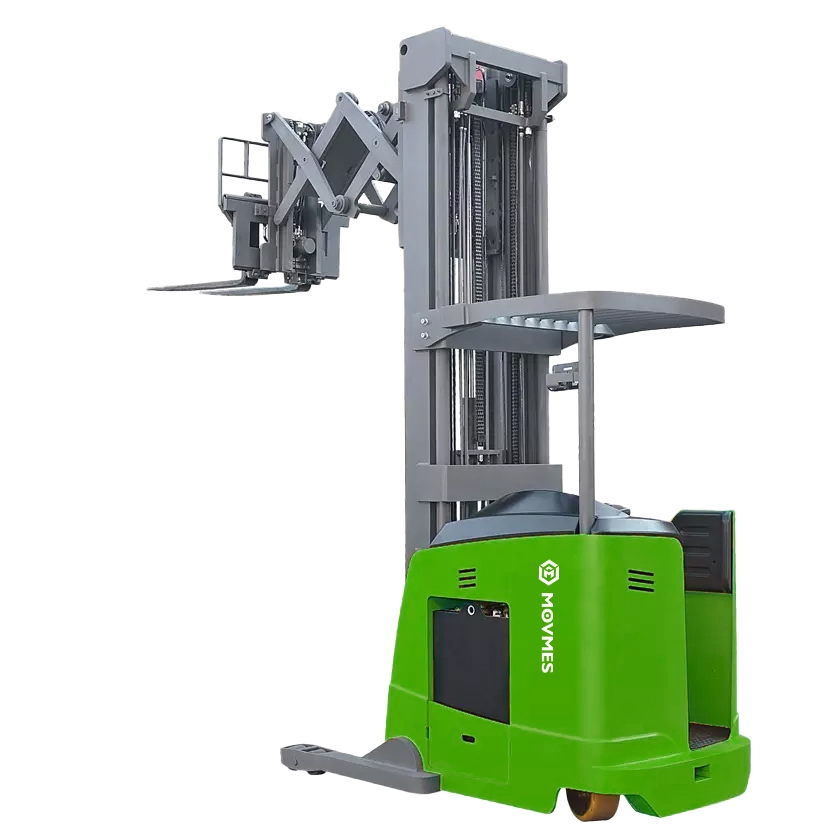

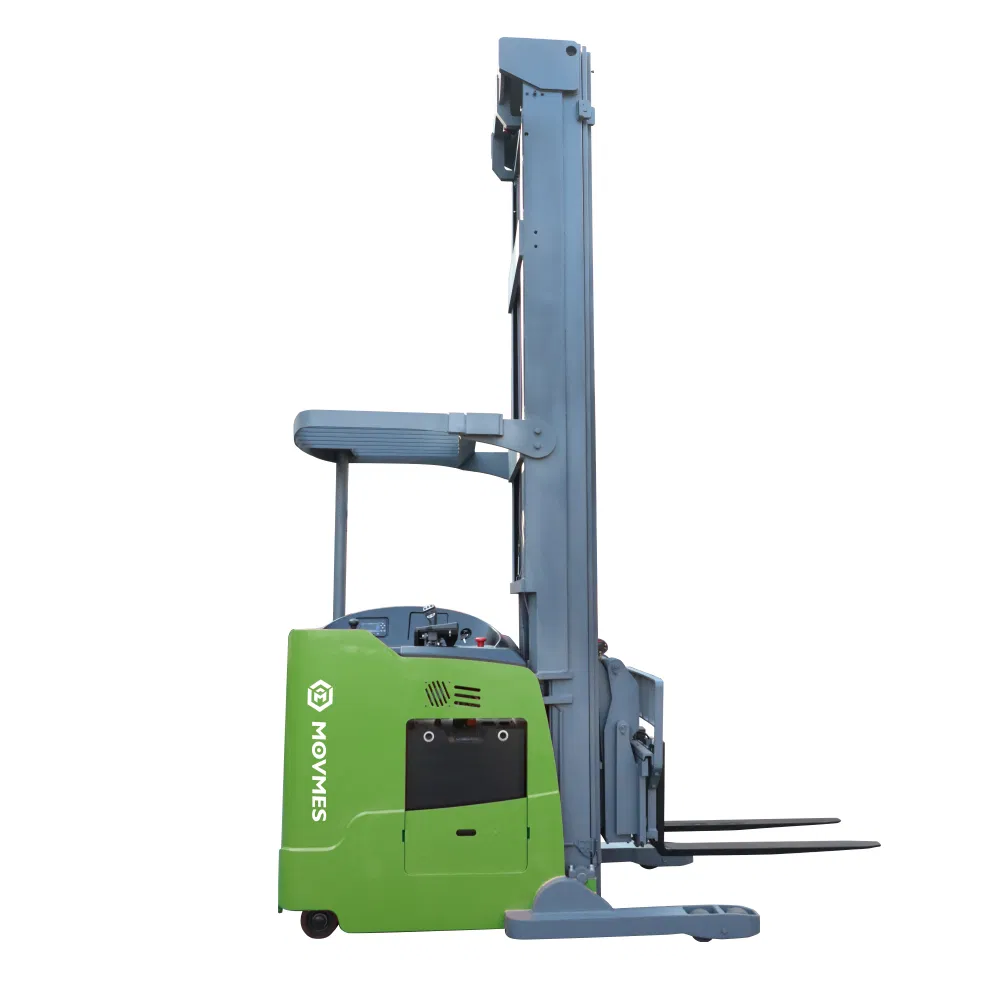

Product Gallery

■

Quality Control & Testing

Every unit undergoes five rigorous test items before delivery:

✓ 1. Strengthening test detection

✓ 2. Stability detection

✓ 3. Climbing performance and current detection

✓ 4. Braking performance debugging

✓ 5. Technical parameter verification

■

Frequently Asked Questions

How long is the continuous working time and charging duration?

The battery's continuous working time is approximately 3-6 hours, depending on the battery volume. Full charging typically takes 3-6 hours.

What are the charger specifications?

We offer 24V and 48V chargers. Side-way battery systems with roll-out capability are available for convenient replacement. Power plugs can be configured to USA/UK/AU/EU standards.

Can you provide customized, OEM, or ODM products?

Yes. With decades of experience since 1985, we professionally develop and produce warehouse logistics equipment, including manual/electric pallet trucks, reach trucks, and forklifts tailored to specific needs.

What is the warranty policy for this reach truck?

We provide a one-year warranty. During this period, we provide free replacements for wearing parts damaged by non-human factors.

Is this reach truck suitable for Narrow Aisle (VNA) operations?

Yes, with a turning radius of 1865mm and optimized aisle widths (approx. 3100mm), this truck is specifically designed for efficient high-density warehouse storage.

What certifications do your products hold?

Our products are ISO9001, ISO14001, and OHSAS18001 certified. Over 90% of our material handling equipment is TUV/CE approved, meeting EN3691 standards.
