Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
1 / 5
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150
Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150

Chinese Manufacturer 150kg Semi Electric Stacker Hand Push Walkie Stacker Work Positioner Light Electric Lifting Stacker Electric Pallet Stacker E100 E150

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
E100, E150
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
100kg - 150kg
Driven Type
DC Electric
Certification
CE, ISO 9001
Lifting Height
130mm ~ 1700mm
Platform Size
600*470mm
Pump Station
0.8kw
Package Size
95.00cm * 65.00cm * 200.00cm
💡

Product Description

Semi Electric Stacker Overview

Semi-Electric Work Positioner Features

  • Compact Design: Mini exterior provides convenient operation in narrow aisles.
  • Safety First: Integrated safety device prevents fast falling due to mechanical issues.
  • Maintenance Free: High-quality battery with digital power display and low-voltage alarm.
  • Standard Compliance: Fully compliant with EN1757 European safety standards.
Work Positioner Detail

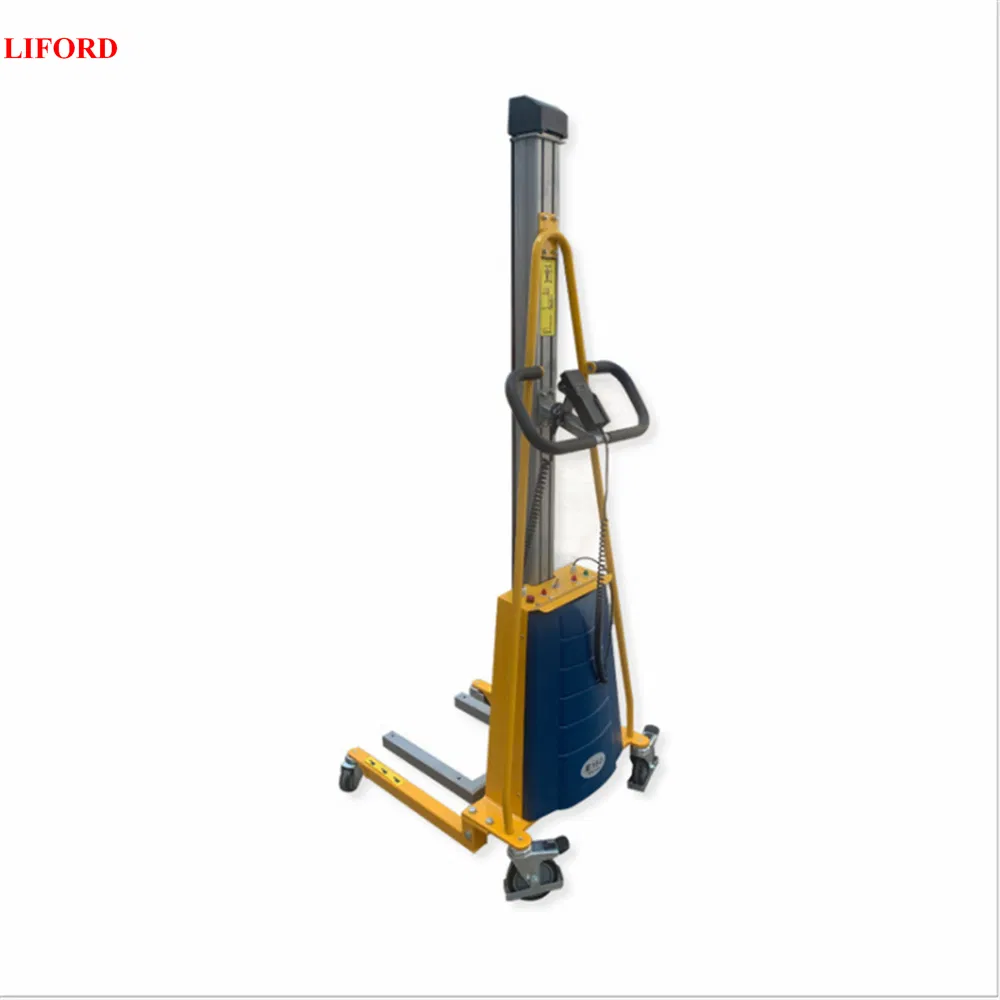

Electric Stacker Operation
📸

Detailed Photos

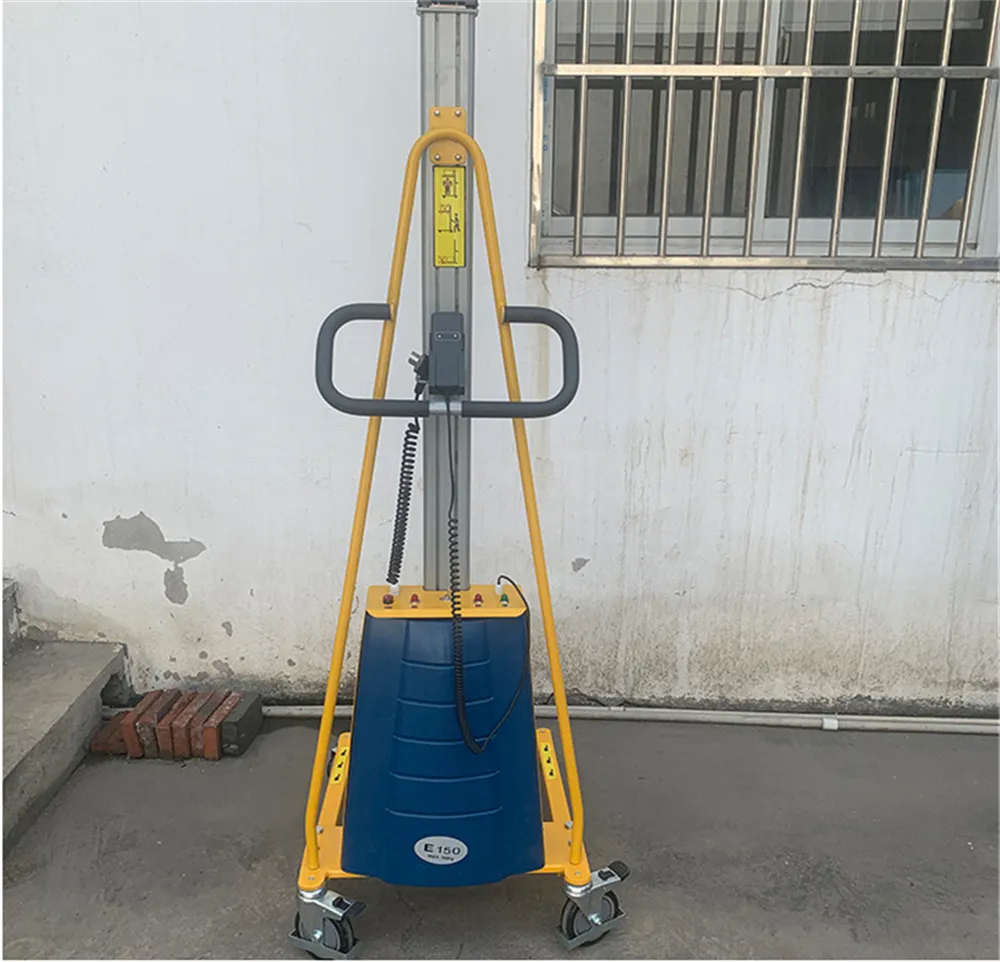

Stacker Detail 1

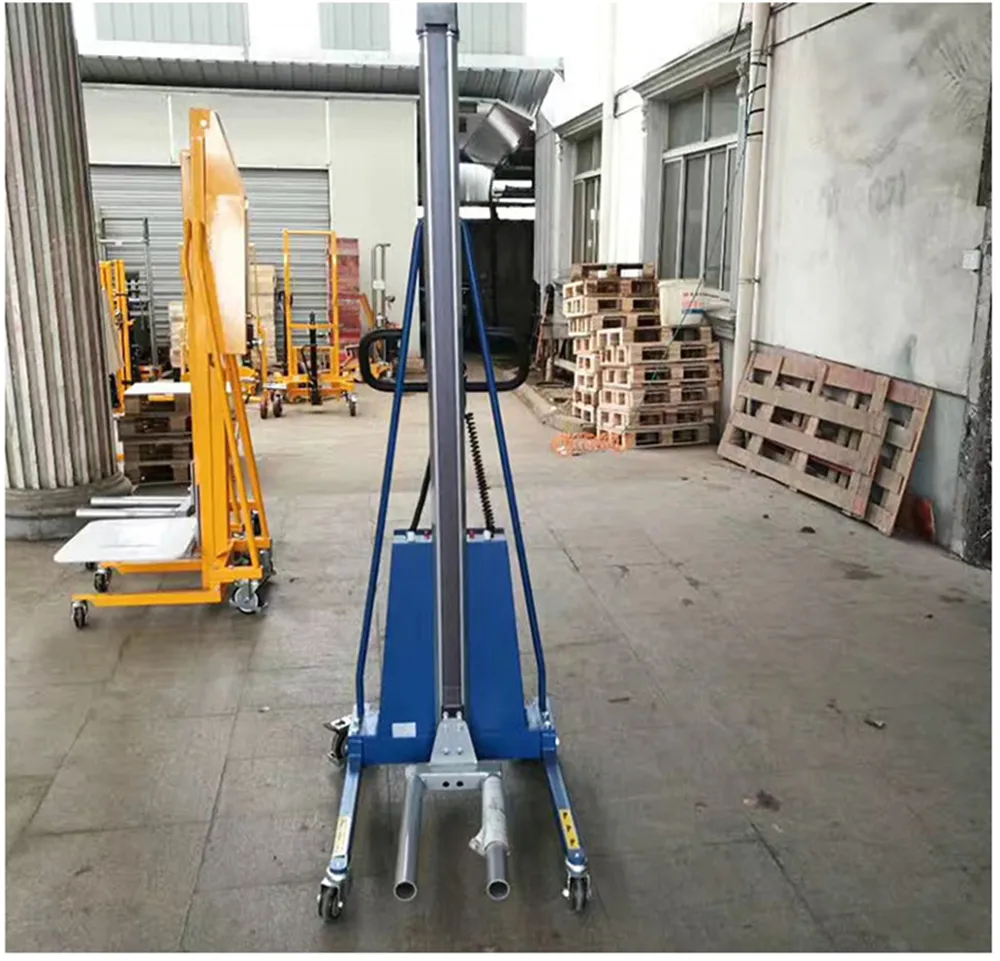

Stacker Detail 2

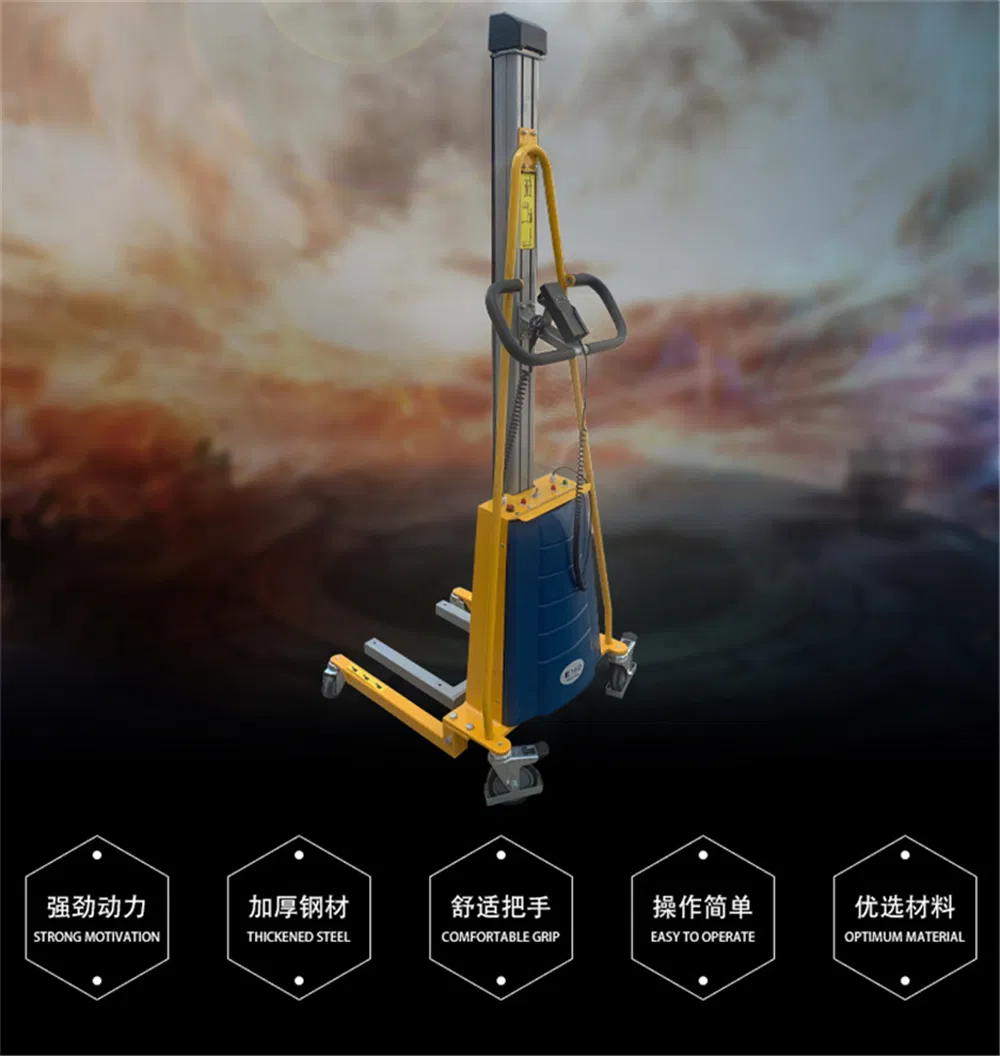

Stacker Detail 3
Stacker Components

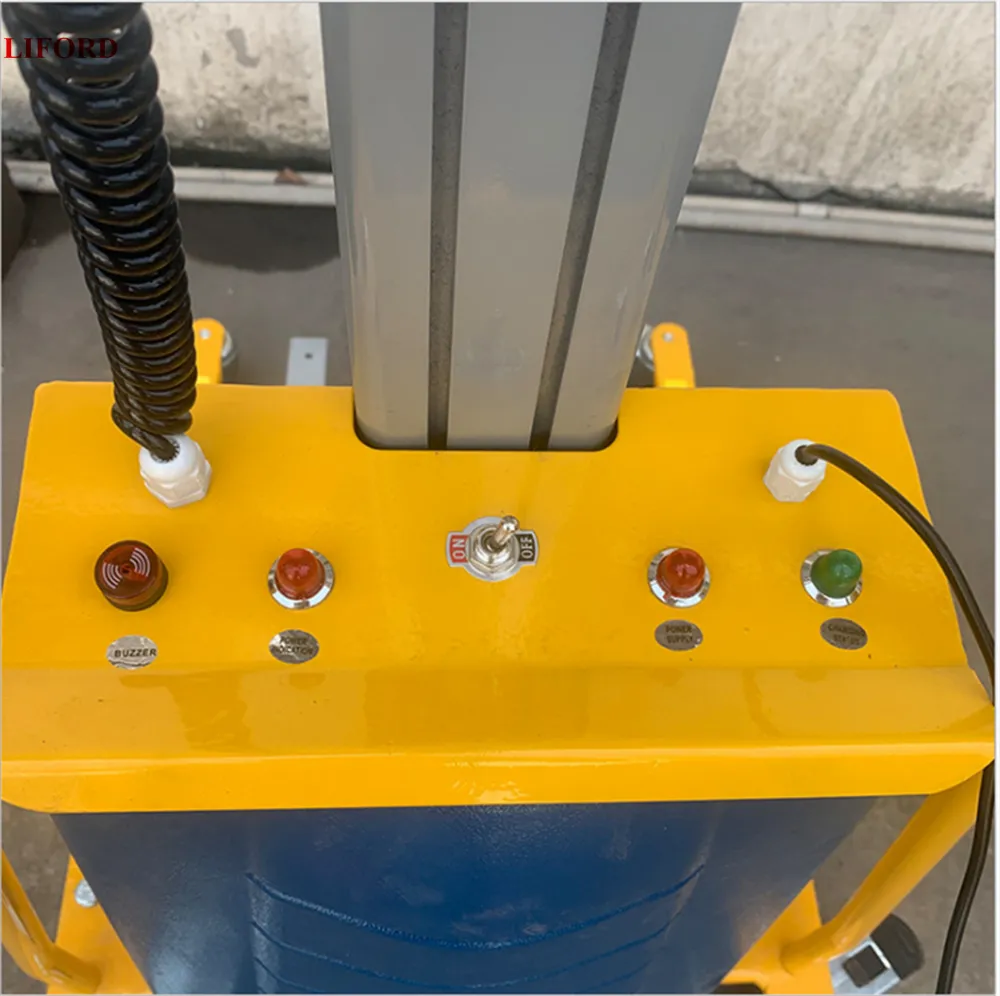

Base Frame
📐

Technical Parameters

Model (Fixed fork type) Unit E100 Stacker E150 Stacker
Drive Type/ElectricElectric
Capacitykg100150
Load Centermm250250
Min. Platform Heightmm130130
Max. Platform Heightmm17001500
Platform Size (L*W)mm600*470600*470
Front Wheel (PU)mmØ 75*30Ø 75*30
Rear Wheel (PU)mmØ 125*40Ø 125*40
Pump Station Powerkw0.80.8
BatteryAh/V12/2412/24
Min. Steering Radiusmm900900
Overall Size (L*W*H)mm870*600*1990870*600*1790
Net Weightkg6663

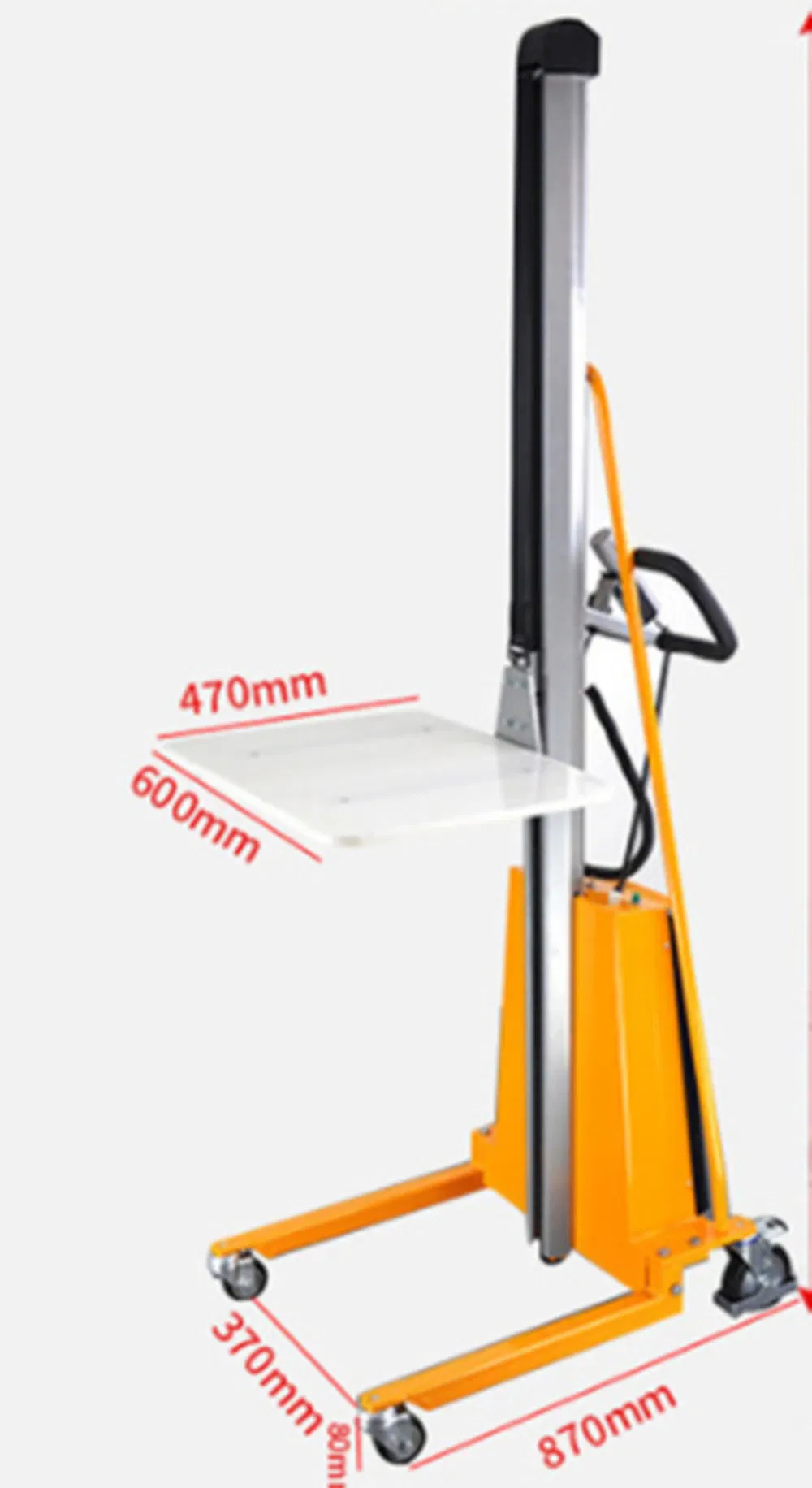

Dimension Drawing
⭐

Why Choose Our Solutions?

  • Professional experience in material handling systems.
  • Fast production & in-time delivery to keep your projects on schedule.
  • One-stop custom OEM/ODM services tailored to specific needs.
  • 100% inspection of all finished products before shipment.
  • Robust packaging solutions (Reinforced cartons for air, strong pallets for sea).
  • One-year warranty period with essential spare parts provided.
Production Quality
Packaging Detail
❓

Frequently Asked Questions

1. What is the maximum lifting capacity of these stackers?
We offer two primary models: the E100 with a 100kg capacity and the E150 with a 150kg capacity.
2. How high can the platform reach?
The E100 model can reach a maximum height of 1700mm, while the E150 model reaches up to 1500mm. Both have a minimum height of 130mm.
3. Is the battery easy to maintain?
Yes, these stackers use maintenance-free batteries equipped with a digital power display and a low-voltage alarm for easy monitoring.

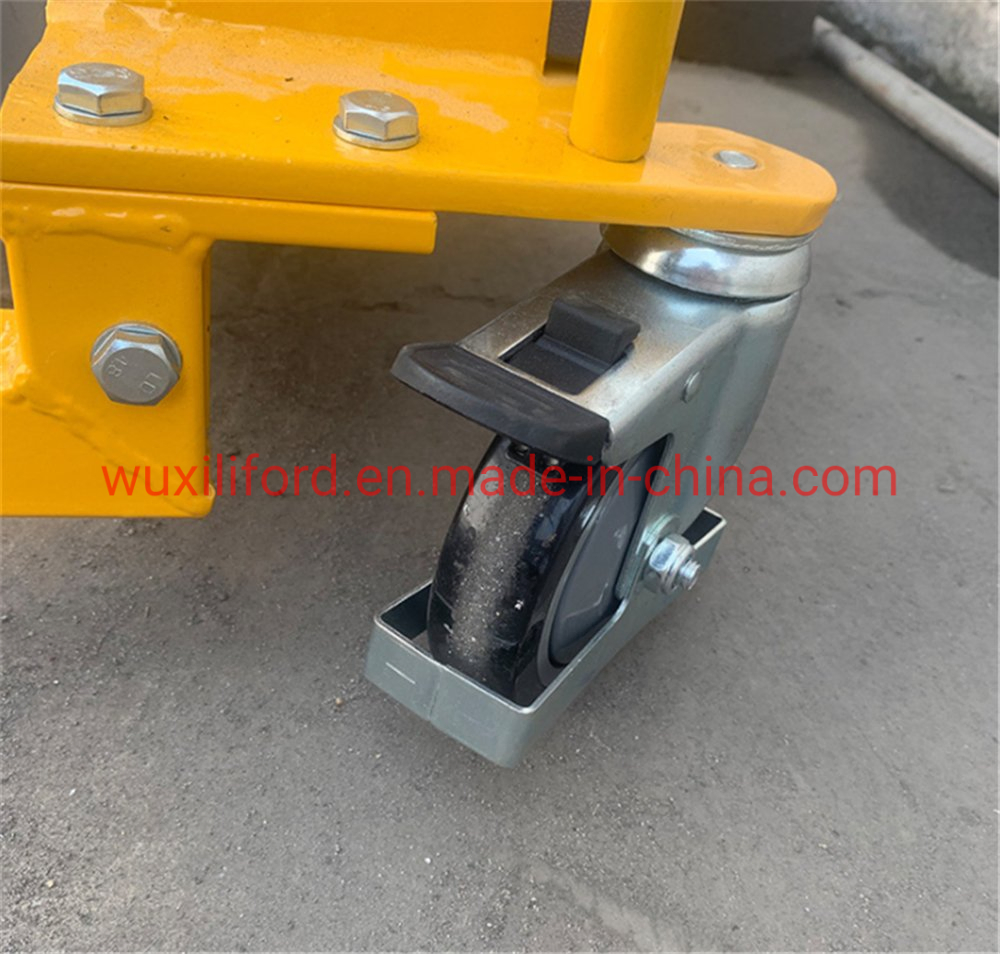

4. What type of wheels are used?
The stackers are equipped with high-quality PU (Polyurethane) wheels: Ø 75*30mm for the front and Ø 125*40mm for the rear.
5. Are these machines compliant with international safety standards?
Absolutely. Our electric stackers are designed and manufactured in accordance with EN1757 European standards and are CE certified.
6. Can I get a customized platform?
Yes, we provide OEM/ODM services and can design non-standard parts and platforms to meet your specific application requirements.
