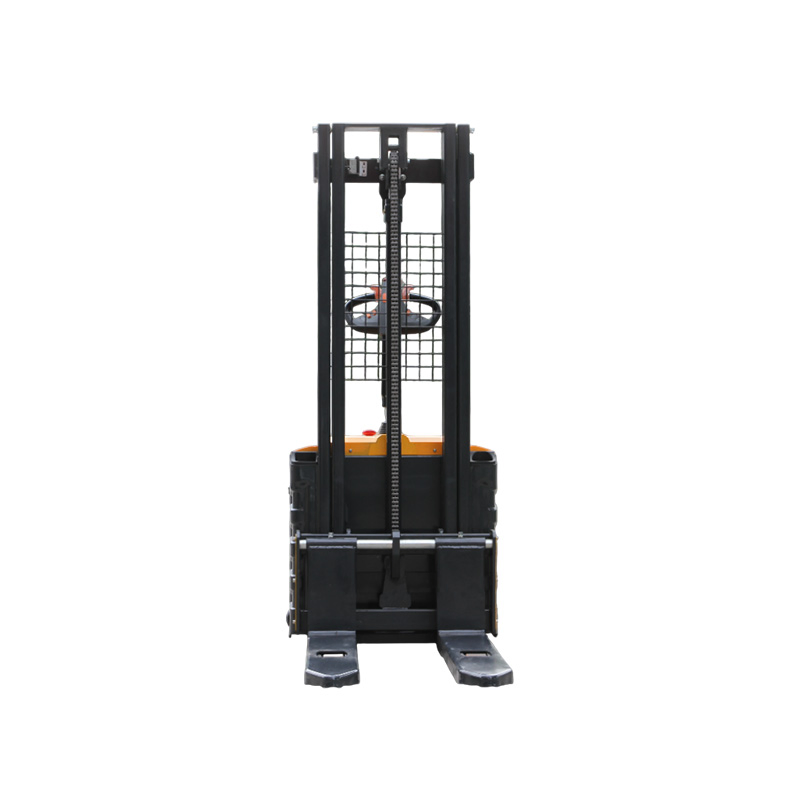

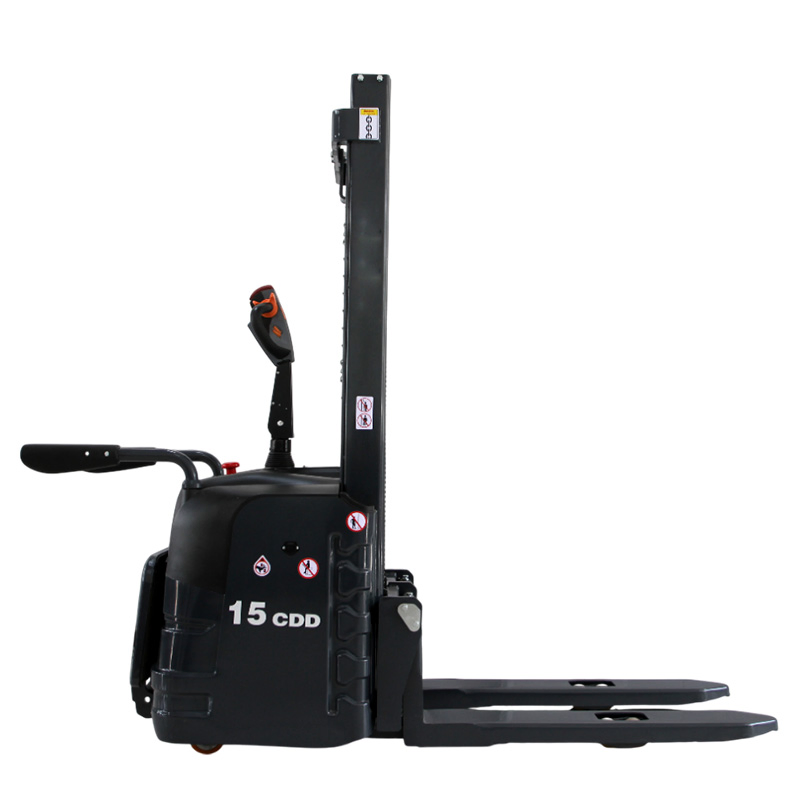

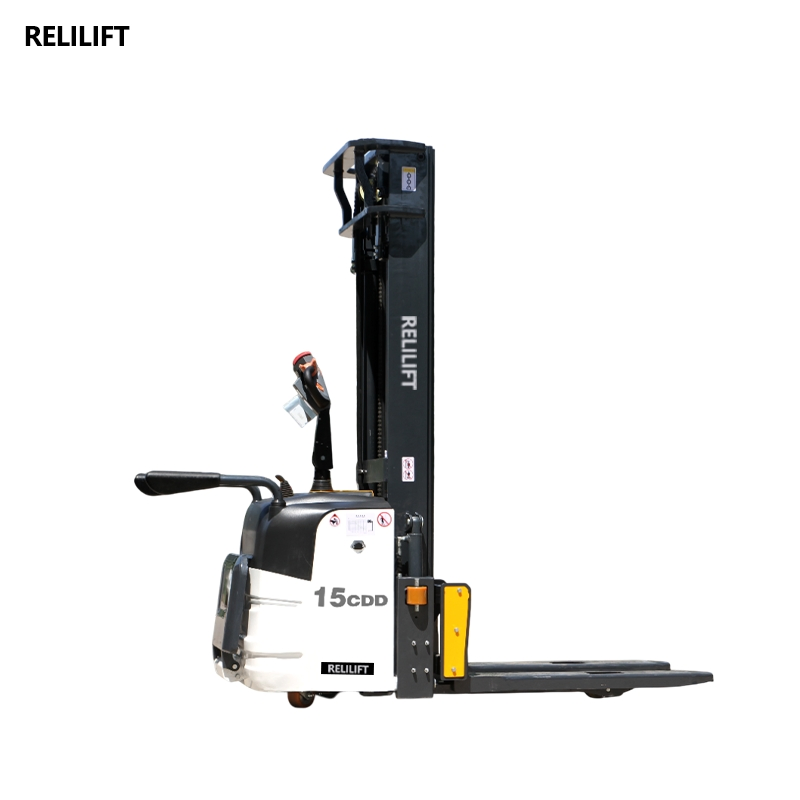

Standing Operation Full Life Small Pallet 1.5ton Electric Walkie Electric Reach Stacker

1 / 5

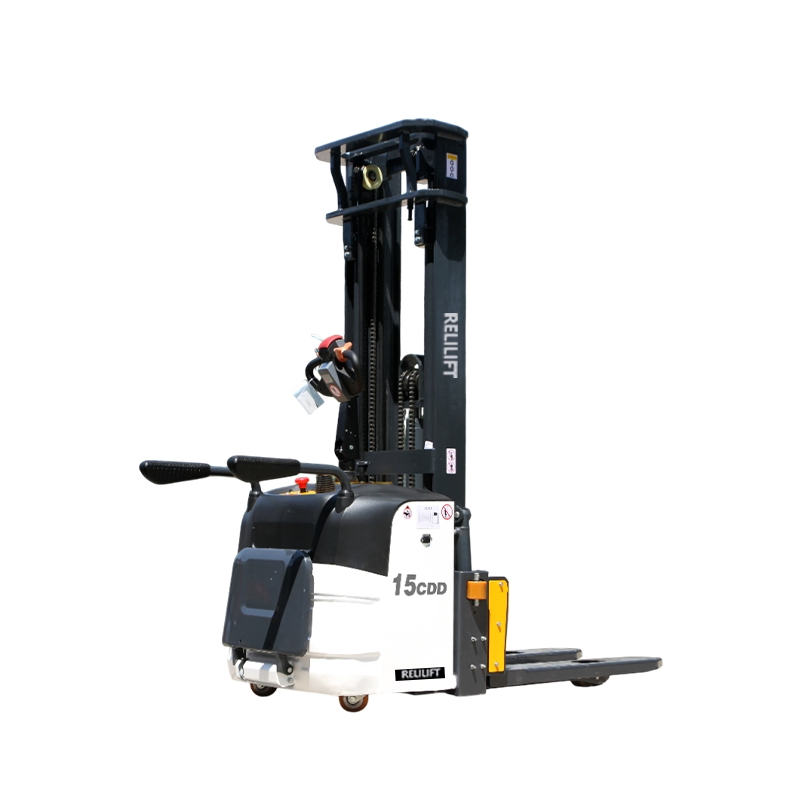

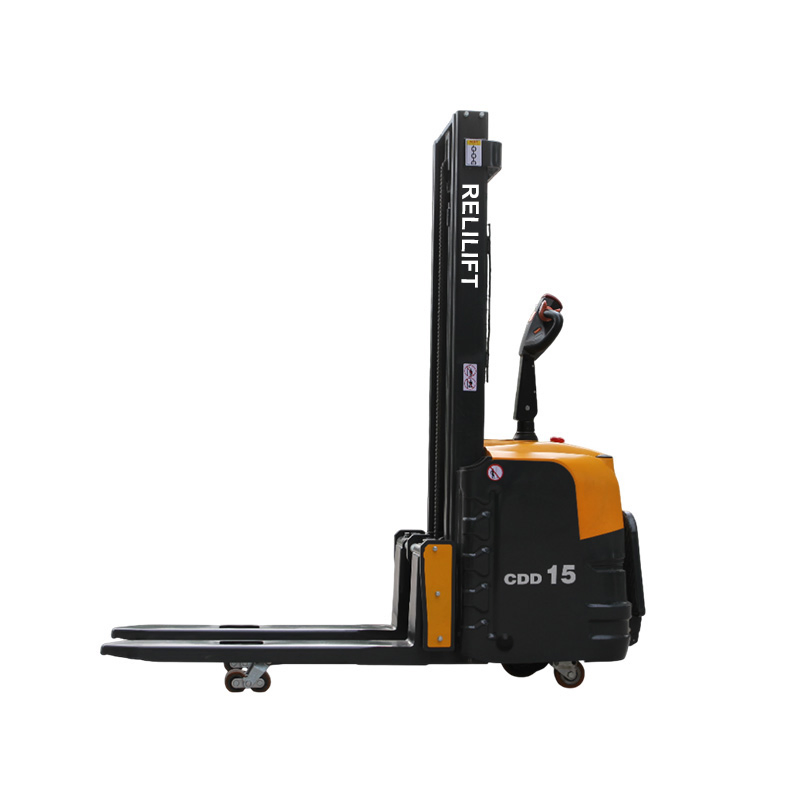

Standing Operation Full Life Small Pallet 1.5ton Electric Walkie Electric Reach Stacker

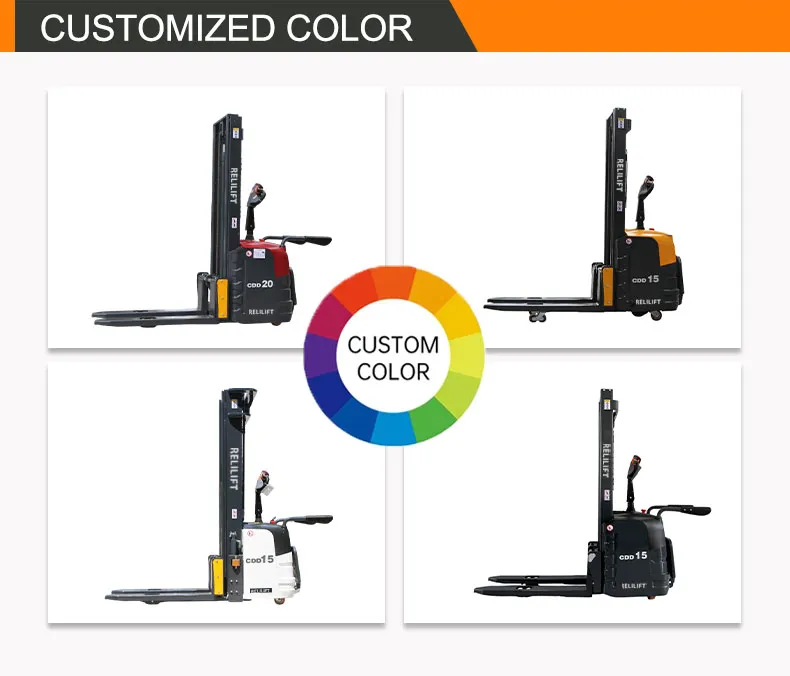

Customization:	Available
After-sales Service:	Full Life
Warranty:	1 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CDD15

Type

Stacker

Power

DC Motor

Load Capacity

1.5ton

Fuel

Electric

Lift Height

2000-4000mm

Load Center

500mm

Fork Length

1150mm

Operating Mode

Standing Operation

Battery

Lead-Acid 48V32ah

Tyre Type

Polyurethane

Condition

New

⚙️ Product Description

Our 1.5T Electric Stacker Truck is a high-performance material handling equipment designed for efficient, safe, and cost-effective cargo stacking, loading, and unloading in warehouses, logistics centers, manufacturing plants, and retail facilities. With advanced electric drive technology, ergonomic design, and reliable structural components, it ensures smooth operation and long-term durability, helping you optimize workflow and reduce labor costs.

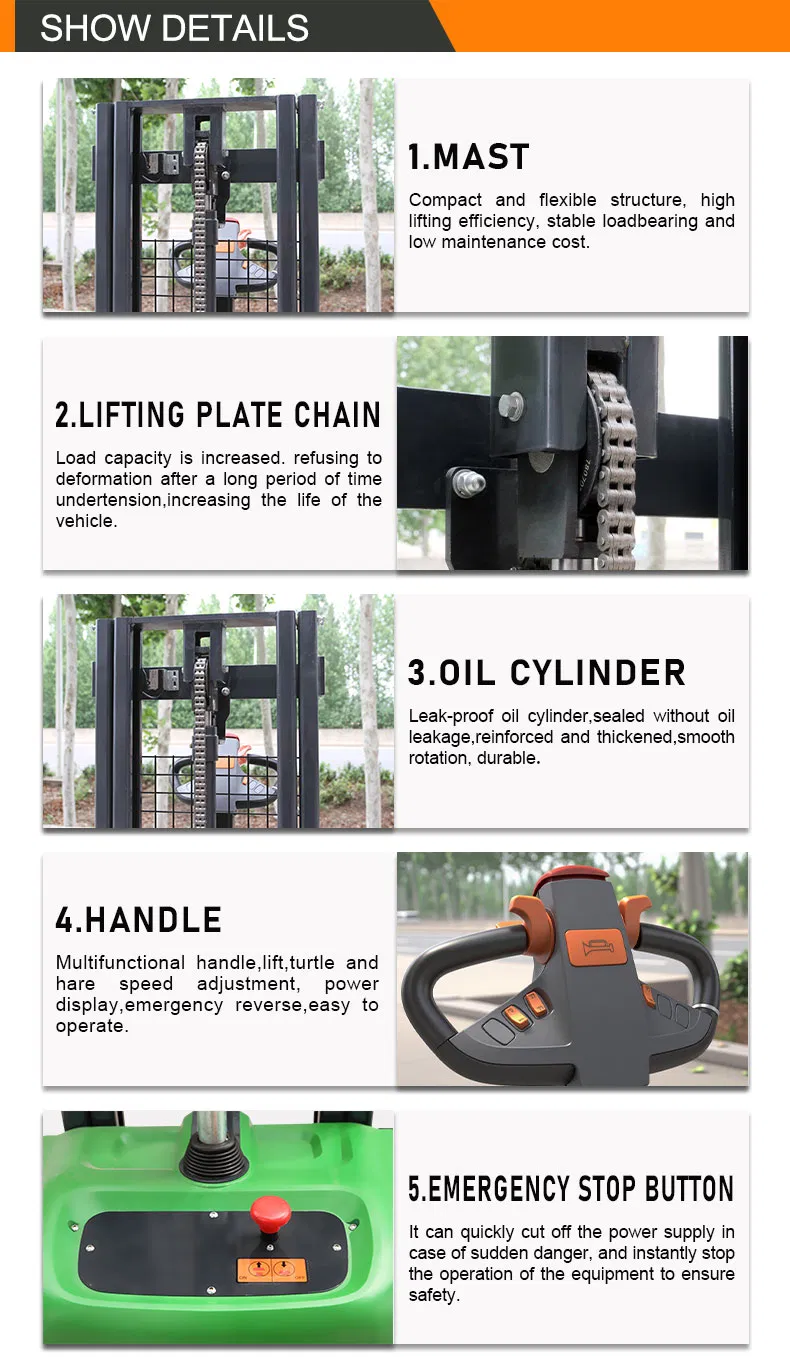

Core Advantages

✔

Strong Load Capacity: Rated load of 1500kg, with a maximum lifting height up to 3500mm (customizable up to 4500mm).

✔

Efficient Electric Drive: High-torque DC motor provides fast lifting speed and stable traveling speed, reducing noise and energy consumption.

✔

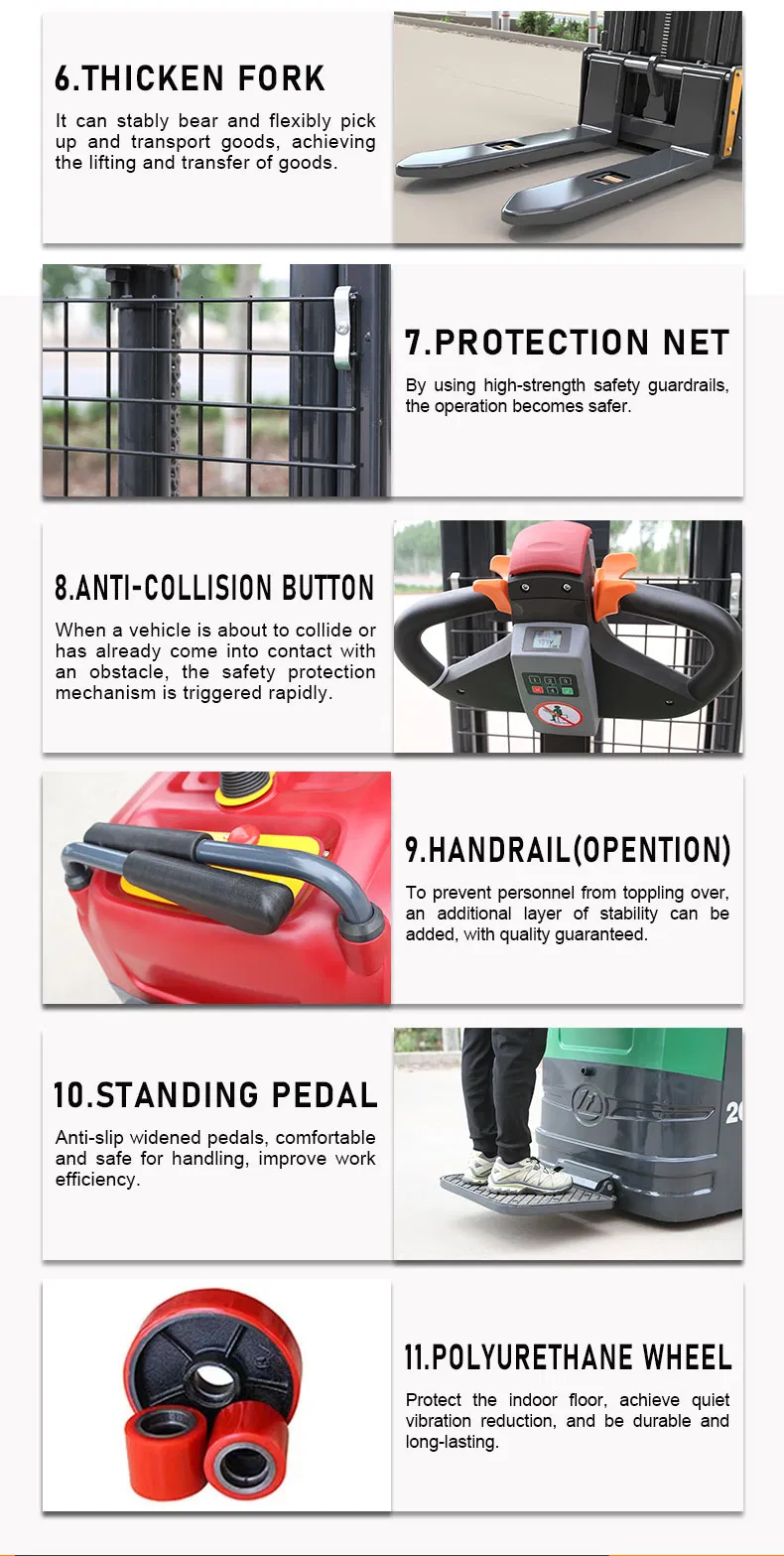

Enhanced Safety: Includes emergency stop button, overload protection, anti-slip tires, and stable triangular chassis design.

✔

Ergonomic Operation: Integrated control buttons on handle for easy one-hand operation; compact design for narrow aisles.

✔

Low Maintenance: Long-life sealed battery (8-10 hours work per charge) and wear-resistant parts.

📏 Technical Specifications

Feature	Parameter	Unit	Value
Power Type	Battery	-	Electric
Load Capacity	Q	kg	1500
Load Center	c	mm	500
Axle Distance	y	mm	1100
Lifting Height	h3	mm	2000 / 2500 / 3000 / 3500
Self Weight	With Battery	kg	540 - 630
Overall Length	l1	mm	2020
Overall Width	b1	mm	820
Min. Turning Radius	Wa	mm	1600
Travel Speed	Loaded/Unloaded	km/h	3.7 / 4.0
Lifting Speed	Loaded/Unloaded	m/s	0.08 / 0.135
Battery Voltage	Capacity	V/Ah	48V / 32ah

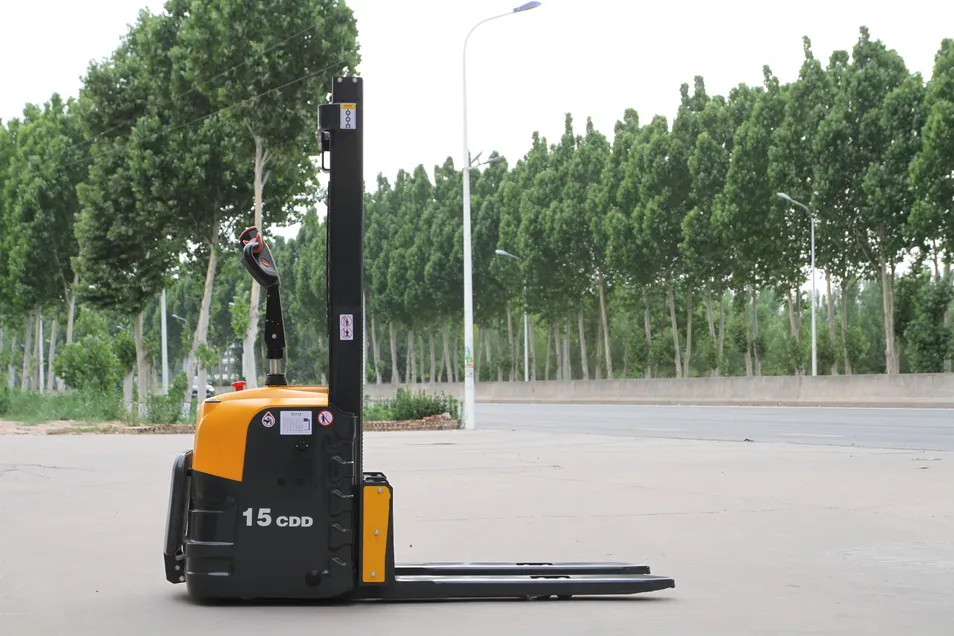

🏭 Applications & Details

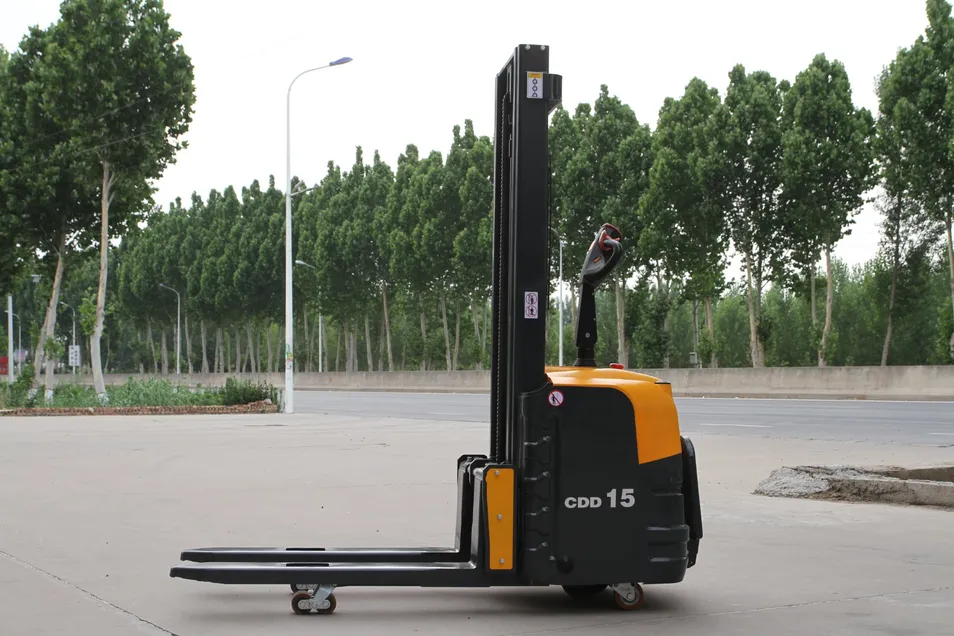

Ideal for warehouses, logistics centers, manufacturing plants (moving raw materials like steel coils or finished products), and food/pharmaceutical industries requiring zero-emission handling.

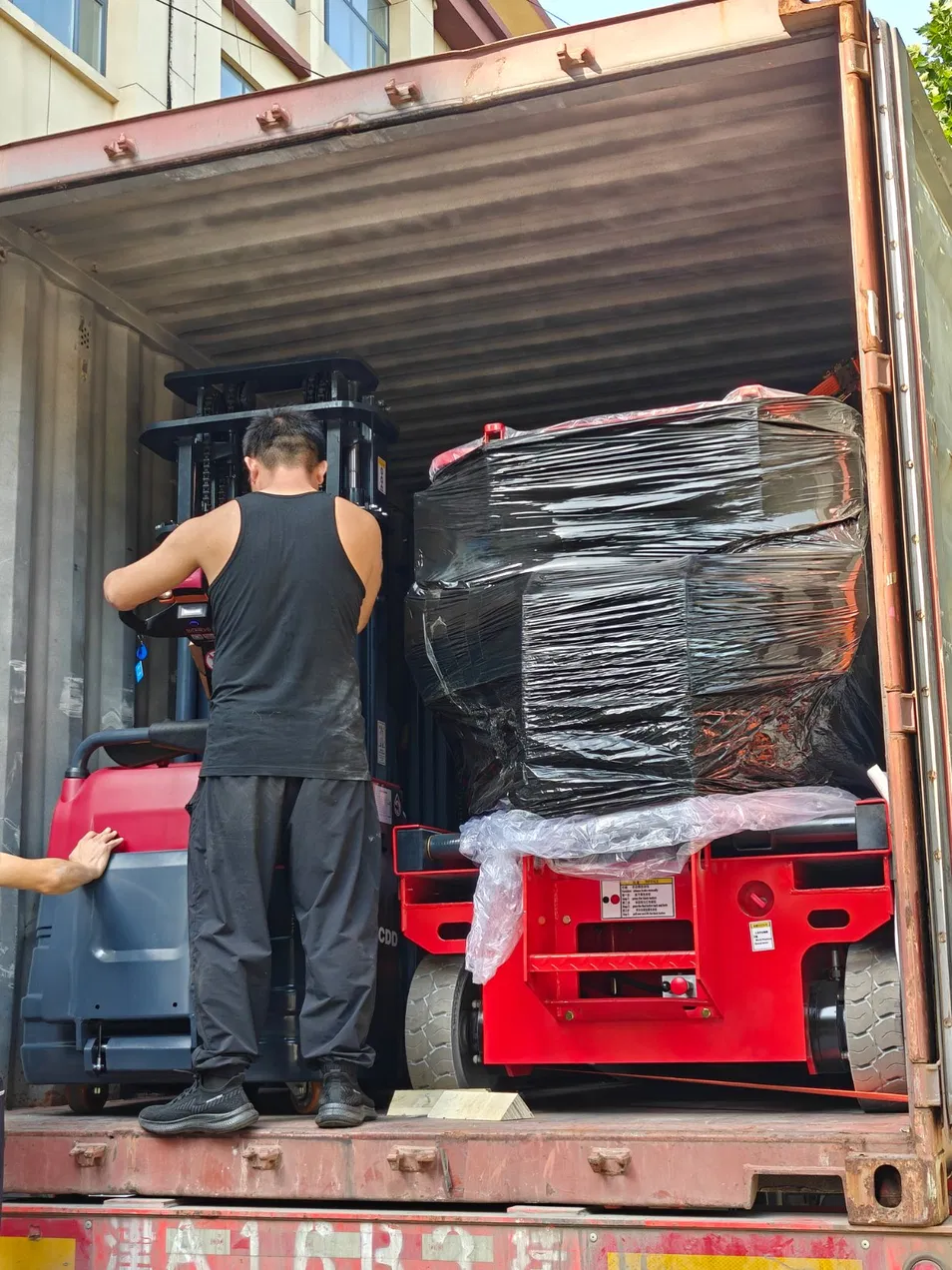

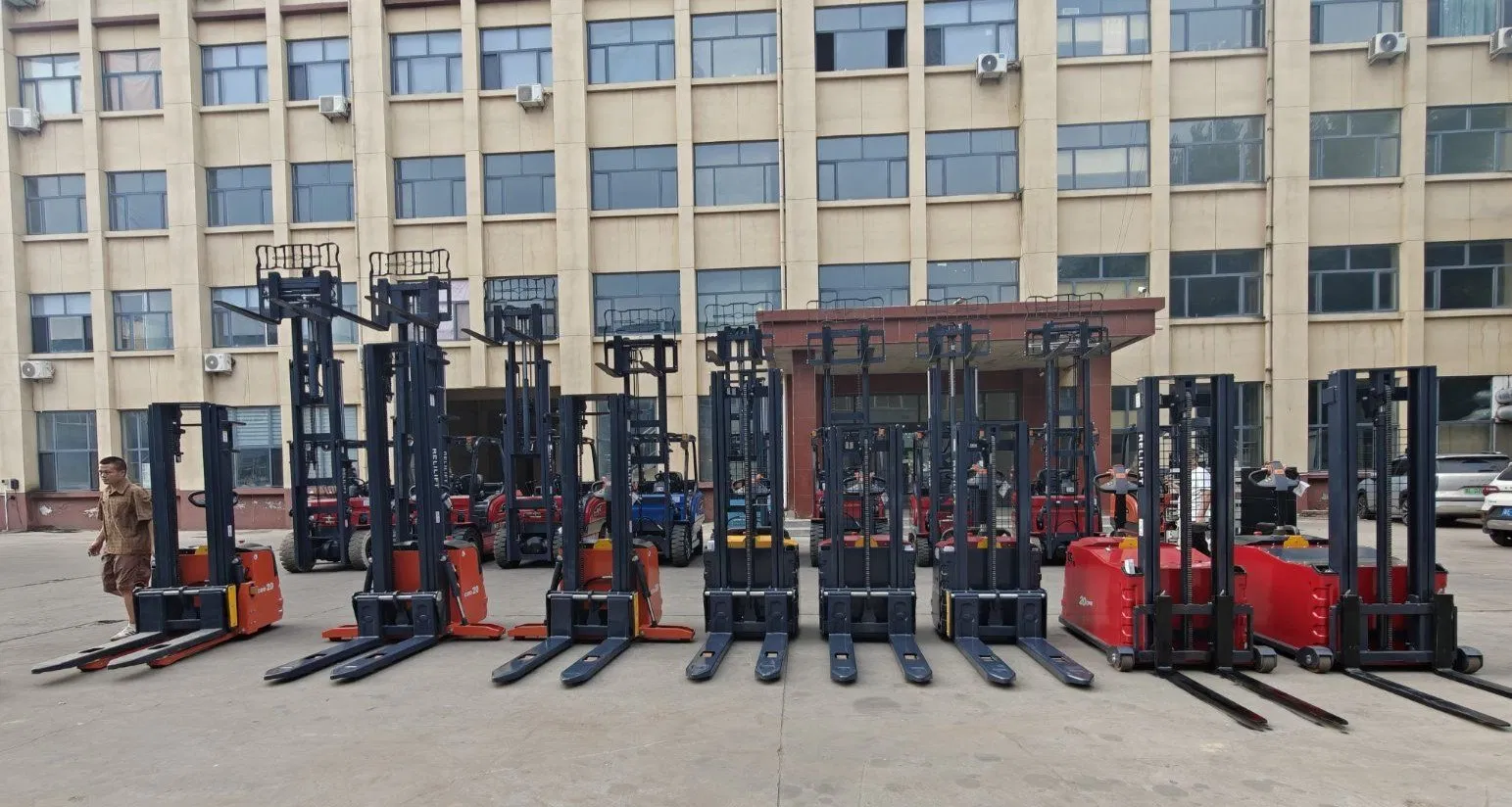

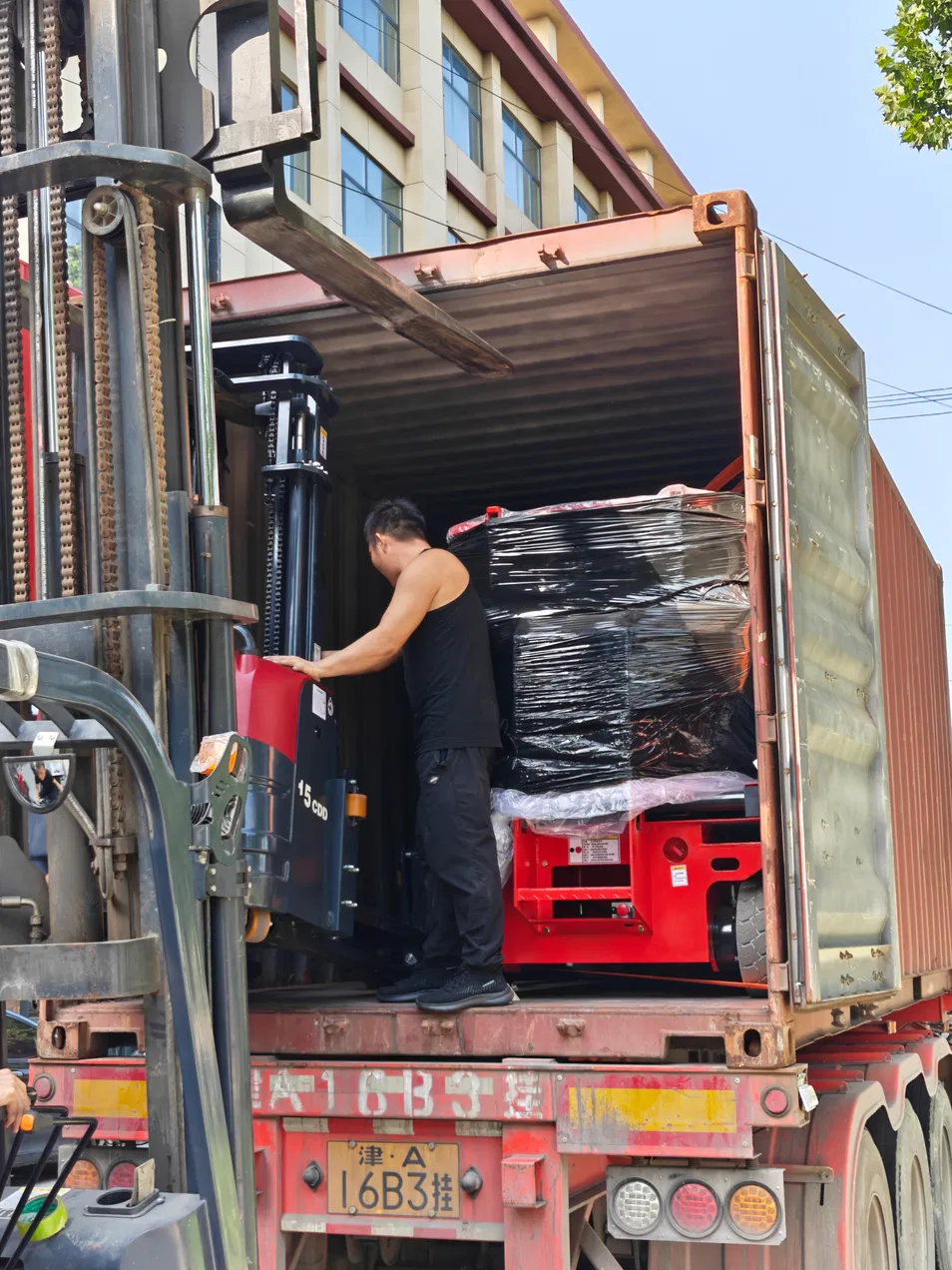

📦 Packaging & Delivery

Package Size

195.00cm * 82.00cm * 200.00cm

Gross Weight

500.00kg

Transport Option

Wooden Case for Option

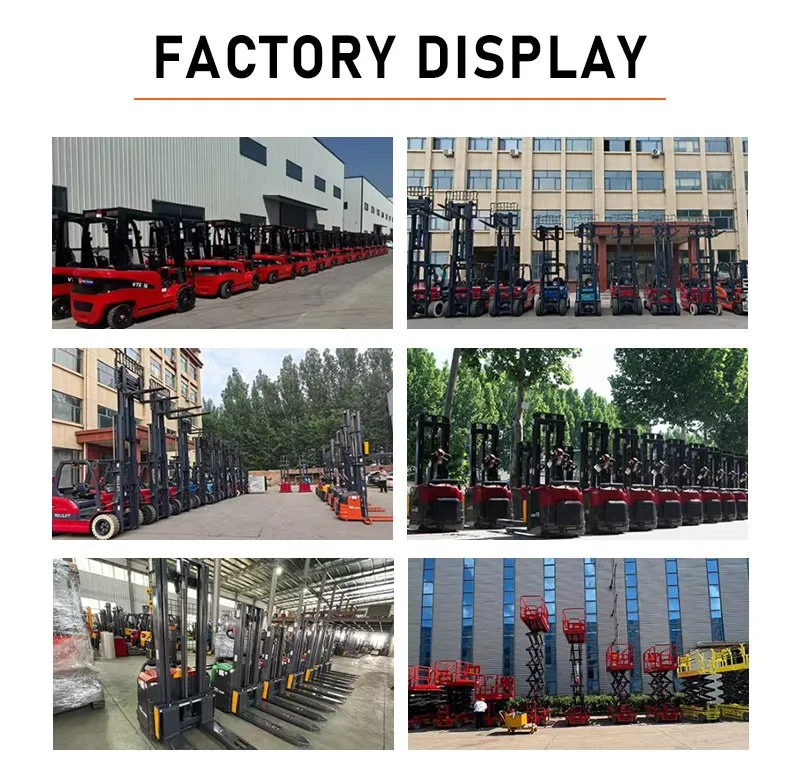

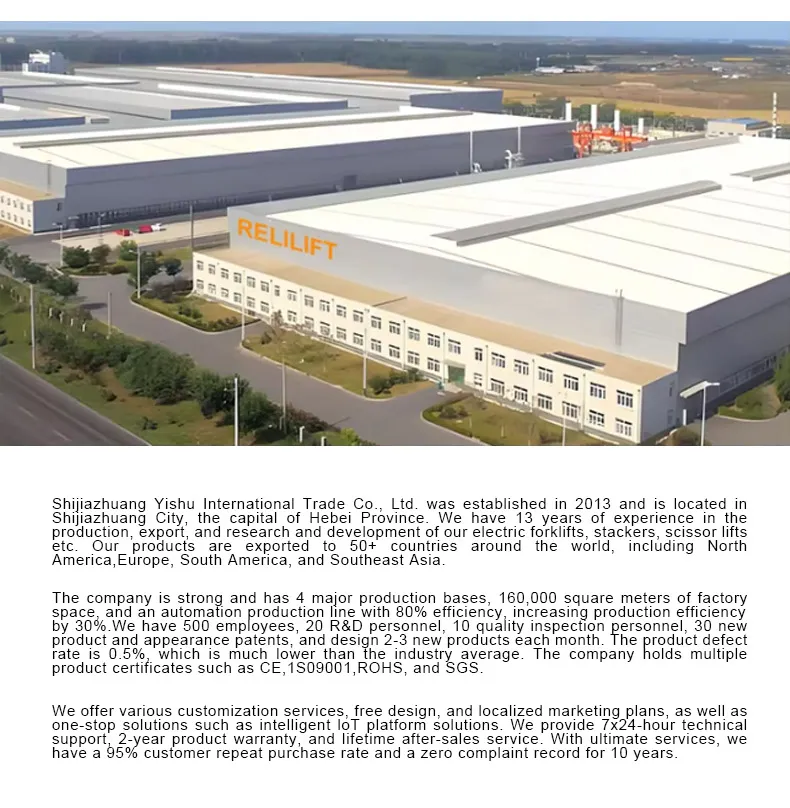

🏢 Factory & Production Display

Frequently Asked Questions

What is the typical lead time for a forklift?

Lead time for standard configuration stock units is usually 1-2 weeks. For custom configurations or special requirements, it is approximately 4-8 weeks.

How long is the delivery time?

Generally it is 5-10 days if the goods are in stock. If not in stock, it typically takes 15-20 days depending on the quantity ordered.

What are the terms of payment?

Our standard terms are 50% T/T payment in advance, with the remaining balance due before shipment.

Do you provide installation services and guidance?

Yes, we offer remote installation guidance and free accessory delivery within the scope of the contract.

What is the warranty period for this electric stacker?

Our forklifts and electric stackers come with a standard one-year warranty.

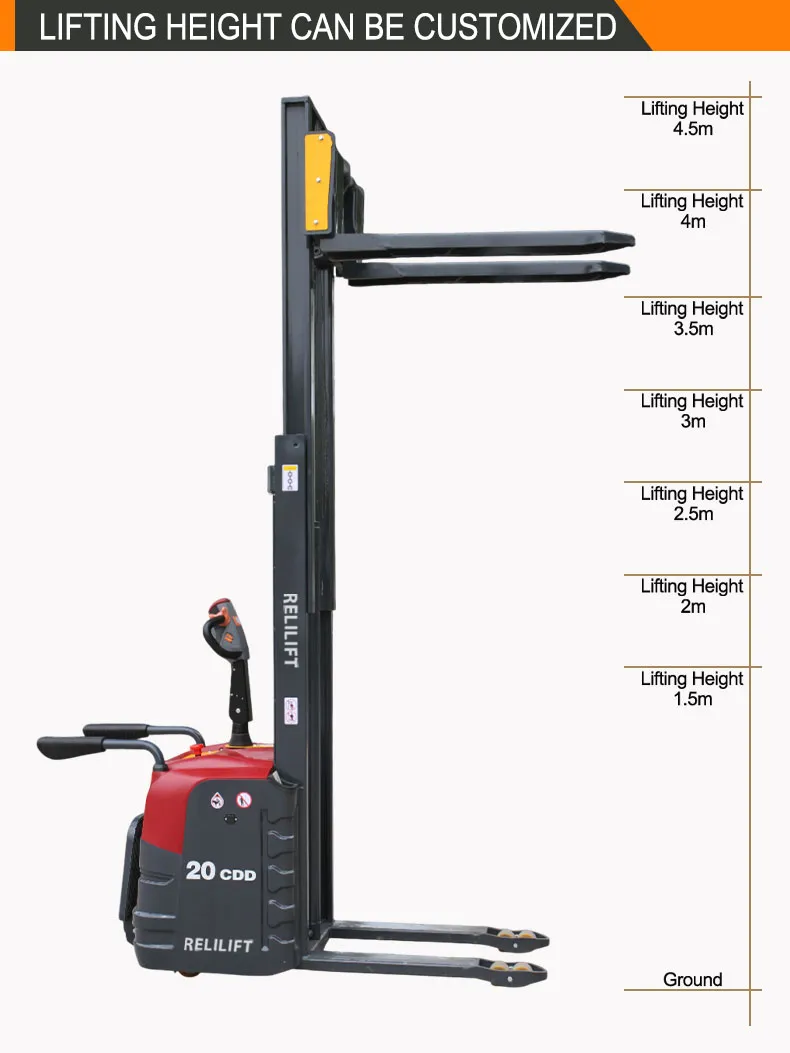

Can the lifting height be customized?

Yes, while the standard maximum lift is 3500mm, we can provide customized solutions up to 4500mm based on your requirements.
